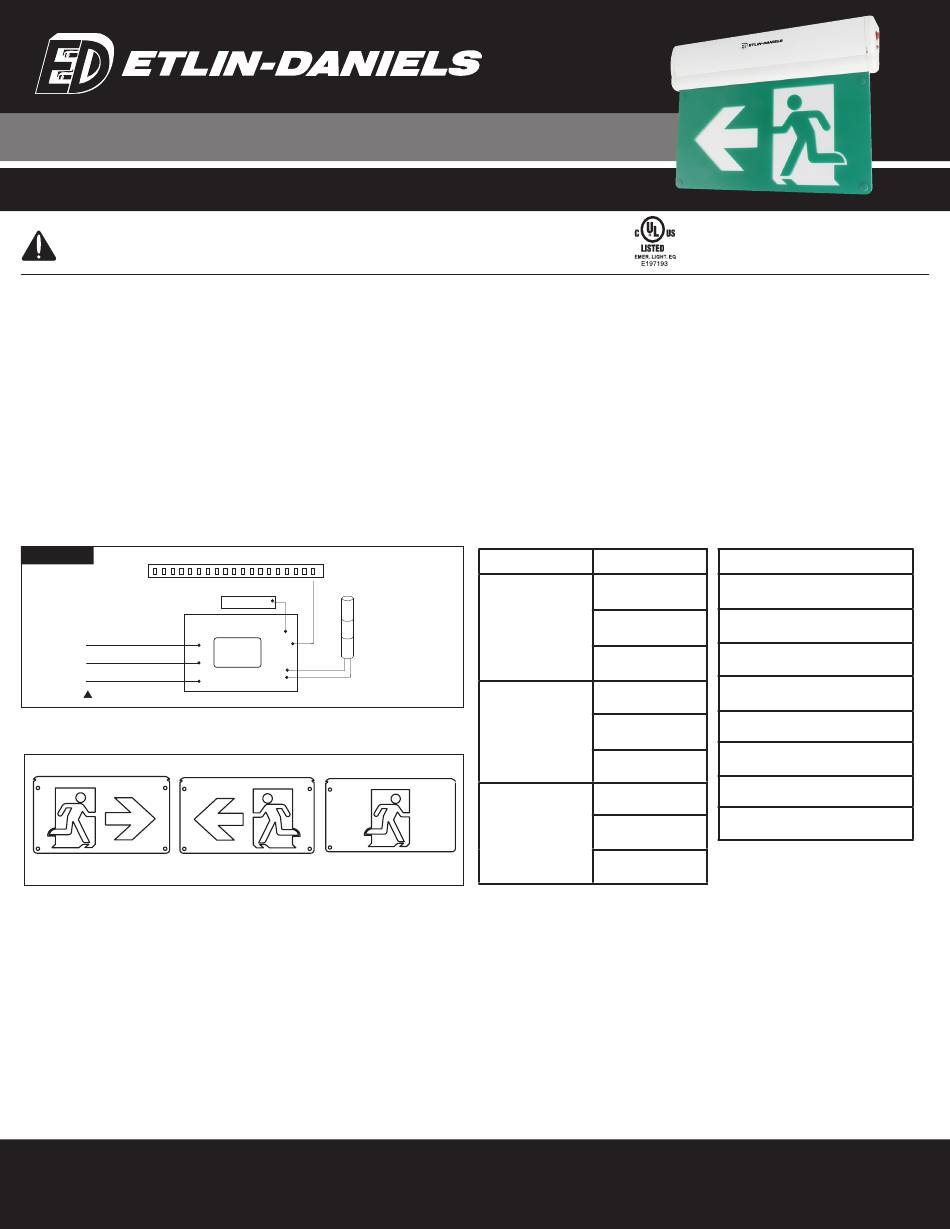

Etlin-Daniels EE300WH-A13BB-GU Installation Manual

INSTALLATION MANUAL FOR EE300WH-A13BB-GU / LED RUNNING MAN EDGE LIT EXIT SIGN
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
WARNING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Review the diagrams thoroughly before beginning.
• All electrical connections must be in accordance with local codes, ordinances and the
National Electric Code.
• Disconnect power at fuse or circuit breaker before installing or servicing.
• Do not use outdoors.
• Do not mount in hazardous locations or near gas or electric heaters.
• Do not let power cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where it will not be subject to
tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by the manufacturer.
• Do not use this equipment other than intended use.
• All servicing should be performed by qualified personnel only.
• Allow battery to charge for 24hrs before first use.
WIRING DIAGRAM
SP
AC Wiring
Working voltage :
AC120V -347V 50Hz/60H z
Black Wire (L)
White Wir e (N)
Green Wir e (G/E)
Input AC cable
FACE PLATE TYPES
OPERATION
1. AC only & AC/DC models - Sign will illuminate when supplied with power.
2. Internally Self-Powered models only.
3. To Test, depress the TEST Switch. The AC indicator will go out and the LEDs will switch to
battery power.
4. Release the TEST Switch. The LEDs will switch back to AC power and the
AC indicator will come on.
LED Strip
Test Red led
Transforme r
MAI N PCBA
Batter y
Fo r batter y
Red(+) /Black(-)
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104 ·
Toll Free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - sales@etlin.com
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT
IN DEATH, SERIOUS INJURY OR SIGNIFICANT PROPERTY DAMAGE. For your
protection, read and follow these warnings and instructions carefully before
installing or maintaining this equipment.
WARNING: RISK OF ELECTRIC SHOCK - NEVER CONNECT TO, DISCONNECT FROM, OR
SERVICE WHILE EQUIPMENT IS ENERGIZED.
WARNING: RISK OF FIRE. Lamps are hot. Keep combustible material away from hot
parts.Observe lamp manufacturer's warnings, recommendations and restrictions
on lamp operation and maintenance. Make sure lamps are correctly installed.
WARNING: DO NOT USE ABRASIVE MATERIALS, OR OTHER SOLVENTS. USE OF THESE
SUBSTANCES MAY DAMAGE FIXTURE, WHICH MAY RESULT IN PERSONAL INJURY.
WARNING: RISK OF PERSONAL INJURY. This product may have sharp edges. Wear
gloves to prevent cuts or abrasions when removing from carton, handling,
installing and maintaining this product.
Models / Input Voltage EE300WH-A13BB-GU
Input Wattage : 3W
AC 120V
Input Current : 0.22A
50 / 60 Hz
Efficiency: 0.98P
Input Wattage : 3.5W
AC 277V
Input Current : 0.015A
50 / 60 Hz
Efficiency: 0.96P
Input Wattage : 4W
AC 347V
Input Current : 0.017A
50 / 60 Hz
Efficiency: 0.96P
IMPORTANT
1. When re-lamping use only lamps specified by the manufacturer.
Using other lamp types may result in transformer damage or cause unsafe conditions.
2. Battery in this unit may not be fully charged. After electricity is hooked up to the unit, let
the battery charge up for at least 24 hours. Then normal operation of this unit should then
take effect.
3. Max. mounting height: 20.77ft (6.33 m)" or the equivalent.
WARNING!
Unused wires must be capped using enclosed wire nuts.
This equipment is furnished witha sophisticated low vol-tage battery dropout circuit to pro-
tect the battery from over- discharge after the useful out-put has been used. Allow 20 hours
recharge time after installation or power failure for full-load testing or usage.
CAN ICES-005 (B) NMB-005 (B)
Electrical Parameters
Working Voltage : 120V - 347V 50Hz / 60Hz
Recharge Time : 24 Hours
Output Wattage: 1W
Plug in LED : SMD2835 * 12 PCS.
NI-CAD BATTERY : 3.6V / 600mAh
Efficiency: 0.96P
Emergency duration: ≥ 120
Product Size : 307 * 173 * 8 / mm
