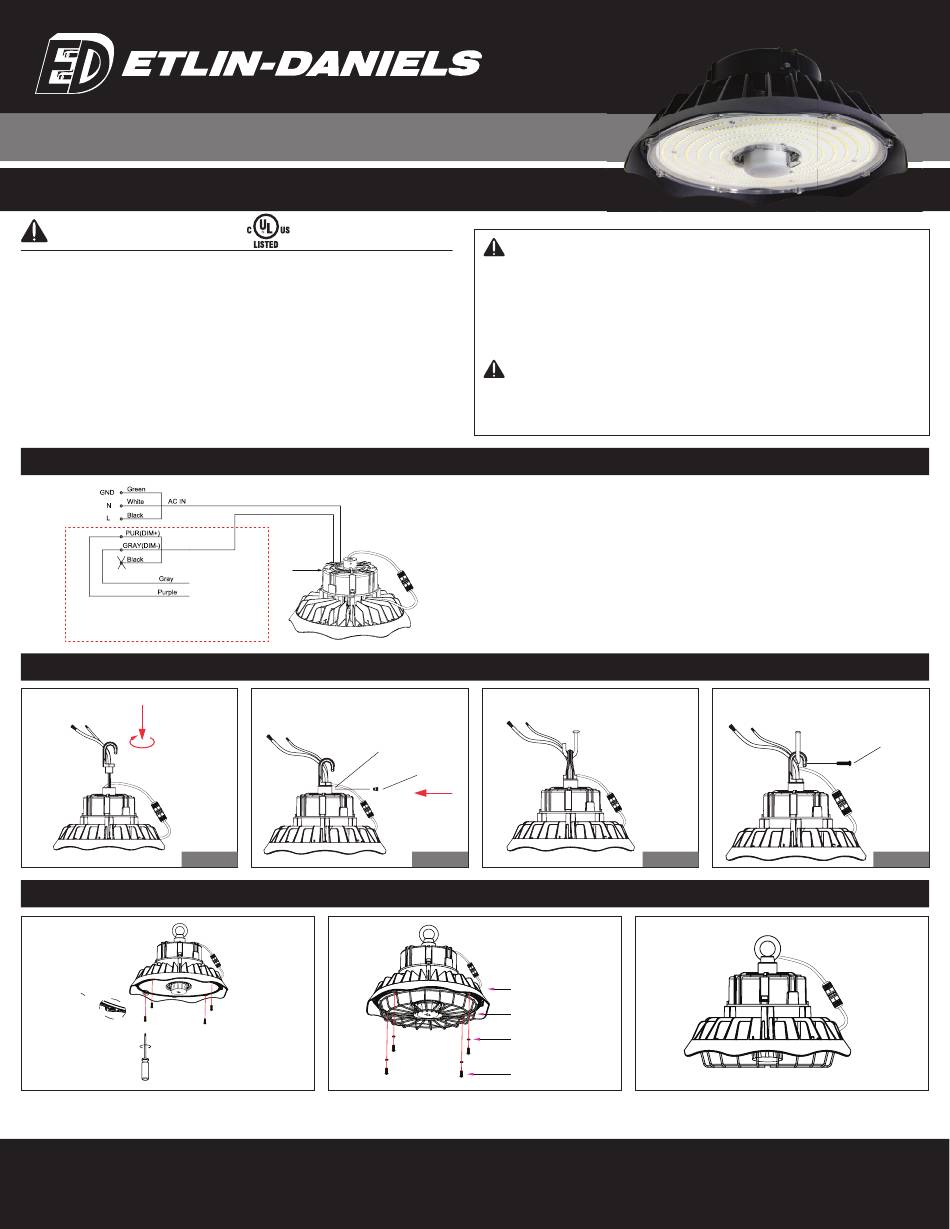

INSTALLATION FOR HBRA7 SERIES ROUND WITH
MICROWAVE SENSOR BASE HIGH BAY
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
WARNING
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION.
• To prevent personal injury or product damage only licensed electricians/personnel should install fixture.
• To avoid electric shock or component damage disconnect power before attempting installation
or servicing.
• This product must be installed in accordance with the National Electric Code (NEC)/Canadian
Electrical Code (CEC) and all applicable Federal, State/Provincial and Local Electric Codes and
Safety Standards.
• Disconnect fixture and allow cooling prior to servicing.
• Any alteration or modification of this product is expressly forbidden as it may cause serious
personal injury, death, property damage and/or product malfunction.
• To prevent product malfunction and/or electrical shock this product must be properly grounded.
Lock the hook
1. Take down the 4 screws which show on the picture.
CAN ICES-005 (B) NMB-005 (B)
driver
Tighten the screw.
REF .1
2. Lock the screws according to the picture.
Head Offi ce - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104
Toll free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - sales@etlin.com
WARNING
• This Round High bay will operate within the following voltage ranges: 120-347V, 50/60Hz.
• If input voltage exceeds this range, it may cause premature LED diode failure. Please ensure operation is within the
specified voltage ranges.
• Ensure ambient operating temperature between -45°C through +45°C.
• Installing the Round High bay in temperatures outside the operating temperature range will reduce the life of the Round High bay.
• Make sure to turn off power during all installation or maintenance processes.
ATTENTION
IP65 Wet Location rated.
• Please keep the Round High bay away from all corrosive substances.
• To clean, please use either a damp or dry cloth.
WIRING CONNECTION
Turn off the power, connect AC wires. Black wire to L, white wire to N,
and green wire to GND.
HOOK MOUNT
Hang up the light.
SCREW HOLE
SCREW
REF .2
WIRE GUARD
Round High Bay
Wire guard
Plastic spacer
Screw
Lock the screw.
REF .3
3. Installation complete.
