ESAB Savage A50Air LUX Instruction Manual And Spare Parts List

ESAB Savage A50Air LUX Instruction Manual And Spare Parts List

Auto darkening welding helmet
Hide thumbs

Advertisement

Quick Links

Download this manual

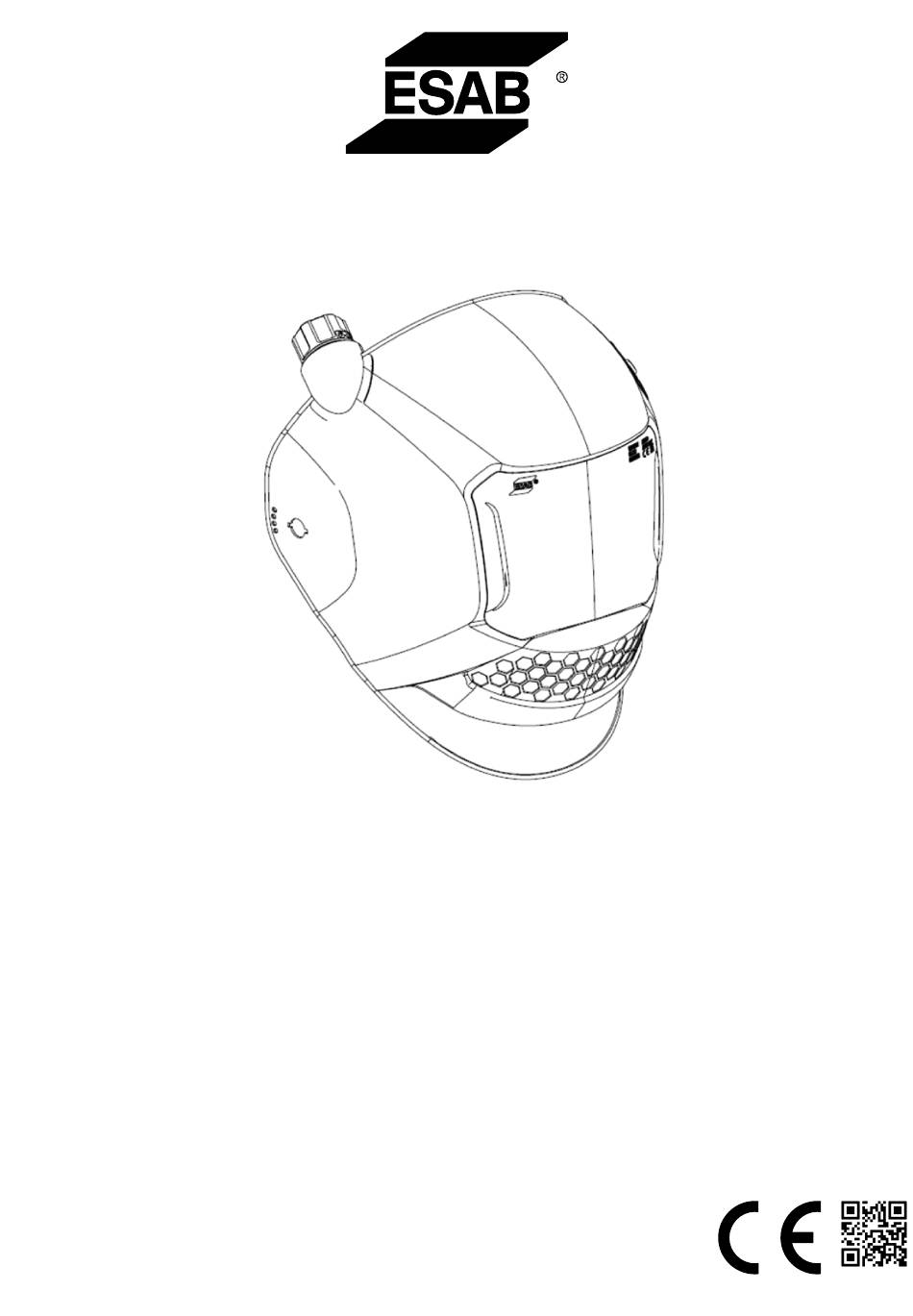

Auto Darkening Welding Helmet
Instruction manual and Spare parts list
PLEASE READ AND UNDERSTAND ALL INSTRUCTION BEFORE USE. RETAIN
THIS MANUAL FOR FUTURE REFERENCE.
Manual Number: 0448 554 001
Revision Date: 2024-11-22
Revision Number: B
Language: English UK
Savage A50Air LUX
Complete User Manual at:

Advertisement

loading
Need help?

Need help?

Do you have a question about the Savage A50Air LUX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESAB Savage A50Air LUX

Summary of Contents for ESAB Savage A50Air LUX

  • Page 1 Savage A50Air LUX Auto Darkening Welding Helmet Instruction manual and Spare parts list PLEASE READ AND UNDERSTAND ALL INSTRUCTION BEFORE USE. RETAIN THIS MANUAL FOR FUTURE REFERENCE. Complete User Manual at: Manual Number: 0448 554 001 Revision Date: 2024-11-22 Revision Number: B...
  • Page 3 ................. Replacing the inside cover lens .............. Replacing the Auto-Darkening Filter (ADF) ................ Replacing the LED work light battery ............Cleaning the auto-darkening welding helmet ........................ TROUBLESHOOTING ............................SPARE PARTS 0448 554 001 - 3 - © ESAB AB 2024...
  • Page 4 The helmet will not protect against severe impact hazards. • The helmet will not protect against explosive devices or corrosive liquids. • Should the helmet not darken upon striking an arc, stop welding immediately and contact ESAB. • Do not immerse the filter in water. •...
  • Page 5 4. Do not weld, cut or perform other hot work until the work piece has been completely cleaned so that there are no substances on the work piece which might produce flammable or toxic vapors. Do not do hot work on closed containers, they may explode. 0448 554 001 - 5 - © ESAB AB 2024...
  • Page 6 3. Do not operate near degreasing and spraying operations. The heat or arc can react with chlorinated hydrocarbon vapors to form phosgene, a highly toxic gas and other irritant gases. 0448 554 001 - 6 - © ESAB AB 2024...
  • Page 7 If using lift forks to move unit, be sure forks are long enough to extend beyond opposite side of unit. • Keep cables and cords away from moving vehicles when working from an aerial location. 0448 554 001 - 7 - © ESAB AB 2024...
  • Page 8 9. The protections corresponding to the code numbers/letter 7, 9, CH are provided by the complete protector only if the respective symbols are equal on both the lens and the frame. 10. Not suitable for driving and road use. 0448 554 001 - 8 - © ESAB AB 2024...
  • Page 9 This product can expose you to chemicals including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after use. For more information, go to www.P65Warnings.ca.gov. 0448 554 001 - 9 - © ESAB AB 2024...
  • Page 10 2   INTRODUCTION INTRODUCTION The Savage A50Air LUX is an auto-darkening welding helmet intended for use in most welding processes including: oxy fuel cutting; plasma cutting; gringding; GMAW (MIG/MAG); GTAW (TIG); PAW-plasma arc welding; SMAW/MMA (stick) processes. ESAB has an assortment of welding accessories and personal protection equipment for purchase.
  • Page 11 2   INTRODUCTION Respiratory certifications The Savage A50 LUX helmets, when used in accordance with the manufacturers instructions and the ESAB EPR-X1 (0700500900) or EPR-X1.1 Air blower unit (0700500920), conforms to the following respiratory standard: EN12941 1998+ A2:2008 TH3P Module B Notified Body: Vyzkumny ustav bezpecnosti prace, v. v. i., Jeruzalemska 1283/9, 110 00...
  • Page 12 -10 ℃ to 65 ℃ (14 ℉ to 149 ℉) Storage temperature range -20 ℃ to 85 ℃ (-4 ℉ to 185 ℉) Approvals CE (EN ISO 16321-1:2022 and EN ISO 16321-2:2021); ANSI Z87.1; CSA Z94.3; AS/NZS 1338.1 0448 554 001 - 12 - © ESAB AB 2024...
  • Page 13 6 or 8 Heavy Oxygen cutting Under 1 Under 25 3 or 4 Light 1 to 6 25 to 150 4 or 5 Medium Over 6 Over 150 5 or 6 Heavy 0448 554 001 - 13 - © ESAB AB 2024...
  • Page 14 These values apply where the actual arc is seen. Experience has shown that lighter filters may be used when the arc is hidden by the workpiece. Data from ANSI Z49.1-2005 0448 554 001 - 14 - © ESAB AB 2024...
  • Page 15 3) Slide back the cover after the battery is installed. 4) Insert the screw and tighten. Installing the magnifying lens 1) Slide the magnifying lens down into the magnifier frame on the backside of the Auto-Darkeing Filter (ADF). 0448 554 001 - 15 - © ESAB AB 2024...
  • Page 16 With the air duct of the product, the user must ensure that the face seal elastic is in contact with the user’s face and in front of the user’s ears and not covering them. 0448 554 001 - 16 - © ESAB AB 2024...
  • Page 17 4) Make sure that the head cover is pulled down as far as possible at the back of the head. 5) If necessary, get help from another person to ensure best-fit and minimal gaps. 6) Airflow can be adjusted by rotating adjusting guide. 0448 554 001 - 17 - © ESAB AB 2024...
  • Page 18 Auto-Darkeing Filter (ADF) control panel. This will switch the shade mode between shade bank 5-8, shade bank 9-13, or grind. 2) Select the shade range between shade bank 5-8 or shade bank 9-13. 0448 554 001 - 18 - © ESAB AB 2024...
  • Page 19 Selecting cut mode Cut mode allows the Auto-Darkeing Filter (ADF) to remain activated at shade 5. The ADF will not return to a light state while this mode is active. 0448 554 001 - 19 - © ESAB AB 2024...
  • Page 20 The LED work light automatically turns off during welding activity or when the ambient light is high. Press the button again to turn the LED work light off. 0448 554 001 - 20 - © ESAB AB 2024...
  • Page 21 Use only ESAB original spare and wear parts. NOTE! Regular maintenance is important for safe and reliable operation. ESAB recommends a use period of five years. The duration of use depends on various factors such as use, cleaning, storage and maintenance. Before each use: •...
  • Page 22 2) Open the battery compartment and replace with a fresh AA alkaline battery. Cleaning the auto-darkening welding helmet NOTE! Do not use strong cleaning solutions. 1) Clean the helmet by wiping with a soft, dry cloth. 2) Clean the cartridge surfaces regularly. 0448 554 001 - 22 - © ESAB AB 2024...
  • Page 23 Ensure the protective film has been removed outer cover lens from the outer cover lens before first use. Welding helmet Headgear is not properly Readjust the headgear. slips adjusted Headgear is damaged Replace the headgear. 0448 554 001 - 23 - © ESAB AB 2024...
  • Page 24 Savage A50AirLUX Halo Headgear Assembly (Including sweatbands) 0700600960 Savage A50Air LUX face seal 0700600869 Savage A50LUX Front Sweat Band (forehead) with ESAB Logo 0700500961 Savage A50LUX Magnifying Glass +1.0 Diopter 0700500962 Savage A50LUX Magnifying Glass +1.5 Diopter 0700500963 Savage A50LUX Magnifying Glass +2.0 Diopter 0700500964 Savage A50LUX Magnifying Glass +2.5 Diopter...
  • Page 25 APPENDIX 0448 554 001 - 25 - © ESAB AB 2024...
  • Page 26 ESAB AB ESAB Corporation ESAB Holdings Ltd Lindholmsallén 9 2800 Airport Road 322 High Holborn Box 8004 Denton, TX 76207 WC1V 7PB 402 77 Gothenburg London, Great Britain Sweden Phone +1 800 378 8123 Phone +44 (0) 1992 768515 Phone +46 (0) 31 50 90 00 For contact information visit http://esab.com...
