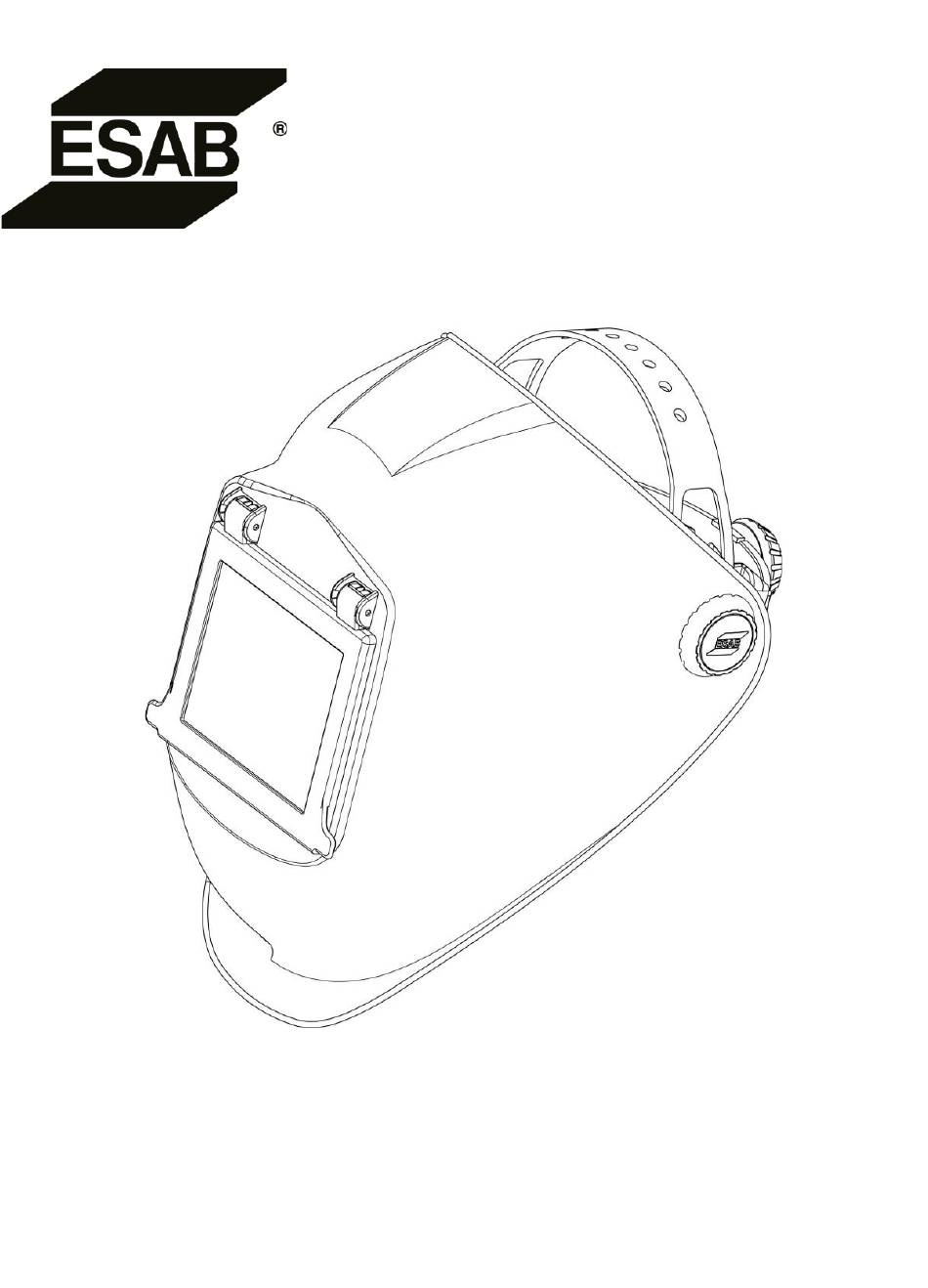

- Page 1 Welding Helmet...
-
Page 2: Safety Warnings - Read Before Using
WARNING! Before using the helmet for welding, ensure that you have read and understood the safety instructions. Information manual for the F20 welder protective helmets comply with Para 1.4 of Appendix II of the EC Regulations. F20 helmets offer permanent protection against UV/IR rays, also face and eye protection from sparks caused by the welding process. -
Page 3: Range Of Application
WARNING! Before using the helmet for welding, ensure that you have read and understood the safety instructions. ESAB welding helmets can be used for the majority of the arc welding applications and for TIG where stated. The welding lens provide protection against harmful UV- and IR-radiation according to the requirement for shade number marked on each passive glass model;... -
Page 4: Preparation And Operation
PREPARATION & OPERATION ESAB F20 welding helmets are fully assembled and ready to be used after minor adjustments. All welding helmets are equipped with a comfortable headgear that can be adjusted in four different ways: • Push and move to adjust the “Head height”... - Page 5 Follow the same procedure to replace the protective lens installed on the welding shell, simply remove the lens buckle that hold the cover lens from the inside part of the shell and replace with a suitable ESAB part. See Image below...
-
Page 6: Product Marking
PRODUCT MARKING Product marking Welding shell marking: ESAB EN175 Producer Applicable EU standard Mechanical strength at 45 m/sec EC conformance mark Mineral glass marking: ESAB Shade number Producer Optical classification EC conformance mark Protection lens marking: ESAB Producer Optical classification... - Page 7 PARTS LIST & ASSEMBLY F20 ITEM DESCRIPTION PART NO. Shell F20 0700 000 509 Visor Flip 60x110 0700 000 510 Visor Flip 90x110 0700 000 511 Front Cover Lens F20 60x110 0160 307 001 Front Cover Lens F20 90x110 0160 307 004...
- Page 8 CERTIFICATION & CONTROL LABELS The F20 welding helmet are tested for eye protection by the following notified body: DIN Prüf- und Zertifizierungsstelle für Augenschutz, Alboinstr. 56, D-12103 Berlin, notified body 0196 that provides approval and continual quality system under the control of the European Commission, the German...
