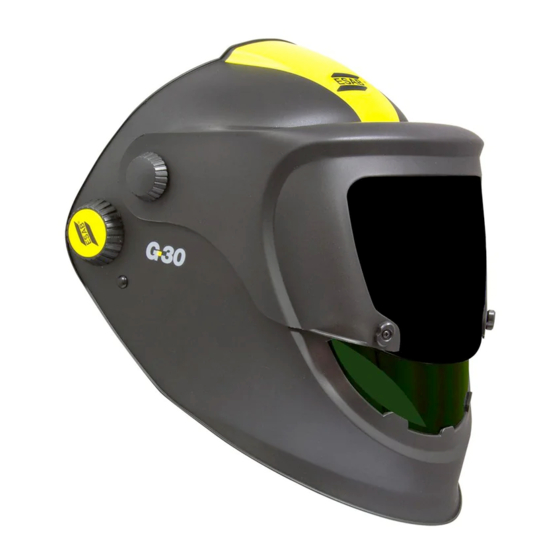

- Page 1 Grinding Welding Helmet...
-
Page 2: Safety Warnings - Read Before Using
WARNING! Before using the helmet for welding, ensure that you have read and understood the safety instructions. Information manual for the G30 welder protective helmets comply with Para 1.4 of Appendix II of the EC Regulations. G30 helmets offer permanent protection against UV/IR rays, also face and eye protection from... -
Page 3: Range Of Application
WARNING! Before using the helmet for welding, ensure that you have read and understood the safety instructions. The G30 is a universal welding cutting and Grinding face shield. With the flip visor in its upper position, the user can have the protection of either a clear visor suitable for grinding or have the protection of a UV/IR shield for cutting or gas welding depending on the IR rating. -
Page 4: Servicing And Maintenance
SERVICING AND MAINTENANCE Only clean the G30 with mild soap and water. Dry with a clean cotton cloth. Please note the use of solvents is strictly prohibited, as they will damage the mask and filters. - Page 5 REPLACING THE LARGE VISOR The Large Inner Visor is a protection lens and must be replaced if broken, damaged or covered with welding spatter to the extent that vision is impaired. The Inner Visor is easily removed by pushing it outwards from the inside of the helmet. To insert the lens, it is necessary to locate the bottom tag into the corresponding slot in the helmet, then locate the two side larger lugs and finally snap in the top lug.
-
Page 7: Parts List & Assembly
Large Inner Visor G30 Clear (163 x54 x 2.2 mm) 0700 000 501 Irregular with longest and widest dimension: 163 x 54 Large Inner Visor G30 DIN 2 (163 x 54 x 2 mm) 0700 000 502 Irregular with longest and widest dimension: 163 x 54... - Page 8 HELMET MARKING EXPLANATION Example for Helmet Marking Explanation: ESAB EN175 B CE ESAB - manufacturer sign EN175 - Number of Standard B - Symbol of protection against high speed particles (120 m/s) Example for Inner Visor Marking Explanation: ESAB Producer...
- Page 9 CERTIFICATION & CONTROL LABELS The G30 welding filters are tested for eye protection by the following notified body: DIN Prüf- und Zertifizierungsstelle für Augenschutz, Alboinstr. 56, D-12103 Berlin, notified body 0196 that provides approval and continual quality system under the control of the European Commission, the German...
