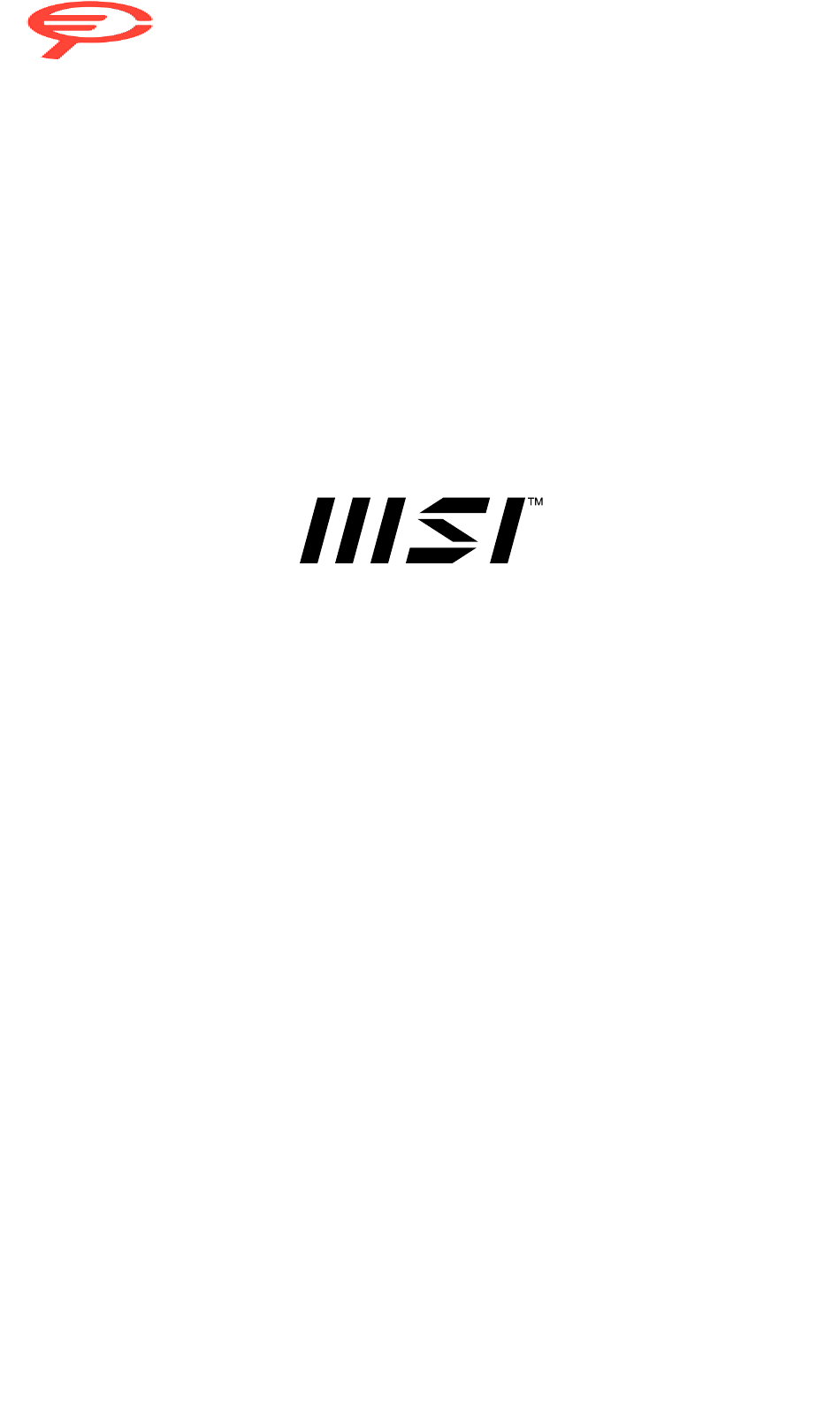

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per MSI PRO MP341CQDE o cerca il tuo prodotto tra le migliori offerte di Monitor PRO Series LCD Monitor PRO MP341CQ (3PB2) PRO MP341CQW (3PB2) User Guide...
- Page 2 Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................7 OSD Setup ........................8 OSD Keys ........................ 8 OSD Menus........................10 Luminance ......................
- Page 3 Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP341CQ PRO MP341CQW Documentation Quick Start Guide Accessories Stand with Screw(s)
- Page 4 Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4.
- Page 5 Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. -3.5° +21.5° Getting Started...
- Page 6 Monitor Overview OSD Keys Power Button Kensington Lock Power Jack HDMI™ Connector Supports 3440x1440@100Hz as specified in HDMI™ 2.0b. DisplayPort Supports 3440x1440@100Hz as specified in DisplayPort 1.2a. Headphone Jack Getting Started...
- Page 7 Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5.
- Page 8 OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu.
- Page 9 OSD Keys Hot Key (When OSD is OFF) OSD Setup (When OSD is ON) SOURCE / ∙ Selecting the video input ∙ Returning to the previous EXIT from external sources menu ∙ Exiting from the OSD Main Menu ∙ Activating the Volume VOLUME / + control ∙...
- Page 10 OSD Menus Luminance 1st Level Menu 2nd Level Menu Description Contrast 0-100 ∙ Adjusting display contrast. This function is available in Standard mode. Brightness 0-100 ∙ Adjusting display brightness. This function is available in Standard mode. Eco Mode Standard ∙ Activating the following function will affect Eco Mode: Text Activated Function...
- Page 11 1st Level Menu 2nd Level Menu Description ∙ DCR enhances image quality by increasing the contrast of images. ∙ Activating DCR will affect: Affected Function Function Status » Contrast » Brightness Unable to select » Eco Mode Image Setup 1st Level Menu 2nd Level Menu Description Image Ratio...
- Page 12 Color Temp. 1st Level Menu 2nd Level Menu Description Warm ∙ Setting Warm Color Temperature to default Normal ∙ Setting Normal Color Temperature to default Cool ∙ Setting Cool Color Temperature to default User R (0-100) ∙ Adjusting the Red Gain G (0-100) ∙...
- Page 13 Extra 1st Level Menu 2nd Level Menu Description Input Select Auto ∙ Selecting the video input source HDMI™1 HDMI™2 DisplayPort DDC/CI ∙ Turning on/off the DDC/CI support HDMI™ CEC ∙ HDMI™ CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC-capable.
- Page 14 Specifications Monitor PRO MP341CQ, PRO MP341CQW Size 34 inch Curvature 1500R Panel Type Resolution 3440 x 1440 Aspect Ratio 21:9 Brightness (nits) 300 (Typ.) Contrast Ratio 3000:1 Refresh Rate 100Hz Response Time ∙ 1ms (MPRT) ∙ 4ms (GTG) ∙ HDMI™ Connector x2 ∙...
- Page 15 Monitor PRO MP341CQ, PRO MP341CQW VESA Mounting ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 809.3 x 469.5 x 237 mm Weight 7.7 Kg (Net)
- Page 16 Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900...
- Page 17 Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on.
- Page 18 ∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
- Page 19 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
- Page 20 TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.
- Page 21 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com...
- Page 22 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 23 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
