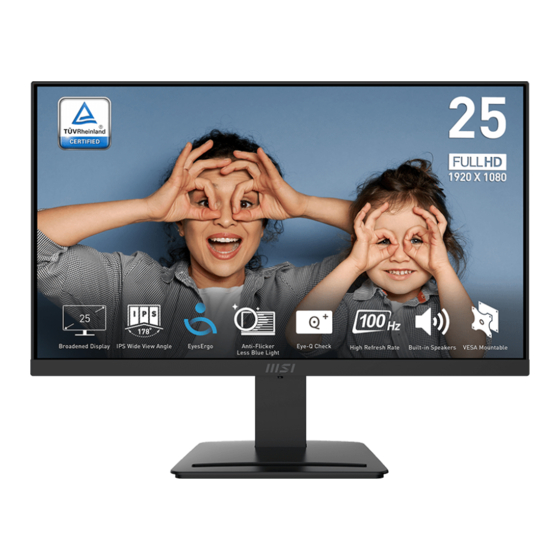

MSI PRO MP253 User Manual
Hide thumbs Also See for PRO MP253:

Advertisement

PRO Series
LCD Monitor
PRO MP253 (3PC7)
PRO MP253W (3PC7)
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO MP253 and is the answer not in the manual?

Questions and answers

Summary of Contents for MSI PRO MP253

  • Page 1 PRO Series LCD Monitor PRO MP253 (3PC7) PRO MP253W (3PC7) User Guide...
  • Page 2: Table Of Contents

    Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 Navi Key ........................9 Hot Key ........................9 OSD Menus........................
  • Page 3: Getting Started

    This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP253 PRO MP253W Documentation Quick Start Guide Accessories...
  • Page 4: Installing The Monitor Stand

    Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the cable organizer towards the stand until it locks in place. 3.
  • Page 5: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor.
  • Page 6: Monitor Overview

    Monitor Overview 比例 25.400...
  • Page 7 Power Button & Navi Key Kensington Lock Cable Organizer DisplayPort Supports 1920x1080@100Hz as specified in DisplayPort 1.2a. HDMI™ Connector Supports 1920x1080@100Hz as specified in HDMI™ 1.4b. D-Sub Port Line-In Jack For audio playback through the speakers, connect the device’s Line-out jack to this Line-in jack when using the D-Sub port.
  • Page 8: Connecting The Monitor To Pc

    Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5.
  • Page 9: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. 比例...
  • Page 10: Osd Menus

    OSD Menus Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the Middle Button to confirm and apply sRGB your mode type. ∙ The default setting “Eco” mode meets the Anti-Blue requirements of TÜV Rheinland’s “Low Blue Movie...
  • Page 11 1st Level Menu 2nd/3rd Level Menu Description Refresh Rate Location Left Top ∙ Location is adjustable in OSD Menu. Press the Middle Button to confirm and apply your Right Top Refresh Rate Location. Left Bottom ∙ This monitor follows and works at the Operating System’s preset Screen Refresh Right Bottom Rate.
  • Page 12: Image

    1st Level Menu 2nd/3rd Level Menu Description Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. 16:9 Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect: Affected Function Function Status »...
  • Page 13: Input Source

    1st Level Menu 2nd/3rd Level Menu Description Clock 0-100 ∙ Adjust Clock setting. ∙ For D-Sub only, this setting will be grayed out when detecting other input sources. Phase 0-100 ∙ Adjust Phase setting. ∙ For D-Sub only, this setting will be grayed out when detecting other input sources.
  • Page 14: Settings

    Settings 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the Middle Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own Français language setting will override the factory. When users set Reset to Yes, Language will not be Deutsch changed.
  • Page 15 1st Level Menu 2nd Level Menu Description Info. On Screen ∙ The information of the monitor status will be shown on the right side of the screen. ∙ Activating Info. On Screen will affect: Affected Function Function Status » Eye-Q Check Set to OFF Audio Volume 0-100...
  • Page 16: Specifications

    Specifications Monitor PRO MP253 PRO MP253W Size 24.5 inch Curvature Flat Panel Type Resolution 1920x1080 (FHD) Aspect Ratio 16:9 Brightness 300 nits (typ.) Contrast Ratio 1000:1 Refresh Rate 100Hz Response Time ∙ 1ms (MPRT) ∙ 4ms (GTG) ∙ DisplayPort x1 ∙...
  • Page 17 Monitor PRO MP253 PRO MP253W Dimension (W x H x D) 560 x 438.4 x 182 mm Weight 3.03 kg Gross 5.05 kg Environment Operating ∙ Temperature: 0℃ to 40℃ ∙ Humidity: 20% to 90%, non-condensing ∙ Altitude: 0 ~ 5000m Storage ∙...
  • Page 18: Preset Display Modes

    Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Resolution HDMI™ D-Sub 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+...
  • Page 19: Troubleshooting

    Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on.
  • Page 20: Safety Instructions

    ∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
  • Page 21 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
  • Page 22: Tüv Rheinland Certification

    TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.
  • Page 23: Regulatory Notices

    1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com...
  • Page 24 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
  • Page 25 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
