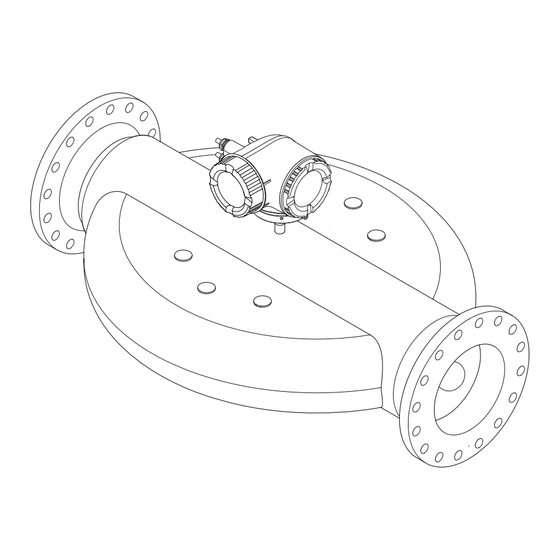

Page 1 Products Solutions Services BA01514D/06/EN/03.24-00 71674747 2024-11-01 Valid as of version 01.01.zz (Device firmware) Operating Instructions Proline Promass X 300 PROFIBUS PA Coriolis flowmeter...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser sales organization will supply you with current information and updates to this manual. Endress+Hauser...
Page 3 Proline Promass X 300 PROFIBUS PA Table of contents Table of contents 6.1.2 Environmental and process About this document ....6 requirements ....
Page 4 Table of contents Proline Promass X 300 PROFIBUS PA 8.3.11 Disabling write protection via access 10.6.9 Configuring the current output ..code ......60 10.6.10 Configuring the pulse/frequency/...
Page 5 13.2 Measuring and test equipment ... 236 13.3 Endress+Hauser services ....236 Repair ......237 14.1 General notes .
Page 6 About this document Proline Promass X 300 PROFIBUS PA About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.
Page 7 Proline Promass X 300 PROFIBUS PA About this document 1.2.4 Tool symbols Symbol Meaning Flat-blade screwdriver Allen key Open-ended wrench 1.2.5 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted. Preferred Procedures, processes or actions that are preferred.
Page 8 • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. The following documentation may be available depending on the device version ordered: Document type...
Page 9 Proline Promass X 300 PROFIBUS PA Safety instructions Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.
Page 10 Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
Page 11 Proline Promass X 300 PROFIBUS PA Safety instructions IT security The manufacturer warranty is valid only if the product is installed and used as described in the Operating Instructions. The product is equipped with security mechanisms to protect it against any inadvertent changes to the settings.
Page 12 Safety instructions Proline Promass X 300 PROFIBUS PA User-specific access code Write access to the device parameters via the local display, web browser or operating tool (e.g. FieldCare, DeviceCare) can be protected by the modifiable, user-specific access code (→  141).
Page 13 Proline Promass X 300 PROFIBUS PA Safety instructions This includes organizational security measures such as the assignment of access authorization as well as technical measures such as network segmentation. Transmitters with an Ex de approval may not be connected via the service interface (CDI-RJ45)! Order code for "Approval transmitter + sensor", options (Ex de): BA, BB, C1, C2, GA,...
Page 14 Product description Proline Promass X 300 PROFIBUS PA Product description The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Product design N ic te r e rg ö...
Page 15 • Enter the serial numbers from the nameplates in the Device Viewer (www.endress.com/deviceviewer): all the information about the device is displayed. • Enter the serial numbers from the nameplates into the Endress+Hauser Operations app or scan the DataMatrix code on the nameplate with the Endress+Hauser Operations app: all the information about the device is displayed.
Page 16 Incoming acceptance and product identification Proline Promass X 300 PROFIBUS PA 4.2.1 Transmitter nameplate 3 4 5 Order code: Ser. no.: Ext. ord. cd.: Date: A0029192  2 Example of a transmitter nameplate Manufacturer address/certificate holder Name of the transmitter...
Page 17 Proline Promass X 300 PROFIBUS PA Incoming acceptance and product identification 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0029199  3 Example of a sensor nameplate Name of the sensor Manufacturer address/certificate holder Order code Serial number (Ser. no.) Extended order code (Ext.
Page 18 Incoming acceptance and product identification Proline Promass X 300 PROFIBUS PA 4.2.3 Symbols on the device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Please consult the documentation for the measuring instrument to discover the type of potential danger and measures to avoid it.
Page 19 Proline Promass X 300 PROFIBUS PA Storage and transport Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.
Page 20 Storage and transport Proline Promass X 300 PROFIBUS PA 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device.
Page 21 Proline Promass X 300 PROFIBUS PA Mounting Mounting Mounting requirements 6.1.1 Installation position Installation point A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring pipe, avoid the following mounting locations in the piping: • Highest point of a pipeline.
Page 22 Mounting Proline Promass X 300 PROFIBUS PA Ø orifice plate, pipe restriction [mm] [in] [mm] [in] 8.27 8.27 8.27 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping).
Page 23 Proline Promass X 300 PROFIBUS PA Mounting Inlet and outlet runs No special precautions need to be taken for fittings that create turbulence, such as valves, elbows or T-pieces, as long as no cavitation occurs →  23. A0029322 A0029323 Installation dimensions For the dimensions and installation lengths of the device, see the "Technical...
Page 24 Mounting Proline Promass X 300 PROFIBUS PA Thermal insulation In the case of some fluids, it is important to keep the heat radiated from the sensor to the transmitter to a low level. A wide range of materials can be used for the required insulation.
Page 25 Proline Promass X 300 PROFIBUS PA Mounting Heating options If a fluid requires that no heat loss should occur at the sensor, users can avail of the following heating options: • Electrical heating, e.g. with electric band heaters • Via pipes carrying hot water or steam •...
Page 26 Mounting Proline Promass X 300 PROFIBUS PA RUPTURE DISK A0029944 Rupture disk label Rupture disk with 1/2" NPT internal thread and 1" width across flats Transportation guard For information on the dimensions, see the "Technical Information" document, "Mechanical construction" section (accessories).
Page 27 Proline Promass X 300 PROFIBUS PA Mounting Weather protection cover 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  7 Engineering unit mm (in) Cover lock NOTICE Order code "Housing", option L "Cast, stainless": The covers of the transmitter housing are provided with a borehole to lock the cover.
Page 28 Mounting Proline Promass X 300 PROFIBUS PA 6.2.2 Preparing the measuring instrument 1. Remove all remaining transport packaging. 2. Remove any protective covers or protective caps present from the sensor. 3. Remove stick-on label on the electronics compartment cover. 6.2.3...
Page 29 Proline Promass X 300 PROFIBUS PA Mounting 6. Screw on the connection compartment cover. 7. Depending on the device version: Attach the securing clamp of the connection compartment cover. 4 mm 7 Nm (5.2 lbf ) A0043150  9 Ex housing 1.
Page 30 Mounting Proline Promass X 300 PROFIBUS PA Post-installation check Is the device undamaged (visual inspection)?  Does the measuring instrument correspond to the measuring point specifications? For example: • Process temperature →  257  • Pressure (refer to the "Pressure-temperature ratings" section of the "Technical Information"...
Page 31 Proline Promass X 300 PROFIBUS PA Electrical connection Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage.
Page 32 Electrical connection Proline Promass X 300 PROFIBUS PA Ethernet-APL Shielded twisted-pair cable. Cable type A is recommended. https://www.profibus.com Ethernet-APL White Paper " Current output 0 /4 to 20 mA (excluding HART) Standard installation cable is sufficient. Pulse /frequency /switch output Standard installation cable is sufficient.
Page 33 Proline Promass X 300 PROFIBUS PA Electrical connection A standard cable with the following minimum requirements can be used as the connecting cable, even in the hazardous area (Zone 2, Class I, Division 2 and Zone 1, Class I, Division Standard cable 4 wires (2 pairs);...
Page 34 Electrical connection Proline Promass X 300 PROFIBUS PA 7.2.3 Terminal assignment Transmitter: supply voltage, input/outputs The terminal assignment of the inputs and outputs depends on the individual order version of the device. The device-specific terminal assignment is documented on an adhesive label in the terminal cover.
Page 35 Proline Promass X 300 PROFIBUS PA Electrical connection the field device). Appropriate measures with regard to input wiring must be taken to allow unrestricted operation when EMC interference is present. These measures have been taken into account for this device. Operation in the event of disturbance variables as per NAMUR NE21 is thus guaranteed.
Page 36 Electrical connection Proline Promass X 300 PROFIBUS PA 1. Remove dummy plug if present. 2. If the measuring device is supplied without cable glands: Provide suitable cable gland for corresponding connecting cable. 3. If the measuring device is supplied with cable glands: Observe requirements for connecting cables →...
Page 37 Proline Promass X 300 PROFIBUS PA Electrical connection N ic N ic te r te r e rg ö ff e rg ö ff iz e iz e te n te n ri r ri r s io s io te r ö...
Page 38 Electrical connection Proline Promass X 300 PROFIBUS PA Removing a cable To remove a cable from the terminal: 3 (0.12) A0029598  11 Engineering unit mm (in) 1. Use a flat-blade screwdriver to press down on the slot between the two terminal holes.
Page 39 Proline Promass X 300 PROFIBUS PA Electrical connection 7.3.2 Connecting the remote display and operating module DKX001 The remote display and operating module DKX001 is available as an optional extra →  239.. • The measuring instrument is always supplied with a dummy cover when the remote display and operating module DKX001 is ordered directly with the measuring instrument.
Page 40 Electrical connection Proline Promass X 300 PROFIBUS PA Special connection instructions 7.5.1 Connection examples PROFIBUS PA A0028768  12 Connection example for PROFIBUS PA Control system (e.g. PLC) PROFIBUS PA segment coupler Cable shield provided at one end. The cable shield must be grounded at both ends to comply with EMC requirements;...
Page 41 Proline Promass X 300 PROFIBUS PA Electrical connection 4...20 mA A0028759  14 Connection example for 4-20 mA current output (passive) Automation system with current input (e.g. PLC) Active barrier for power supply (e.g. RN221N) Analog display unit: observe maximum load...
Page 42 Electrical connection Proline Promass X 300 PROFIBUS PA Relay output A0028760  17 Connection example for relay output (passive) Automation system with relay input (e.g. PLC) Power supply Transmitter: observe input values →  247 Current input A0028915  18...
Page 43 Proline Promass X 300 PROFIBUS PA Electrical connection Hardware settings 7.6.1 Setting the device address The address must always be configured for a PROFIBUS DP/PA device. The valid address range is between 1 and 126. In a PROFIBUS DP/PA network, each address can only be assigned once.
Page 44 Electrical connection Proline Promass X 300 PROFIBUS PA A0034499 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover. 2. Depending on the housing version, unscrew or open the housing cover and disconnect the local display from the main electronics module where necessary .
Page 45 Proline Promass X 300 PROFIBUS PA Electrical connection Are all cable glands installed, securely tightened and leak-tight? Cable run with "water trap"  →  44? Is the terminal assignment correct ?  If supply voltage is present:  Does an indication appear on the display module? Are dummy plugs inserted in unused cable entries and have transportation plugs been replaced ...
Page 46 Operation options Proline Promass X 300 PROFIBUS PA Operation options Overview of operation options A0034513 Local operation via display module Computer with web browser or operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370...
Page 47 Proline Promass X 300 PROFIBUS PA Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: see the "Description of Device Parameters" document supplied with the device...
Page 48 Operation options Proline Promass X 300 PROFIBUS PA 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (e.g. operator, maintenance etc.). Each user role contains typical tasks within the device life cycle. For custody transfer, once the device has been put into circulation or sealed, its operation is restricted.
Page 49 Proline Promass X 300 PROFIBUS PA Operation options Menu/parameter User role and tasks Content/meaning Expert Function- Tasks that require detailed knowledge of Contains all of the device parameters and allows direct access to these by oriented the function of the device: means of an access code.
Page 50 Operation options Proline Promass X 300 PROFIBUS PA Status area The following symbols appear in the status area of the operational display at the top right: • Status signals→  169 • F: Failure • C: Function check • S: Out of specification •...
Page 51 Proline Promass X 300 PROFIBUS PA Operation options Measurement channel numbers Symbol Meaning Measurement channel 1 to 4  The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g. totalizer 1 to 3).
Page 52 Operation options Proline Promass X 300 PROFIBUS PA 8.3.2 Navigation view In the submenu In the wizard /../Operation 0091-1 /../Select medium Access stat.disp Select medium Operator Liquid Locking status Display A0013993-EN A0013995-EN Navigation view Navigation path to current position Status area Display area for navigation Operating elements →...
Page 53 Proline Promass X 300 PROFIBUS PA Operation options Setup Is displayed: • In the menu next to the "Setup" selection • At the left in the navigation path in the Setup menu Diagnosis Is displayed: • In the menu next to the "Diagnostics" selection •...
Page 54 Operation options Proline Promass X 300 PROFIBUS PA 8.3.3 Editing view Numeric editor +0.000 Xx – A0034250  21 For entering values in parameters (e.g. limit values) Entry display area Input screen Confirm, delete or reject entry Operating elements Text editor...
Page 55 Proline Promass X 300 PROFIBUS PA Operation options Operating key Meaning Enter key • Pressing the key briefly confirms your selection. • Pressing the key for 2 s confirms your entry. Escape key combination (press keys simultaneously) Close the editing view without accepting a change.
Page 56 Operation options Proline Promass X 300 PROFIBUS PA 8.3.4 Operating elements Operating key Meaning Minus key In menu, submenu Moves the selection bar upwards in a picklist In wizards Goes to previous parameter In the text and numeric editor Move the entry position to the left.
Page 57 Proline Promass X 300 PROFIBUS PA Operation options Calling up and closing the context menu The user is in the operational display. 1. Press the  and  keys for longer than 3 seconds.  The context menu opens. XXXXXXXXXX Setup Conf.backup...
Page 58 Operation options Proline Promass X 300 PROFIBUS PA 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 59 Proline Promass X 300 PROFIBUS PA Operation options The direct access code consists of a 5-digit number (at maximum) and the channel number, which identifies the channel of a process variable: e.g. 00914-2. In the navigation view, this appears on the right-hand side in the header of the selected parameter.
Page 60 Operation options Proline Promass X 300 PROFIBUS PA Ent. access code Invalid or out of range input value Min:0 Max:9999 A0014049-EN For a description of the editing view - consisting of the text editor and numeric editor - with symbols →  54, for a description of the operating elements →  56 8.3.10...
Page 61 Proline Promass X 300 PROFIBUS PA Operation options 2. Enter the access code.  The -symbol in front of the parameters disappears; all previously write- protected parameters are now re-enabled. 8.3.12 Enabling and disabling the keypad lock The keypad lock makes it possible to block access to the entire operating menu via local operation.
Page 62 Operation options Proline Promass X 300 PROFIBUS PA 8.4.2 Requirements Computer hardware Hardware Interface CDI-RJ45 WLAN Interface The computer must have a RJ45 The operating unit must have a WLAN interface. interface. Connection Standard Ethernet cable Connection via Wireless LAN.
Page 63 Proline Promass X 300 PROFIBUS PA Operation options Measuring device: Via CDI-RJ45 service interface Device CDI-RJ45 service interface Measuring device The measuring device has an RJ45 interface. Web server Web server must be enabled; factory setting: ON  For information on enabling the Web server →  67...
Page 64 Operation options Proline Promass X 300 PROFIBUS PA NOTICE Note the following to avoid a network conflict: ‣ Avoid accessing the measuring device simultaneously from the same mobile terminal via the service interface (CDI-RJ45) and the WLAN interface. ‣ Only activate one service interface (CDI-RJ45 or WLAN interface).
Page 65 Proline Promass X 300 PROFIBUS PA Operation options 2. Enter the IP address of the web server in the address line of the web browser: 192.168.1.212  The login page appears. 2 3 4 Device name: Device tag: Signal Status:...
Page 66 Operation options Proline Promass X 300 PROFIBUS PA 8.4.5 User interface A0029418 Function row Local display language Navigation area Header The following information appears in the header: • Device name • Device tag • Device status with status signal →  172 •...
Page 67 Proline Promass X 300 PROFIBUS PA Operation options Navigation area The menus, the associated submenus and parameters can be selected in the navigation area. Working area Depending on the selected function and the related submenus, various actions can be performed in this area: •...
Page 68 Operation options Proline Promass X 300 PROFIBUS PA 3. If no longer needed: Reset the modified properties of the Internet protocol (TCP/IP) →  63. Access to the operating menu via the operating tool The structure of the operating menu in the operating tools is the same as for operation via the local display.
Page 69 Proline Promass X 300 PROFIBUS PA Operation options A0027563  25 Connection via service interface (CDI-RJ45) Computer with web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated web server or with "FieldCare" operating tool, "DeviceCare" with COM DTM "CDI Communication TCP/IP"...
Page 70 FieldCare Function range FDT-based (Field Device Technology) plant asset management tool from Endress+Hauser. It can configure all smart field units in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 71 Proline Promass X 300 PROFIBUS PA Operation options Access is via: • PROFIBUS PA protocol →  68 • CDI-RJ45 service interface →  68 • WLAN interface →  69 Typical functions: • Transmitter parameter configuration • Loading and saving of device data (upload/download) •...
Page 72 DeviceCare Function range Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. Innovation brochure IN01047S Source for device description files →...
Page 73 Proline Promass X 300 PROFIBUS PA Operation options 8.5.4 SIMATIC PDM Function range Standardized, vendor-independent program from Siemens for the operation, configuration, maintenance and diagnosis of intelligent field devices via the PROFIBUS PA protocol. Source for device description files →  74...
Page 74 System integration Proline Promass X 300 PROFIBUS PA System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.01.zz • On the title page of the manual • On the transmitter nameplate • Firmware version Diagnostics →...
Page 75 Proline Promass X 300 PROFIBUS PA System integration 9.2.1 Manufacturer-specific GSD This GSD guarantees the unrestricted functionality of the measuring device. Device-specific process parameters and functions are therefore available. Manufacturer-specific GSD ID number File name PROFIBUS PA 0x156D EH3x156D.gsd Use manufacturer-specific GSD Assignment is performed in the Ident number selector parameter via the Manufacturer option.
Page 76 System integration Proline Promass X 300 PROFIBUS PA Compatibility with earlier model If the device is replaced, the measuring device Promass 300 supports the compatibility of the cyclic data with previous models. It is not necessary to adjust the engineering parameters of the PROFIBUS network with the Promass 300 GSD file.
Page 77 Proline Promass X 300 PROFIBUS PA System integration 2. Set the device address: The same device address that was set for the Promass 80 or Promass 83 PROFIBUS PA must be used. 3. Connect the measuring device Promass 300 PROFIBUS PA.
Page 78 System integration Proline Promass X 300 PROFIBUS PA Previous model: Promass 83 PROFIBUS PA Control variable Function Support 0 → 2 Positive zero return: ON 0 → 3 Positive zero return: OFF 0 → 4 Zero point adjustment: START 0 → 8...
Page 79 Proline Promass X 300 PROFIBUS PA System integration Cyclic data transmission Cyclic data transmission when using the device master file (GSD). 9.5.1 Block model The block model shows which input and output data the measuring device makes available for cyclic data exchange. Cyclic data exchange takes place with a PROFIBUS master (Class 1), e.g.
Page 80 System integration Proline Promass X 300 PROFIBUS PA AI module (Analog Input) Transmit an input variable from the measuring device to the PROFIBUS master (Class 1). The selected input variable including its status is cyclically transmitted to the PROFIBUS master (Class 1) via the AI module. The input variable is depicted in the first four bytes in the form of a floating point number as per the IEEE 754 standard.
Page 81 Proline Promass X 300 PROFIBUS PA System integration Input variable Alternative GSV flow NSV flow Alternative NSV flow S&W volume flow Water cut percentage Oil density Water density Oil mass flow Water mass flow Oil volume flow Water volume flow...
Page 82 System integration Proline Promass X 300 PROFIBUS PA Selection: totalizer value Input variable Mass flow Volume flow Corrected volume flow Target fluid mass flow Carrier mass flow Only available with the "Concentration" application package Factory setting Function block Factory setting: TOTAL...
Page 83 Proline Promass X 300 PROFIBUS PA System integration Input data of TOTAL Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Measured value: floating point number (IEEE 754) Status SETTOT_MODETOT_TOTAL module The module combination consists of the SETTOT, MODETOT and TOTAL functions: •...
Page 84 System integration Proline Promass X 300 PROFIBUS PA Assigned compensation values A compensation value is permanently assigned to the individual Analog Output blocks. Function block Compensation value AO 1 External pressure AO 2 External temperature AO 3 External reference density AO 4 External S&W percentage...
Page 85 Proline Promass X 300 PROFIBUS PA System integration Factory setting Function block Factory setting DI 1 Empty pipe detection DI 2 Low flow cut off Data structure Input data of Discrete Input Byte 1 Byte 2 Discrete Status DO module (Discrete Output) Transmit discrete output values from the PROFIBUS master (class 1) to the measuring device.
Page 86 System integration Proline Promass X 300 PROFIBUS PA Assignment of medium type: function block DO 5 Methanol in water Ammonium nitrate in water Iron(III) chloride in water HFCS42 HFCS55 HFCS90 Original wort % mass / % volume Coef Set No. 1 Coef Set No.
Page 87 Proline Promass X 300 PROFIBUS PA Commissioning Commissioning 10.1 Post-mounting and post-connection check Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • Checklist for "Post-installation" check→  30 • Checklist for "Post-connection" check→  44 10.2...
Page 88 Commissioning Proline Promass X 300 PROFIBUS PA X X X X X X X 20.50 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English Ã Deutsch Español Français Display language 0104-1 Ã English Deutsch Español Français Hauptmenü...
Page 89 Proline Promass X 300 PROFIBUS PA Commissioning Navigation "Setup" menu  Setup Device tag →  90 ‣ System units →  90 ‣ →  93 Medium selection ‣ Communication →  94 ‣ Analog inputs →  95 ‣...
Page 90 Commissioning Proline Promass X 300 PROFIBUS PA XXXXXXXXX A0029422  28 Header of the operational display with tag name Tag name Enter the tag name in the "FieldCare" operating tool →  72 Navigation "Setup" menu → Device tag Parameter overview with brief description...
Page 91 Proline Promass X 300 PROFIBUS PA Commissioning Temperature unit →  92 Pressure unit →  92 Parameter overview with brief description Parameter Description Selection Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h Effect •...
Page 92 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Description Selection Factory setting Temperature unit Select temperature unit. Unit choose list Country-specific: • °C Effect • °F The selected unit applies to: • Electronic temperature parameter (6053) • Maximum value parameter (6051) •...
Page 93 Proline Promass X 300 PROFIBUS PA Commissioning 10.6.3 Selecting and setting the medium The Select medium wizard submenu contains parameters that must be configured in order to select and set the medium. Navigation "Setup" menu → Medium selection ‣ Medium selection Select medium →...
Page 94 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description Selection / User entry / User interface Reference sound velocity In the Select gas type parameter, the Enter sound velocity of gas at 0 °C (32 1 to 99 999.9999 m/s Others option is selected.
Page 95 Proline Promass X 300 PROFIBUS PA Commissioning 10.6.5 Configuration of the Analog Inputs The Analog inputs submenu guides the user systematically to the individual Analog input 1 to n submenu. From here you get to the parameters of the individual analog input.
Page 96 Commissioning Proline Promass X 300 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description Selection / User entry Channel – Select the process variable. • Mass flow • Volume flow • Corrected volume flow • Density • Reference density • Target mass flow •...
Page 97 Proline Promass X 300 PROFIBUS PA Commissioning Navigation "Setup" menu → I/O configuration ‣ I/O configuration I/O module 1 to n terminal numbers →  97 I/O module 1 to n information →  97 →  97 I/O module 1 to n type Apply I/O configuration →...
Page 98 Commissioning Proline Promass X 300 PROFIBUS PA 0/4 mA value →  98 20 mA value →  98 →  98 Current span Failure mode →  98 Failure value →  98 Parameter overview with brief description Parameter...
Page 99 Proline Promass X 300 PROFIBUS PA Commissioning Active level →  99 Terminal number →  99 →  99 Response time status input Terminal number →  99 Parameter overview with brief description Parameter Description Selection / User interface / User entry Assign status input Select function for the status input.
Page 100 Commissioning Proline Promass X 300 PROFIBUS PA Failure mode →  102 Failure current →  102 Parameter overview with brief description Parameter Prerequisite Description User interface / Factory setting Selection / User entry Terminal number – Shows the terminal numbers • Not used –...
Page 101 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description User interface / Factory setting Selection / User entry Assign current output 1 to n – Select process variable for • Off – current output. • Mass flow • Volume flow • Corrected volume flow •...
Page 102 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description User interface / Factory setting Selection / User entry 0/4 mA value In Current span parameter Enter 4 mA value. Signed floating-point Depends on country: (→  101), one of the number • 0 kg/h following options is selected: •...
Page 103 Proline Promass X 300 PROFIBUS PA Commissioning 10.6.10 Configuring the pulse/frequency/switch output The Pulse/frequency/switch output wizard guides you systematically through all the parameters that can be set for configuring the selected output type. Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output ‣...
Page 104 Commissioning Proline Promass X 300 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Operating mode – Define the output as a pulse, • Pulse – frequency or switch output. • Frequency • Switch Terminal number –...
Page 105 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Failure mode The Pulse option is selected in Define output behavior in • Actual value – the Operating mode alarm condition. • No pulses parameter (→  103) and a...
Page 106 Commissioning Proline Promass X 300 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Operating mode – Define the output as a pulse, • Pulse – frequency or switch output. • Frequency • Switch Terminal number –...
Page 107 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Assign frequency output The Frequency option is Select process variable for • Off – selected in Operating mode frequency output. • Mass flow parameter (→  103).
Page 108 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting interface / User entry Maximum frequency value The Frequency option is Enter maximum frequency. 0.0 to 10 000.0 Hz – selected in the Operating mode parameter (→  103)
Page 109 Proline Promass X 300 PROFIBUS PA Commissioning Configuring the switch output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n Operating mode →  109 Terminal number →  109 Signal mode →  109 Switch output function →...
Page 110 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch output function The Switch option is selected Select function for switch • Off – in the Operating mode output. • On parameter. • Diagnostic behavior •...
Page 111 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Assign flow direction check • The Switch option is Select process variable for flow – selected in the Operating direction monitoring. mode parameter. • The Flow direction check...
Page 112 Commissioning Proline Promass X 300 PROFIBUS PA Relay output function →  112 Assign flow direction check →  112 →  113 Assign limit Assign diagnostic behavior →  113 Assign status →  113 Switch-off value →  113 →...
Page 113 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description User interface / Factory setting Selection / User entry Assign limit The Limit option is selected in Select process variable for limit • Mass flow – Relay output function function. • Volume flow parameter.
Page 114 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description User interface / Factory setting Selection / User entry Switch-on delay In the Relay output function Define delay for the switch-on 0.0 to 100.0 s – parameter, the Limit option is of status output.
Page 115 Proline Promass X 300 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size – are shown on the display.
Page 116 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Value 1 display A local display is provided. Select the measured value that • Mass flow – is shown on the local display. • Volume flow •...
Page 117 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry • Electronic temperature • Current output 1 • Current output 2 • Current output 3 0% bargraph value 1 A local display is provided. Enter 0% value for bar graph...
Page 118 Commissioning Proline Promass X 300 PROFIBUS PA 10.6.13 Configuring the low flow cut off The Low flow cut off wizard systematically guides the user through all the parameters that must be set to configure low flow cut off. Navigation "Setup" menu → Low flow cut off ‣...
Page 119 Proline Promass X 300 PROFIBUS PA Commissioning 10.6.14 Configuring partially filled pipe detection The Partial filled pipe detection wizard guides you systematically through all parameters that have to be set for configuring the monitoring of the pipe filling. Navigation "Setup" menu → Partially filled pipe detection ‣...
Page 120 Commissioning Proline Promass X 300 PROFIBUS PA 10.7 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 0104-1 Main menu Display language English Display/operat.
Page 121 Proline Promass X 300 PROFIBUS PA Commissioning ‣ Totalizer 1 to n →  128 ‣ →  130 Display ‣ WLAN settings ‣ Concentration ‣ Heartbeat setup ‣ Configuration backup →  136 ‣ Administration →  137 10.7.1...
Page 122 Commissioning Proline Promass X 300 PROFIBUS PA Linear expansion coefficient (1817) →  122 Square expansion coefficient (1818) →  122 Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Corrected volume flow calculation – Select reference density for •...
Page 123 Proline Promass X 300 PROFIBUS PA Commissioning ‣ Zero verification →  126 ‣ Zero adjustment →  127 Parameter overview with brief description Parameter Description Selection Installation direction Set sign of flow direction to match the direction of the arrow on •...
Page 124 Commissioning Proline Promass X 300 PROFIBUS PA If the adjustment was completed successfully, the Density adjustment factor parameter and the Density adjustment offset parameter and the values calculated for them are shown on the display. "2 point adjustment" option 1. In the Density adjustment mode parameter, select the 2 point adjustment option and confirm.
Page 125 Proline Promass X 300 PROFIBUS PA Commissioning Density adjustment factor →  125 Density adjustment offset →  125 Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Density adjustment mode – • 1 point adjustment –...
Page 126 Commissioning Proline Promass X 300 PROFIBUS PA Zero verification and zero adjustment cannot be performed if the following process conditions are present: • Gas pockets Ensure that the system has been sufficiently flushed with the medium. Repeat flushing can help to eliminate gas pockets •...
Page 127 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Description Selection / User interface Factory setting Zero point adjustment status • Busy – • Zero point adjust failure • Ok Additional information Indicate whether to display additional • Hide – information. • Show...
Page 128 Commissioning Proline Promass X 300 PROFIBUS PA Zero point measured →  128 Zero point standard deviation →  128 →  128 Select action Parameter overview with brief description Parameter Description Selection / User interface Factory setting Process conditions Ensure process conditions as follows.
Page 129 Proline Promass X 300 PROFIBUS PA Commissioning Unit totalizer →  129 Totalizer operation mode →  129 →  129 Control Totalizer 1 to n Failure mode →  129 Parameter overview with brief description Parameter Description Selection Factory setting Assign process variable Select process variable for totalizer.
Page 130 Commissioning Proline Promass X 300 PROFIBUS PA 10.7.4 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣...
Page 131 Proline Promass X 300 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size – are shown on the display.
Page 132 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Value 1 display A local display is provided. Select the measured value that • Mass flow – is shown on the local display. • Volume flow •...
Page 133 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry • Electronic temperature • Current output 1 • Current output 2 • Current output 3 0% bargraph value 1 A local display is provided. Enter 0% value for bar graph...
Page 134 Commissioning Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Display language A local display is provided. Set display language. • English English • Deutsch (alternatively, the • Français ordered language is • Español preset in the device) •...
Page 135 Proline Promass X 300 PROFIBUS PA Commissioning Navigation "Setup" menu → Advanced setup → WLAN settings ‣ WLAN settings WLAN IP address →  135 Security type →  135 →  135 WLAN passphrase Assign SSID name →  135 SSID name →...
Page 136 Commissioning Proline Promass X 300 PROFIBUS PA 10.7.6 Configuration management After commissioning, you can save the current device configurationor restore the previous device configuration. The device configuration is managed via the Configuration management parameter. Navigation "Setup" menu → Advanced setup → Configuration backup ‣...
Page 137 Proline Promass X 300 PROFIBUS PA Commissioning Function scope of the "Configuration management" parameter Options Description Cancel No action is executed and the user exits the parameter. Execute backup A backup copy of the current device configuration is saved from the HistoROM backup to the memory of the device.
Page 138 Reset access code to factory settings. Character string comprising numbers, letters and special characters  For a reset code, contact your Endress+Hauser service organization. The reset code can only be entered via: • Web browser • DeviceCare, FieldCare (via CDI-RJ45 service interface) •...
Page 139 Proline Promass X 300 PROFIBUS PA Commissioning or closed-control loops). The simulation can be performed without a real measurement (no flow of medium through the device). Navigation "Diagnostics" menu → Simulation ‣ Simulation Assign simulation process variable →  140 Process variable value →...
Page 140 Commissioning Proline Promass X 300 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description Selection / User entry Assign simulation process variable – Select a process variable for the • Off simulation process that is activated. • Mass flow • Volume flow •...
Page 141 Proline Promass X 300 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User entry Switch output simulation 1 to n In the Operating mode parameter, the Switch the simulation of the switch • Off Switch option is selected. output on and off.
Page 142 Commissioning Proline Promass X 300 PROFIBUS PA 3. Enter the access code again in the Confirm access code parameter (→  138) to confirm.  The  symbol appears in front of all write-protected parameters. • Disabling parameter write protection via access code →  60.
Page 143 Commissioning Via Web browser, FieldCare, DeviceCare (via CDI-RJ45 service interface), fieldbus You can only obtain a reset code from your local Endress+Hauser service organization. The code must be calculated explicitly for every device. 1. Note down the serial number of the device.
Page 144 Commissioning Proline Promass X 300 PROFIBUS PA 2. Setting the write protection (WP) switch on the main electronics module to the OFF position (factory setting) disables hardware write protection.  No option is displayed in the Locking status parameter →  145. On the local display, the ...
Page 145 Proline Promass X 300 PROFIBUS PA Operation Operation 11.1 Reading off the device locking status Device active write protection: Locking status parameter Operation → Locking status Function scope of the "Locking status" parameter Options Description None The access authorization displayed in the Access status parameter applies →...
Page 146 Operation Proline Promass X 300 PROFIBUS PA 11.4.1 "Measured variables" submenu The Measured variables submenu contains all the parameters needed to display the current measured values for each process variable. Navigation "Diagnostics" menu → Measured values → Measured variables ‣...
Page 147 Proline Promass X 300 PROFIBUS PA Operation GSV flow →  151 →  151 GSV flow alternative NSV flow →  152 NSV flow alternative →  152 Oil CTL →  152 Oil CPL →  152 Oil CTPL →...
Page 148 Operation Proline Promass X 300 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description User interface Factory setting Mass flow – Displays the mass flow that is Signed floating-point – currently measured. number Dependency The unit is taken from: Mass flow unit parameter (→...
Page 149 Proline Promass X 300 PROFIBUS PA Operation Parameter Prerequisite Description User interface Factory setting Target mass flow With the following conditions: Displays the mass flow that is Signed floating-point – Order code for "Application currently measured for the number package", option ED target medium.
Page 150 Operation Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description User interface Factory setting Carrier volume flow With the following conditions: Displays the volume flow Signed floating-point – • Order code for "Application currently measured for the number package", option ED carrier medium.
Page 151 Proline Promass X 300 PROFIBUS PA Operation Parameter Prerequisite Description User interface Factory setting S&W volume flow For the following order code: Displays the S&W volume flow Signed floating-point – • "Application package", option which is calculated from the number EJ "Petroleum"...
Page 152 Operation Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description User interface Factory setting NSV flow For the following order code: Displays the net volume flow Signed floating-point – • "Application package", option which is calculated from the number EJ "Petroleum"...
Page 153 Proline Promass X 300 PROFIBUS PA Operation Parameter Prerequisite Description User interface Factory setting Water CTL For the following order code: Displays the correction factor Positive floating- – • "Application package", option which represents the effect of point number EJ "Petroleum"...
Page 154 Operation Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description User interface Factory setting Water reference density For the following order code: Signed floating-point – • "Application package", option number EJ "Petroleum" • In the Petroleum mode parameter, the Net oil &...
Page 155 Proline Promass X 300 PROFIBUS PA Operation Parameter Prerequisite Description User interface Factory setting Oil corrected volume flow For the following order code: Displays the currently Signed floating-point – • "Application package", option calculated volume flow of the number EJ "Petroleum"...
Page 156 Operation Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description User interface Factory setting Weighted density average For the following order code: Displays the weighted average Signed floating-point – • "Application package", option for the density since the last number EJ "Petroleum"...
Page 157 Proline Promass X 300 PROFIBUS PA Operation Parameter overview with brief description Parameter Prerequisite Description Selection / User entry / User interface Assign process variable – Select process variable for totalizer. • Mass flow • Volume flow • Corrected volume flow • Target mass flow •...
Page 158 Operation Proline Promass X 300 PROFIBUS PA Input values of current input The Current input 1 to n submenu contains all the parameters needed to display the current measured values for every current input. Navigation "Diagnostics" menu → Measured values → Input values → Current input 1 to n ‣...
Page 159 Proline Promass X 300 PROFIBUS PA Operation ‣ Pulse/frequency/switch output →  159 1 to n ‣ Relay output 1 to n →  160 Output values of current output The Value current output submenu contains all the parameters needed to display the current measured values for every current output.
Page 160 Operation Proline Promass X 300 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description User interface Output frequency 1 to n In the Operating mode parameter, the Displays the value currently measured 0.0 to 12 500.0 Hz Frequency option is selected.
Page 161 Proline Promass X 300 PROFIBUS PA Operation Function range of "Control Totalizer " parameter Options Description Totalize The totalizer is started. Reset + hold The totaling process is stopped and the totalizer is reset to 0. Preset + hold The totaling process is stopped and the totalizer is set to its defined start value from the Preset value 1 to n parameter.
Page 162 Operation Proline Promass X 300 PROFIBUS PA / ../XXXXXXXX 175.77 40.69 kg/h -100s A0016357  29 Chart of a measured value trend • x-axis: depending on the number of channels selected displays 250 to 1000 measured values of a process variable.
Page 163 Proline Promass X 300 PROFIBUS PA Operation Parameter overview with brief description Parameter Prerequisite Description Selection / User entry / User interface Assign channel 1 The Extended HistoROM application Assign process variable to logging • Off package is available. channel. • Mass flow •...
Page 164 Operation Proline Promass X 300 PROFIBUS PA Parameter Prerequisite Description Selection / User entry / User interface Assign channel 3 The Extended HistoROM application Assign a process variable to logging For the picklist, see Assign package is available. channel. channel 1 parameter (→  163) ...
Page 165 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For local display Error Possible causes Remedial action Local display is dark, but signal output is within The cable of the display module is not plugged in...
Page 166 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA For access Fault Possible causes Remedial action Write access to parameters is not possible. Hardware write protection is enabled. Set the write protection switch on the main electronics module to the OFF position →...
Page 167 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Fault Possible causes Remedial action Operation with FieldCare or DeviceCare via Firewall of the PC or network is blocking Depending on the settings of the firewall used service interface CDI-RJ45 (port 8000) is not communication.
Page 168 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA 12.2 Diagnostic information via light emitting diodes 12.2.1 Transmitter Different LEDs in the transmitter provide information on the device status. 1 2 3 4 5 A0029629 Supply voltage Device status Not used...
Page 169 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting 12.3 Diagnostic information on local display 12.3.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display.
Page 170 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. Warning • Measurement is resumed. • The signal outputs and totalizers are not affected.
Page 171 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting 12.3.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage...
Page 172 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA A0031056 Status area with status signal Diagnostic information Remedial measures with service ID In addition, diagnostic events which have occurred can be shown in the Diagnostics menu: • Via parameter →  229 •...
Page 173 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Xxxxxx/…/…/ Device name: Xxxxxxx Mass flow: kg/h 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status signal: Function check (C) Xxxxxx Diagnostics 1: C485 Simu... Remedy information: Deactivate... Failure (F)
Page 174 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA The user is in the Diagnostics menu. 1. Call up the desired parameter. 2. On the right in the working area, mouse over the parameter.  A tool tip with remedy information for the diagnostic event appears.
Page 175 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Coding Measuring value (hex) Byte 5 Quality Quality Substatus Limits A0032228-EN  31 Structure of the coding byte The content of the coding byte depends on the configured failure mode in the individual function block.
Page 176 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information pertaining to the electronics: diagnostic number 200 to 399 Diagnostic number 200 to 301, 303 to 399 Measured value status (fixed assignment) Diagnostic behavior Device diagnostics Quality Coding Category...
Page 177 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Measured value status (fixed assignment) Diagnostic behavior Device diagnosis Quality Coding Category (configurable) (fixed assignment) Quality Substatus (hex) (NE107) Logbook entry only GOOD 0x80 to 0x8E – – 12.7 Overview of diagnostic information •...
Page 178 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 046 Sensor limit exceeded 1. Inspect sensor 2. Check process condition Measured variable status [from the factory] Quality Good Quality substatus Maintenance demanded Coding (hex)
Page 179 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 062 Sensor connection faulty 1. Check or replace sensor electronic module (ISEM) 2. If available: Check connection cable between sensor and transmitter Measured variable status 3.
Page 180 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 063 Exciter current faulty 1. Check or replace sensor electronic module (ISEM) 2. If available: Check connection cable between sensor and transmitter Measured variable status 3.
Page 181 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 082 Data storage 1. Check module connections 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 182 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 083 Memory content 1. Restart device 2. Restore HistoROM S-DAT backup (' D evice reset' parameter) Measured variable status 3. Replace HistoROM S-DAT Quality Quality substatus...
Page 183 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 140 Sensor signal asymmetrical 1. Check or replace sensor electronic module (ISEM) 2. If available: Check connection cable between sensor and transmitter Measured variable status [from the factory] 3.
Page 184 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 144 Measuring error too high 1. Check or change sensor 2. Check process conditions Measured variable status [from the factory] Quality Quality substatus Maintenance alarm...
Page 185 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting 12.7.2 Diagnostic of electronic Diagnostic information Remedy instructions Short text 201 Device failure 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 186 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 242 Software incompatible 1. Check software 2. Flash or change main electronics module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 187 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 252 Modules incompatible 1. Check electronic modules 2. Check if correct modules are available (e.g. NEx, Ex) Measured variable status 3. Replace electronic modules Quality...
Page 188 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 262 Sensor electronic connection faulty 1. Check or replace connection cable between sensor electronic module (ISEM) and main electronics Measured variable status 2. Check or replace ISEM or main electronics...
Page 189 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 270 Main electronic failure Change main electronic module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 190 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 271 Main electronic failure 1. Restart device 2. Change main electronic module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 191 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 272 Main electronic failure 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 192 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 273 Main electronic failure Change electronic Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 193 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 276 I/O module 1 to n faulty 1. Restart device 2. Change I/O module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 194 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 302 Device verification active Device verification active, please wait. Measured variable status [from the factory] Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF...
Page 195 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 311 Electronic failure 1. Do not reset device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 196 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 332 Writing in HistoROM backup failed Replace user interface board Ex d/XP: replace transmitter Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 197 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 372 Sensor electronic (ISEM) faulty 1. Restart device 2. Check if failure recurs Measured variable status 3. Replace sensor electronic module (ISEM) Quality Quality substatus...
Page 198 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 373 Sensor electronic (ISEM) faulty 1. Transfer data or reset device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 199 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 375 I/O- 1 to n communication failed 1. Restart device 2. Check if failure recurs Measured variable status 3. Replace module rack inclusive electronic modules...
Page 200 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 382 Data storage 1. Insert T-DAT 2. Replace T-DAT Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 201 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 383 Memory content 1. Restart device 2. Delete T-DAT via ' R eset device' parameter Measured variable status 3. Replace T-DAT Quality Quality substatus Maintenance alarm...
Page 202 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 387 HistoROM backup failed Contact service organization Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 203 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 331 Firmware update failed 1. Update firmware of device 2. Restart device Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 204 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 410 Data transfer 1. Check connection 2. Retry data transfer Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 205 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 412 Processing download Download active, please wait Measured variable status Quality Uncertain Quality substatus Initial value Coding (hex) 0x4C to 0x4F Status signal Diagnostic behavior...
Page 206 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 437 Configuration incompatible 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 207 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 438 Dataset 1. Check data set file 2. Check device configuration Measured variable status 3. Up- and download new configuration Quality Uncertain Quality substatus Maintenance demanded...
Page 208 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 442 Frequency output 1 to n 1. Check process 2. Check frequency output settings Measured variable status [from the factory] Quality Good Quality substatus Function check...
Page 209 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 453 Flow override Deactivate flow override Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Influenced measured variables •...
Page 210 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 482 FB not Auto/Cas Set Block in AUTO mode Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior...
Page 211 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 485 Measured variable simulation Deactivate simulation Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Influenced measured variables •...
Page 212 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 491 Current output 1 to n simulation Deactivate simulation Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal...
Page 213 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 494 Switch output simulation 1 to n Deactivate simulation switch output Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF...
Page 214 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 497 Simulation block output Deactivate simulation Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior Warning Influenced measured variables –...
Page 215 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 529 Concentration settings faulty 1. Check concentration settings 2. Check input values e.g. pressure, temperature Measured variable status Quality Quality substatus Function check Coding (hex)
Page 216 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA 12.7.4 Diagnostic of process Diagnostic information Remedy instructions Short text 803 Current loop 1. Check wiring 2. Change I/O module Measured variable status Quality Quality substatus Process related Coding (hex) 0x28 to 0x2B...
Page 217 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 831 Sensor temperature too low Increase ambient temp. around the sensor housing Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex)
Page 218 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 832 Electronic temperature too high Reduce ambient temperature Measured variable status [from the factory] Quality Quality substatus Process related Coding (hex) 0x28 to 0x2B Status signal...
Page 219 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 833 Electronic temperature too low Increase ambient temperature Measured variable status [from the factory] Quality Quality substatus Process related Coding (hex) 0x28 to 0x2B Status signal...
Page 220 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 834 Process temperature too high Reduce process temperature Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex) 0x78 to 0x7B...
Page 221 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 835 Process temperature too low Increase process temperature Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex) 0x78 to 0x7B...
Page 222 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 842 Process limit Low flow cut off active! 1. Check low flow cut off configuration Measured variable status [from the factory] Quality Uncertain Quality substatus...
Page 223 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 882 Input signal 1. Check input configuration 2. Check external device or process conditions Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 224 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 910 Tubes not oscillating 1. Check electronic 2. Inspect sensor Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 225 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 912 Medium inhomogeneous 1. Check process cond. 2. Increase system pressure Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex)
Page 226 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 913 Medium unsuitable 1. Check process conditions 2. Check electronic modules or sensor Measured variable status [from the factory] Quality Uncertain Quality substatus Process related...
Page 227 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 942 API density out of specification 1. Check process density with selected API commodity group 2. Check API related parameters Measured variable status Quality Quality substatus...
Page 228 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Diagnostic information Remedy instructions Short text 944 Monitoring failed Check process conditions for Heartbeat Monitoring Measured variable status [from the factory] Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 229 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting 12.8 Pending diagnostic events The Diagnostics menu allows the user to view the current diagnostic event and the previous diagnostic event separately. To call up the measures to rectify a diagnostic event: •...
Page 230 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA / ../Diagnose list Diagnostics F273 Main electronic Diagnostics 2 Diagnostics 3 A0014006-EN  32 Using the example of the local display To call up the measures to rectify a diagnostic event: •...
Page 231 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting 12.10.2 Filtering the event logbook Using the Filter options parameter you can define which category of event message is displayed in the Events list submenu. Navigation path Diagnostics → Event logbook → Filter options Filter categories •...
Page 232 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Info number Info name I1451 Monitoring on I1457 Measured error verification failed I1459 I/O module verification failed I1460 HBSI verification failed I1461 Sensor verification failed I1462 Sensor electronic module verific. failed...
Page 233 Proline Promass X 300 PROFIBUS PA Diagnostics and troubleshooting Options Description Restart device The restart resets every parameter with data stored in volatile memory (RAM) to the factory setting (e.g. measured value data). The device configuration remains unchanged. Restore S-DAT backup Restores the data that is saved on the S-DAT.
Page 234 Diagnostics and troubleshooting Proline Promass X 300 PROFIBUS PA Parameter Description User interface Factory setting Firmware version Shows the device firmware version installed. Character string in the format – xx.yy.zz Device name Shows the name of the transmitter. Promass 300/500 –...
Page 235 "Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: •...
Page 236 13.2 Measuring and test equipment Endress+Hauser offers a variety of measuring and testing equipment, such as Netilion or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.
Page 237 • The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.
Page 238 Repair Proline Promass X 300 PROFIBUS PA 14.5 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste.
Page 239 Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 240 Via the Internet: https://portal.endress.com/webapp/applicator Netilion lloT ecosystem: Unlock knowledge With the Netilion IIoT ecosystem,Endress+Hauser allows you to optimize your plant performance, digitize workflows, share knowledge, and enhance collaboration. Drawing upon decades of experience in process automation, Endress+Hauser offers the process industry an IIoT ecosystem designed to effortlessly extract insights from data.
Page 241 Proline Promass X 300 PROFIBUS PA Technical data Technical data 16.1 Application The measuring device is intended only for the flow measurement of liquids and gases. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.
Page 242 Technical data Proline Promass X 300 PROFIBUS PA 16.3 Input Measured variable Direct measured variables • Mass flow • Density • Temperature Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring range for liquids Measuring range full scale values ...
Page 243 • Operating pressure to increase measurement accuracy (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar •...
Page 244 Technical data Proline Promass X 300 PROFIBUS PA Input signal level • Low signal: DC –3 to +5 V • High signal: DC 12 to 30 V Assignable functions • Off • Reset the individual totalizers separately • Reset all totalizers •...
Page 245 Proline Promass X 300 PROFIBUS PA Technical data 16.4 Output Output signal PROFIBUS PA PROFIBUS PA In accordance with EN 50170 Volume 2, IEC 61158-2 (MBP), galvanically isolated Data transmission 31.25 kbit/s Current consumption 10 mA Permitted supply voltage 9 to 32 V...
Page 246 Technical data Proline Promass X 300 PROFIBUS PA Load 0 to 700 Ω Resolution 0.38 µA Damping Configurable: 0 to 999 s Assignable measured • Mass flow variables • Volume flow • Corrected volume flow • Density • Reference density •...
Page 247 Proline Promass X 300 PROFIBUS PA Technical data Assignable measured • Mass flow variables • Volume flow • Corrected volume flow • Density • Reference density • Temperature • Electronics temperature • Oscillation frequency 0 • Oscillation damping 0 • Signal asymmetry •...
Page 248 Technical data Proline Promass X 300 PROFIBUS PA Maximum switching • DC 30 V, 0.1 A capacity (passive) • AC 30 V, 0.5 A Assignable functions • Disable • On • Diagnostic behavior • Limit • Mass flow • Volume flow •...
Page 249 Proline Promass X 300 PROFIBUS PA Technical data Pulse/frequency/switch output Pulse output Fault mode Choose from: • Actual value • No pulses Frequency output Fault mode Choose from: • Actual value • 0 Hz • Definable value between: 2 to 12 500 Hz...
Page 250 Technical data Proline Promass X 300 PROFIBUS PA Low flow cut off The switch points for low flow cut off are user-selectable. Galvanic isolation The outputs are galvanically isolated: • from the power supply • from one another • from the potential equalization (PE) terminal...
Page 251 Proline Promass X 300 PROFIBUS PA Technical data Supply voltage Order code Terminal voltage Frequency range "Power supply" Option D DC 24 V ±20% – Option E AC 100 to 240 V –15…+10% 50/60 Hz DC 24 V ±20% –...
Page 252 Technical data Proline Promass X 300 PROFIBUS PA 16.6 Performance characteristics Reference operating • Error limits based on ISO 11631 conditions • Water • +15 to +45 °C (+59 to +113 °F) • 2 to 6 bar (29 to 87 psi) •...
Page 253 Proline Promass X 300 PROFIBUS PA Technical data SI units 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 4 100 000 410 000 205 000 82 000 41 000 8 200 4 100 000 410 000...
Page 254 Technical data Proline Promass X 300 PROFIBUS PA Influence of ambient Current output temperature Temperature coefficient Max. 1 μA/°C Pulse/frequency output Temperature coefficient No additional effect. Included in accuracy. Influence of medium Mass flow temperature o.f.s. = of full scale value...
Page 255 Proline Promass X 300 PROFIBUS PA Technical data [% o.r./bar] [% o.r./psi] [mm] [in] –0.009 –0.0006 –0.009 –0.0006 –0.009 –0.0006 Design fundamentals o.r. = of reading, o.f.s. = of full scale value BaseAccu = base accuracy in % o.r., BaseRepeat = base repeatability in % o.r.
Page 256 The device is suitable for use outdoors and indoors with a relative humidity of 4 to 95 %. Operating height According to EN 61010-1 • ≤ 2 000 m (6 562 ft) • > 2 000 m (6 562 ft) with additional overvoltage protection (e.g. Endress+Hauser HAW Series) Degree of protection Transmitter •...
Page 257 Proline Promass X 300 PROFIBUS PA Technical data Electromagnetic • As per IEC/EN 61326 and NAMUR Recommendation 21 (NE 21) compatibility (EMC) • As per IEC/EN 61000-6-2 and IEC/EN 61000-6-4 Details are provided in the Declaration of Conformity. This unit is not intended for use in residential environments and cannot guarantee adequate protection of the radio reception in such environments.
Page 258 Technical data Proline Promass X 300 PROFIBUS PA testing. The corresponding type test declaration can be ordered with the device (order code for "Additional approval", option LN "Sensor housing burst pressure, type test"). Sensor housing burst pressure [mm] [in] [bar] [psi] For information on the dimensions: see the "Mechanical construction"...
Page 259 Proline Promass X 300 PROFIBUS PA Technical data Different values due to different transmitter versions: • Transmitter version for the hazardous area (Order code for "Housing", option A "Aluminum, coated"; Ex d): +2 kg (+4.4 lbs) • Cast transmitter version, stainless (Order code for "Housing", option L "Cast, stainless"): +6 kg (+13 lbs)
Page 260 Technical data Proline Promass X 300 PROFIBUS PA Order code for "Housing", option L "Cast, stainless" The various cable entries are suitable for hazardous and non-hazardous areas. Cable entry/cable gland Material Cable gland M20 × 1.5 Stainless steel, 1.4404 (316L) Adapter for cable entry with female thread G ½"...
Page 261 Proline Promass X 300 PROFIBUS PA Technical data Surface roughness All data refer to parts in contact with the medium. The following surface roughness categories can be ordered: Not polished 16.11 Operability Languages Can be operated in the following languages: •...
Page 262 Technical data Proline Promass X 300 PROFIBUS PA Via remote display and operating module DKX001 The remote display and operating module DKX001 is available as an optional extra →  239.. • The measuring instrument is always supplied with a dummy cover when the remote display and operating module DKX001 is ordered directly with the measuring instrument.
Page 263 Proline Promass X 300 PROFIBUS PA Technical data Supported operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.
Page 264 Technical data Proline Promass X 300 PROFIBUS PA • Export parameter settings (.csv file or PDF file, document the measuring point configuration) • Export the Heartbeat Technology verification report (PDF file, only available with the Heartbeat Verification →  267 application package) •...
Page 265 The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. UKCA marking The device meets the legal requirements of the applicable UK regulations (Statutory Instruments).
Page 266 Directive a) PED/G1/x (x = category) or b) PESR/G1/x (x = category) on the sensor nameplate, Endress+Hauser confirms compliance with the "Essential Safety Requirements" a) specified in Annex I of the Pressure Equipment Directive 2014/68/EU or b) Schedule 2 of Statutory Instruments 2016 No. 1105.
Page 267 The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 268 Technical data Proline Promass X 300 PROFIBUS PA Comprises extended functions concerning the event log and the activation of the measured value memory. Event log: Memory volume is extended from 20 message entries (standard version) to up to 100 entries.
Page 269 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Standard documentation Brief Operating Instructions...
Page 270 Technical data Proline Promass X 300 PROFIBUS PA Brief Operating Instructions for transmitter Measuring device Documentation code Proline 300 KA01227D Technical Information Measuring device Documentation code Promass X 300 TI01279D Description of Device Parameters Documentation code PROFINET with FOUNDATIO PROFIBUS...
Page 271 Proline Promass X 300 PROFIBUS PA Technical data Special documentation Contents Documentation code Information on the Pressure Equipment Directive SD01614D Remote display and operating module DKX001 SD01763D Radio approvals for WLAN interface for A309/A310 display module SD01793D Web server SD01664D...
Page 272 Index Proline Promass X 300 PROFIBUS PA Index Cyclic data transmission ..... . 79 Access authorization to parameters Read access ......60 Date of manufacture .
Page 273 Proline Promass X 300 PROFIBUS PA Index Displaying the measured value history ... 161 Disposal ....... . . 238 Galvanic isolation .
Page 274 Index Proline Promass X 300 PROFIBUS PA Removing ......238 Netilion ....... . . 236 Repairs .
Page 275 Proline Promass X 300 PROFIBUS PA Index Relay output ......111 Return ........237 Relay output 1 to n (Submenu) .
Page 276 Index Proline Promass X 300 PROFIBUS PA Status signals ......169, 172 see Measuring device design Storage concept .
Page 277 Proline Promass X 300 PROFIBUS PA Index Density adjustment ..... . 123 Display ....... . 114 Low flow cut off .
