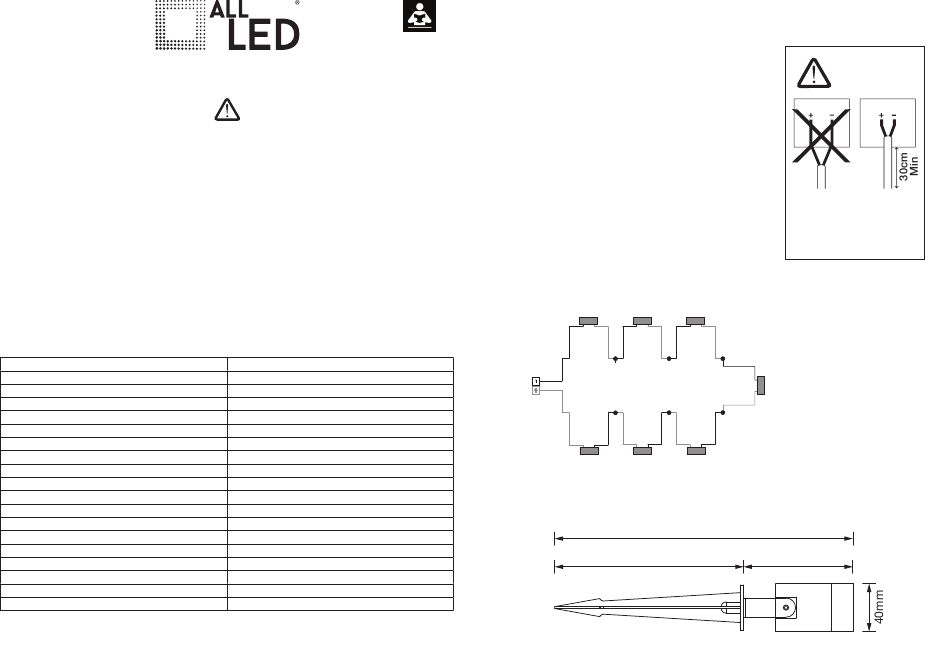

All LED ASPK3CC/30 Installation Manual & User Manual

INSTALLATION GUIDE & USER MANUAL
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL EQUIPMENT.
• This product must be installed by a qualified electrical installer.
• All electrical work should be completed in accordance with the latest IET regulations, or any other relevant rules,
regulations or laws of the country in which it is being installed.
• This item is suitable for humid environments when installed correctly and carries an ingress protection rating of IP65.
• This item is suitable for installation on the ground, however please ensure the item is isolated from any areas where it
can be knocked over or could pose a risk to people.
• Ensure the spike accessory is firmly pushed into the ground and install in an area where the ground has good
drainage and is not permanently wet.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of electrical work.
• The company MUST be contacted immediately for advice or swift resolution of any matters concerning any of ALL
LED's products.
• Ensure the luminaire is installed at least 0.5M from any objects. Please be mindful of dry foliage or similar flammable
materials that may cause a fire risk.
Technical Specifications
Product Code
Luminous Flux (LM)
Useful Luminous Flux (LM)
CCT (Kelvin)
Beam Angle (°)
SDCM
CRI
Peak Intensity (cd)
Max Output Power (W)
Operating Current (A max)
Class
Body Material
Frame Colour
Ingress Protection
Ambient Operating Temperature (°C)
Cable Length
Life Time (L70 B50)
Lumen Maintenance Factor
Guarantee
ASPK3CC/30
ASPK3CC/30
175lm
175lm
3000K
25°
<6
>90
746cd
3.15W
350mA
III
Aluminium
Carbon Black
IP65
-20°C ~ +45°C
2.5m
20,000 Hrs
0.95
3 Years
!
Installation Instructions
1. We recommend checking the products for suitability prior to
PLEASE READ
installation.
BEFORE USE!
2. Turn off power supply at source to avoid any risk of electric
shock.
3. Locate where the product is to be installed.
4. Cut the appropriate size hole according to the product. If
installing in the ground, please use a 300mm thick layer of
gravel with a diameter of 300mm to support drainage. Do
not install this product into an area that is constantly wet or
where water has a chance to pool. Drainage is an absolute
requirement.
5. Connect the luminaires as shown in the SERIES WIRING
DIAGRAM BELOW.
6. Connect the +/- to the LED driver (not incl.).
7. Connect the AC input of the LED driver to the relevant
electrical circuit.
8. Double check the connections and the overall installation.
9. Turn the power supply on and check the item is functioning as
it should.
Series Wiring Diagram
LED Driver
Output
Dimensions (mm)
Waterproof Enclosure
ALLOW DRIVER
SUFFICIENT TIME TO
DISCHARGE DO NOT WIRE
THIS FIXTURE WHEN
DRIVER IS ON
Please note this diagram is for
indicative purposes only.
Actual wiring may differ.
250mm
158mm 92mm
Waterproof Enclosure
