All LED ASPK600/30 Installation Manual & User Manual

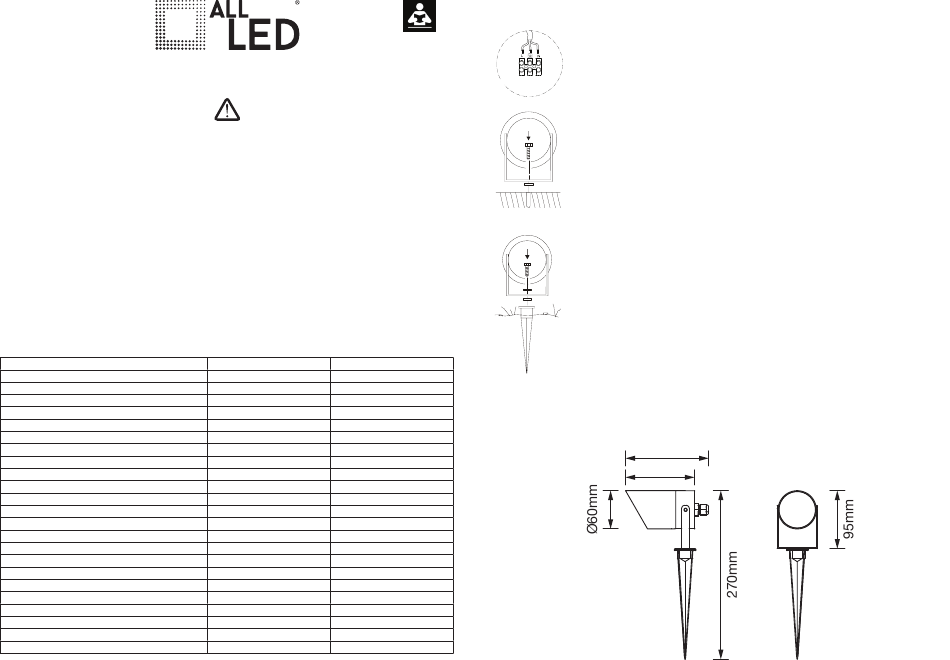

INSTALLATION GUIDE & USER MANUAL
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL EQUIPMENT.
• This product must be installed by a qualified electrical installer.
• All electrical work should be completed in accordance with the latest IET regulations, or any other relevant rules,
regulations or laws of the country in which it is being installed.
• This item is suitable for humid environments when installed correctly and carries an ingress protection rating of IP65.
• This item is suitable for installation on the ground, however please ensure the item is isolated from any areas where it
can be knocked over or could pose a risk to people.
• Ensure the spike accessory is firmly pushed into the ground and install in an area where the ground has good
drainage and is not permanently wet.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of electrical work.
• The company MUST be contacted immediately for advice or swift resolution of any matters concerning any of ALL
LED's products.
• Ensure the luminaire is installed at least 0.5M from any objects. Please be mindful of dry foliage or similar flammable
materials that may cause a fire risk.
Technical Specifications
Product Code
Luminous Flux (LM)
Useful Luminous Flux (LM)
CCT (Kelvin)
Beam Angle (°)
SDCM
CRI
Peak Intensity (cd)
Operating Voltage (V)
Max Output Power (W)
Operating Current (A max)
Standby Power (W)
Power Factor (Pf)
Class
Body Material
Frame Colour
Switching Cycles
Ingress Protection
Ambient Operating Temperature (°C)
Input Frequency (Hz)
Guarantee
Dimmable
Cable Length
Lifetime (L70 B50)
ASPK600
ASPK600/30 ASPK600/40
550lm
550lm
3000K
20
<6
>80
3418
220-240V AC 220-240V AC
6W
0.035A
<0W
>0.7
I
Aluminium Aluminium
Carbon Black Carbon Black
15,000
IP65
-20°C~40°C -20°C~40°C
50/60Hz 50/60Hz
3 Years
No
2.5m
25,000 Hrs 25,000 Hrs
!
Installation Instructions
PLEASE READ
BEFORE USE!
600lm
600lm
4000K
Dimensions (mm)
20
<6
>80
3075
6W
0.035A
<0W
>0.7
I
15,000
IP65
3 Years
No
2.5m
1. We recommend checking the installation of the products for suitability prior to installation.
2. Turn off power supply at source to avoid any risk of electric shock.
3. Connect the luminiare to the relevant electrical circuit, ensuring the connection is waterproof
and protected from water ingress.
4. To secure the luminaire to a surface, prepare the surface to receive the unit. Use the
appropriate method of securing the luminaire according to the substrate it is being fixed to.
Use the hole on the mounting bracket to secure the item onto the surface.
5. If securing into the ground, affix the unit to the spike accessory (included), and firmly push
the luminaire assembly into the ground.
6. Turn the power supply back on and test the luminaire to test its function.
122mm
109mm
