Summary of Contents for Center C232

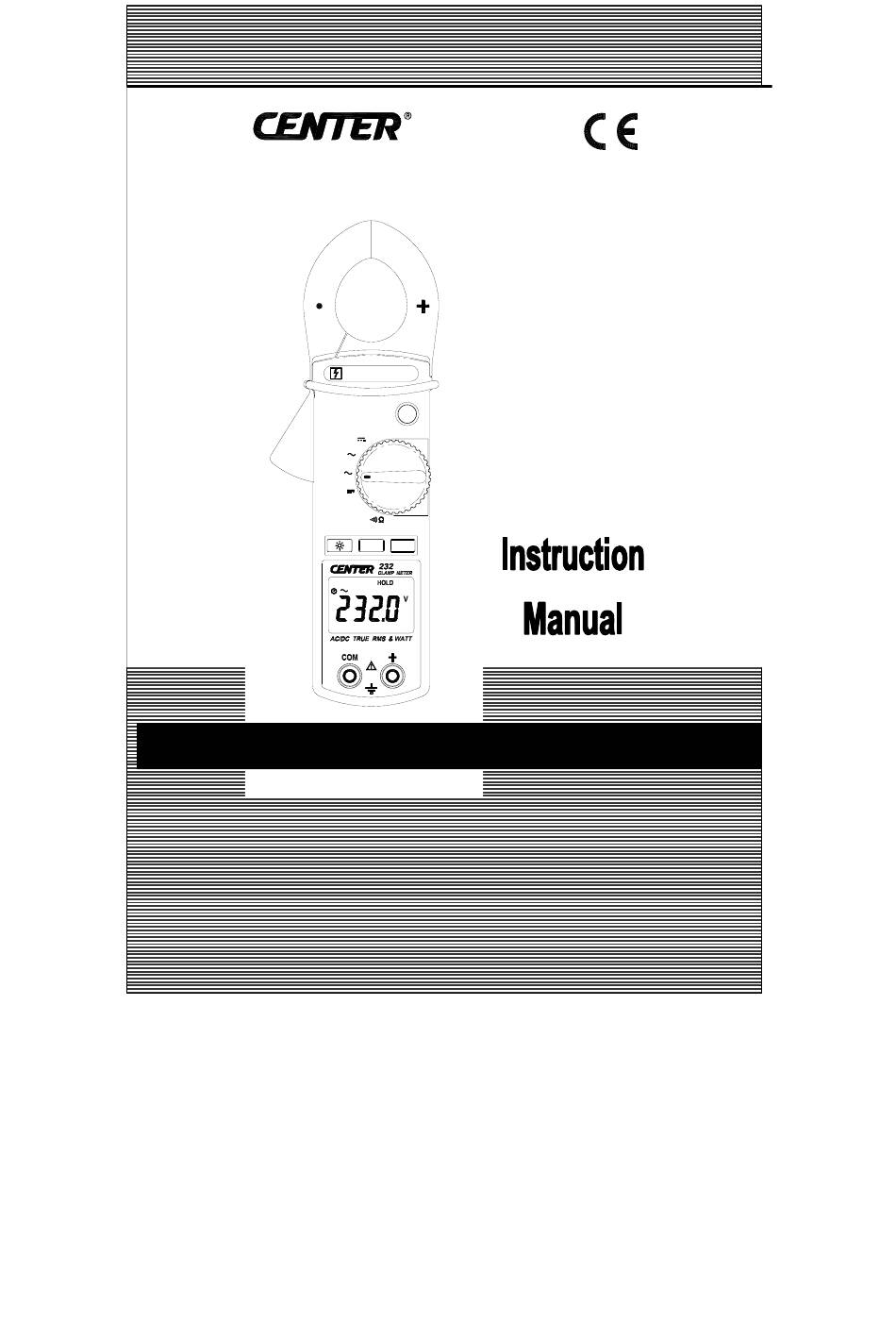

- Page 1 2 3 2 CLAM P M ET ER 600V CAT 600A HOLD PEAK ZERO 600V CAT III AC\DC T RU E RM S & WAT T...
- Page 2 CON T EN T S TITLE PAGE Sa fe t y I nfor m at ion ………………………………..…………..….1 Environmental Conditions………………………………….…..….…. 1 Explanation of Symbols……………….………………….…………… 1 I I . Spe c ific at ion………..……………………………………………… 2 General Specification……………………...………………………….. 2 Electrical Specification……………………………...…………………. 3 I I I . I nst rum e nt Fa m ilia rizat ion……………..………………………4 Symbol Definition……………………………………………………….
- Page 3 Sa fe t y I nform a t ion – Re a d first • Read the user manual before use and follow all safety information. • Use the meter only as specified in this user manual. Otherwise meter protection may be impaired. •...
- Page 4 I I . Spe c ific a t ion Ge ne ra l Spe c ific at ion: Digital Display: 4 digits LCD display with maximum reading 9999 Symbol and Scale range: Automatic display according symbols and range input signal. Polarity: Displayed when negative signal applied to the input.
- Page 5 Ele c t ric a l Spe c ific at ion: The accuracy specification is defined as...
- Page 6 I I I . I nst rum e nt Fa m ilia riza t ion: Sym bol De finit ion: Pa r t a nd Posit ion : 600V CAT 600A HOLD WARNING IEC 1010 600V CAT I POLLUTION DEGREE 2 PEAK ZERO 600V...
- Page 7 I V. M e a suring I nst ruc t ion: 4.1 Current Measurement: Switch the main function selector to “ACA“ current range. Open the clamp by pressing the jaw-opening handle and insert the cable to be measured into the jaw. Switch the main function selector to “DCA”...
- Page 8 4.2 Voltage Measurement: Switch the main function selector to “ACV ” or “DCV ” range. Connect red test lead to “+” terminal and black one to the “ COM ” terminal. Measure the voltage by touch the test lead tips to the test circuit where the value of voltage is needed.
- Page 9 4.3 Resistance Measurement and Continuity Test: Switch the main function to “ ” range, check power line disconnected from the system. Connect red test lead to “+” terminal and black one to the “ COM ” terminal. 600V CATIII 600A Connect tips of the test leads to the HOLD points where the value of the resistance...
- Page 10 4.4 Power Measurement: Switch the main function selector to “K W” range. Open the clamp by pressing the jaw-opening handle and insert the cable to be measured into the jaw. Connect red test lead to “+” terminal and black one to the “ COM ” terminal.
- Page 11 Back Light Function: Press the “Back Light” button will turn back light on and Press it once again will turn off. The meter will turn back light off if there is no push “Back Light” button for 30 seconds. ZERO Function: Press the “ZERO”...
- Page 12 When take current measurement, keep the cable at the center of the clamp will get more accurate test result. Repairs or servicing not covered in this manual should be performed only by qualified personal.
- Page 13 CENTER TECHNOLOGY CORP. 4 / F NO. 415, Jung-Jeng Rd., 238 Shu-Lin, Taipei, Taiwan TEL : 886-2-26763926 E-Mail : center@centertek.com FAX : 886-2-26763925 http : / / www.centertek.com 232-00...
