This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.

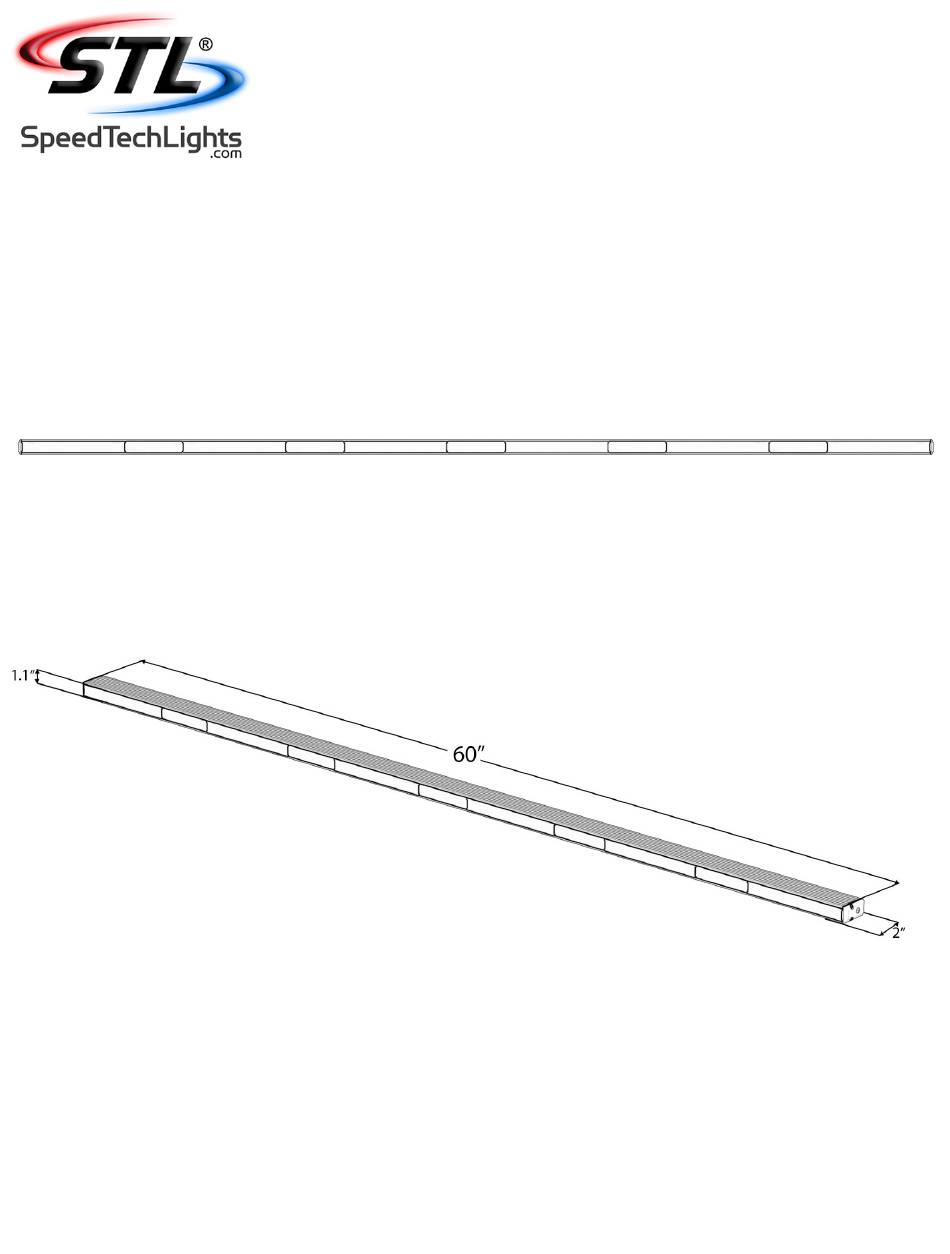

CEPTOR ® RUNNING BOARD LIGHT Wiring Diagram Wire Color Function Wire Color Function Red* Positive Green Steady Burn Override Negative Sync (Max 2 Units) Black* White Yellow Flash Pattern Blue Alternating Sync Programming * Indicates a main power cable. NOTE: All cables except Negative and Sync contact +12 VDC. Specifications Voltage 12 VDC...
Page 5
CEPTOR ® RUNNING BOARD LIGHT Extension Cable (Sold Separately) • If you have an extension cable with no connectors, you will need to cut in the middle of the main cable harness coming out of the Light Bar. You will solder and heat shrink each wire within the cable harness to each wire in the extension cable harness.
Page 6
About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Grand Control Box to cycle through the various patterns.
