Wellbeing

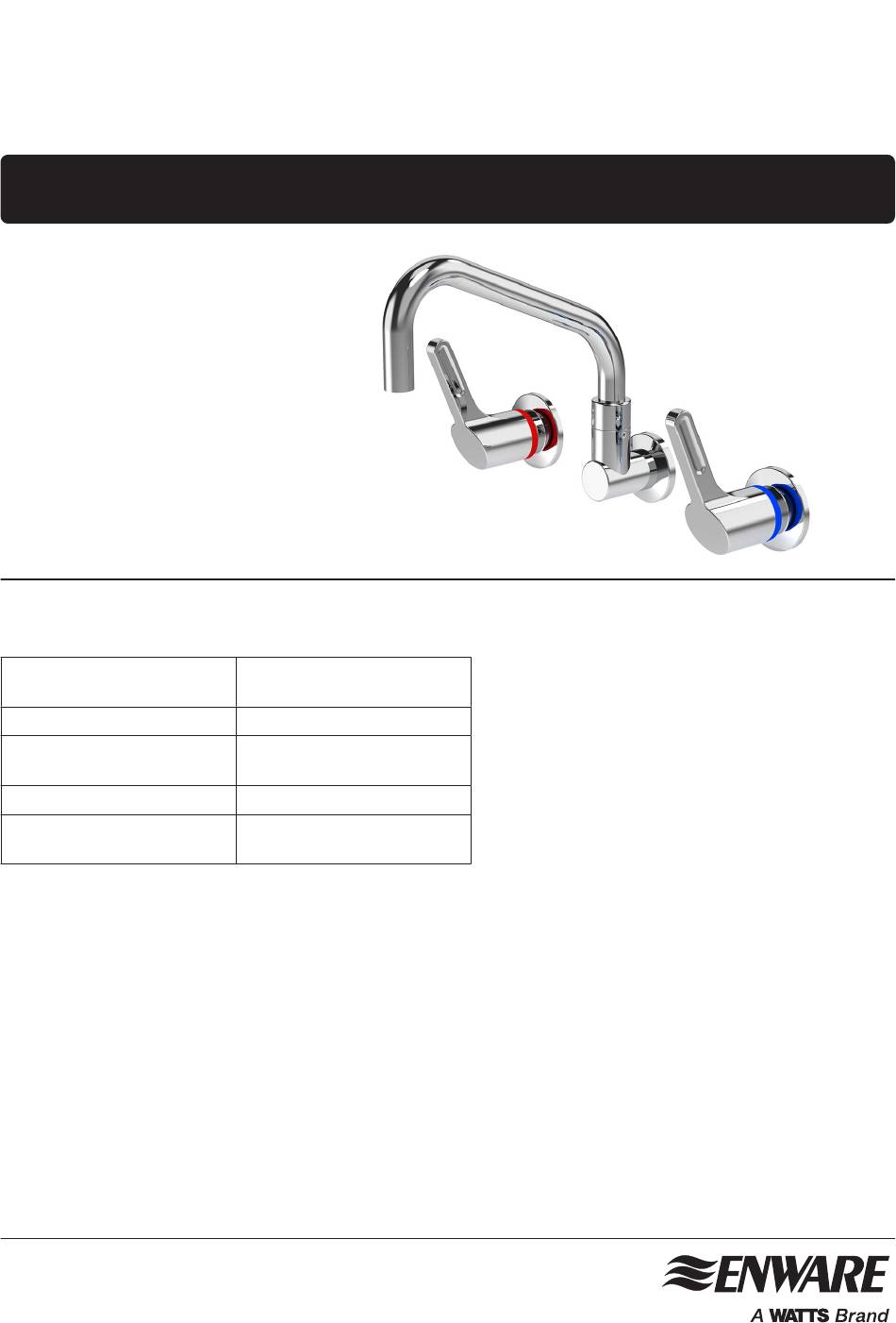

Standard Sink Spout
Installation and Maintenance Instructions
WLC80WSET
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working
Temperature
Inlet Connection
Flow Rate
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00475_20 Jun 2024
1300 369 273 | info@enware.com.au | enware.com.au
Leva 80mm Wall Set with
®
Min 50 kPa
Max 500 kPa
800 kPa
85°C (Ceramic disc)
1/2" BSP
5 L/min (WELS 5 Star)
4 L/min (WELS 6 Star)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE Wellbeing Leva WLC80WSET
Summary of Contents for Watts ENWARE Wellbeing Leva WLC80WSET
- Page 1 Wellbeing Leva 80mm Wall Set with ® Standard Sink Spout Installation and Maintenance Instructions WLC80WSET technical data Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 800 kPa Maximum Working 85°C (Ceramic disc) Temperature Inlet Connection 1/2” BSP Flow Rate 5 L/min (WELS 5 Star) 4 L/min (WELS 6 Star)
- Page 2 RECESS ADAPTOR Handle plug Washer (Nylon) Grub screw M5 Tooth washer M5 Lever handle 80mm 10 Spline adaptor Colour indicator ring 11 Locknut (red/ yellow/ blue) 12 Fibre washer Flange 13 SBA spindle O-ring BS032 Screw M5x20 www.enware.com.au Page 2 ©...
- Page 3 SINK SPOUT 14 Spout 15 Aerator Laminar 5lpm Cache TT 16 Aerator key Cache TT 17 O-ring BS030 18 Wall swivel 19 Dress ring 20 O-ring BS113 www.enware.com.au Page 3 © Enware Pty Ltd...
- Page 4 installation • All supply lines must be flushed thoroughly to remove debris WALL/ prior to the installation of this product. Strainers (40 mesh) TILE SURFACE are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements.
- Page 5 5. Fit spline adaptor [10] onto spindle. Fit tooth washer [9] and washer [8], and fix in place using screw [7]. SEE IMAGE 06 6. Fit colour indicator ring [4] onto lever handle [3]. To do this, place an indicator ring on flat surface with the rebated edge facing up.
- Page 6 INSTALLATION - Sink Spout 1. Prepare 1/2" BSP male inlet thread on wall. Allow for 18mm of thread protruding from finished wall. SEE IMAGE 10 1/2” BSP P 1/2” 2. Take grub screw [2] out of the wall swivel [18], and pull out the spout [14].
- Page 7 maintenance CLEAN AERATOR Clean aerator [15] periodically. Unscrew the aerator using aerator key [16], and rinse it under running water. CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals.
- Page 8 spare parts DESCRIPTION PART CODE Lever handle 80mm WLCS-80378 Parts: [1] [2] [3] [4-red,yellow,blue] [7] [8] [9] [10] Colour indicators Parts: [4-red,yellow,blue] LEV398 SBA hot - RTC (Clockwise to close) Parts: [7] [8] [9] [11] [12] [13] WLCS382RTC SBA cold - LTC (Anti-clockwise to close) Parts: [7] [8] [9] [11] [12] [13] WLCS382LTC Spline adaptor Parts: [10] LEVSQHEX...
- Page 9 DESCRIPTION PART CODE Wall mounted standard sink spout with 5 L/min laminar aerator SPC110 Parts: [14] [15] [16] [17 x2] [18] [19] [20] [2] Aerator laminar insert with key - 5 L/min Cache TT Parts: [15] [16] SPC50LF Aerator laminar insert with key - 3.8 L/min Cache TT Parts: [15] [16] SPC38AF Grub screws, O-rings kit Parts: [2 x4] [17 x8]...
- Page 10 dimensions 5/8" (BSP) 1/2" (BSP) 5/8" (BSP) 100 - 116 100 - 116 Clockwise to Close Anti-Clockwise to Close All measurements are in millimetres. www.enware.com.au Page 10 © Enware Pty Ltd...
- Page 11 - WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
- Page 12 1300 369 273 info@enware.com.au enware.com.au...
