Installation and Maintenance Instructions
WLC150BASIN
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working
Temperature
Inlet Connection
Flow Rate
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00469_19 Jun 2024
1300 369 273 | info@enware.com.au | enware.com.au

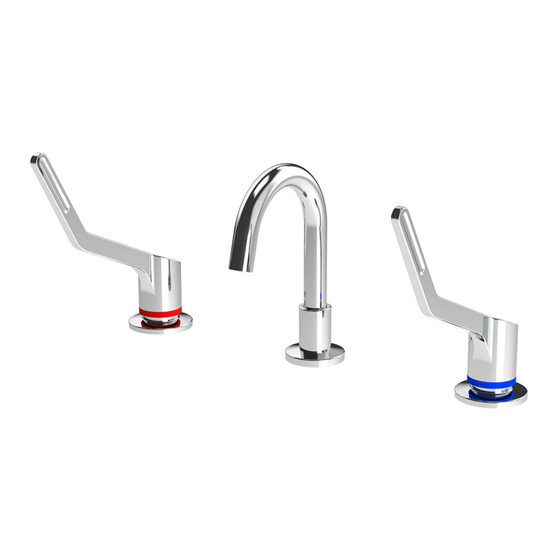

Leva 150mm Basin Set with
®
Min 50 kPa
Max 500 kPa
800 kPa
85°C (Ceramic disc)
1/2" BSP
5 L/min (WELS 5 Star)
4 L/min (WELS 6 Star)
Advertisement
Related Manuals for Watts ENWARE Wellbeing Leva WLC150BASIN
Summary of Contents for Watts ENWARE Wellbeing Leva WLC150BASIN

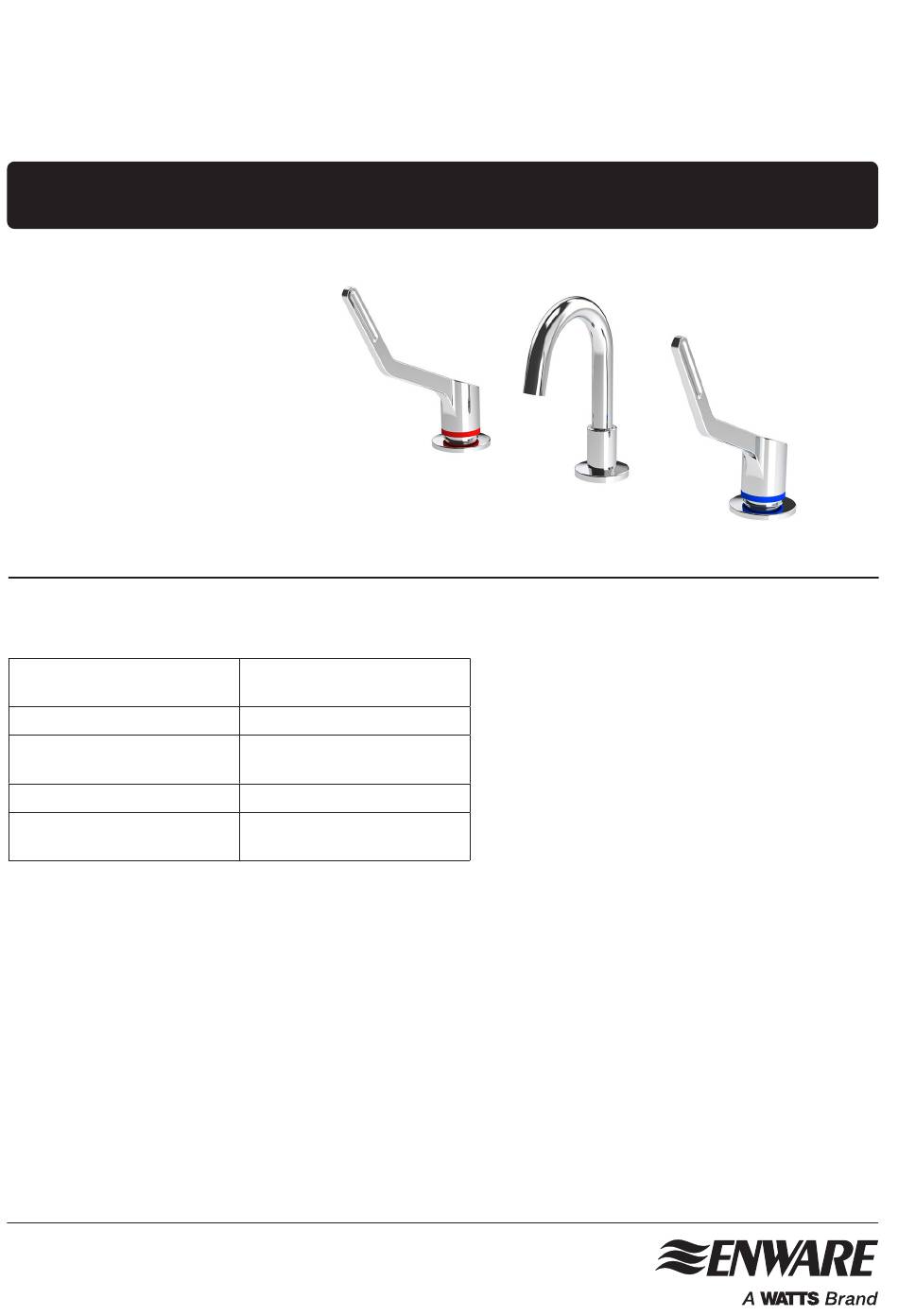

- Page 1 Wellbeing Leva 150mm Basin Set with ® Fixed Spout Installation and Maintenance Instructions WLC150BASIN technical data Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 800 kPa Maximum Working 85°C (Ceramic disc) Temperature Inlet Connection 1/2” BSP Flow Rate 5 L/min (WELS 5 Star) 4 L/min (WELS 6 Star)
- Page 2 BENCH BENCH BENCH Handle plug 15 Back nut & plastic washer Grub screw M5 16 Back nut & fibre washer Lever handle 150mm 17 Tap body Colour indicator ring (red/ 18 Compression nut yellow/ blue) 19 Tee Flange dome 20 O-ring BS008.5 O-ring BS032 21 Spout Screw M5x20...
-
Page 3: Installation Procedure
installation • All supply lines must be flushed thoroughly to remove debris 22 - 25 33 - 35 prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. 2x HANDLE 1x SPOUT •... - Page 4 8. Fit spline adaptor [10] onto spindle. Fit tooth washer [9] and washer [8], and fix in place using screw [7]. SEE IMAGE 06 9. Fit O-ring [6] and flange [5] onto SBA. SEE IMAGE 07 10. Fit colour indicator ring [4] onto lever handle [3]. To do this, place an indicator ring on flat surface with the rebated edge facing up.
-
Page 5: Maintenance
maintenance CLEAN AERATOR Clean aerator [25] periodically. Unscrew the aerator using aerator key [26], and rinse it under running water. CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. -
Page 6: Spare Parts
spare parts BENCH BENCH BENCH DESCRIPTION PART CODE Lever handle 150mm Parts: [1] [2] [3] [4-red,yellow,blue] [7] [8] [9] [10] WLCS-150378 Colour indicators Parts: [4-red,yellow,blue] LEV398 SBA cold - RTC (Clockwise to close) Parts: [7] [8] [9] [11] [13] [14] WLCS381RTC SBA hot - LTC (Anti-clockwise to close) Parts: [7] [8] [9] [11] [12] [14] WLCS381LTC... - Page 7 dimensions 1/2"(BSP) WITH OLIVE 150 - 300 COMPRESSION (106) (CUT TO SUIT ON SITE) FITTING All measurements are in millimetres. Water Flow Projection SPC001 Flow Rate: 5 L/min Laminar 500kPa 350kPa 150kPa www.enware.com.au Page 7 © Enware Pty Ltd...
-
Page 8: Product Warranty Statement
- WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
