Wellbeing
Installation and Maintenance Instructions
WLC80HT-LTC
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working
Temperature
Inlet Connection
Outlet Connection
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00570_19 Jun 2024
1300 369 273 | info@enware.com.au | enware.com.au

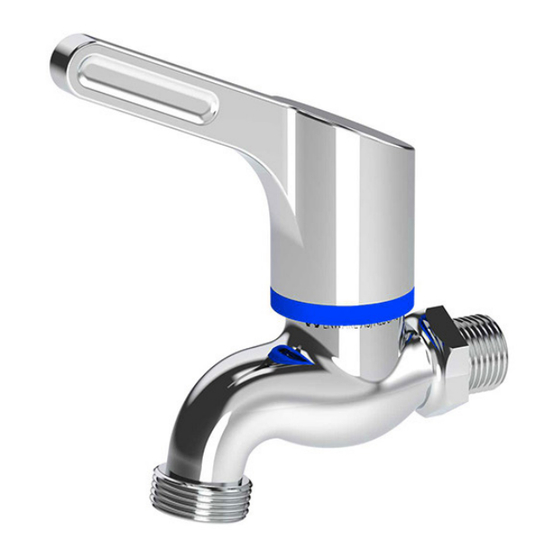

Leva 80mm Hose Cock
®
Min 50 kPa
Max 500 kPa
800 kPa
85°C (Ceramic disc)
1/2" BSP
3/4" BSP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE Wellbeing WLC80HT-LTC
Summary of Contents for Watts ENWARE Wellbeing WLC80HT-LTC
- Page 1 Wellbeing Leva 80mm Hose Cock ® Installation and Maintenance Instructions WLC80HT-LTC technical data Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 800 kPa Maximum Working 85°C (Ceramic disc) Temperature Inlet Connection 1/2” BSP Outlet Connection 3/4” BSP Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
- Page 2 Handle plug Washer (Nylon) Grub screw M5 Tooth washer M5 Lever handle 80mm Spline adaptor Colour indicator ring SBA spindle (red/ yellow/ blue) 10 Body Screw M5x20 www.enware.com.au Page 2 © Enware Pty Ltd...
-
Page 3: Installation
installation • All supply lines must be flushed thoroughly to remove debris prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements. - Page 4 5. Fit colour indicator ring [4] onto lever handle [3]. To do this, place an indicator ring on flat surface with the rebated edge facing up. Press the lever handle down onto the indicator ring evenly until it clips into place. SEE IMAGE 05-1 If an indicator ring needs to be removed, place lever handle on a flat surface and apply pressure to the side of the indicator ring, until the ring pops off.
-
Page 5: Maintenance
maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface. -
Page 6: Spare Parts
spare parts DESCRIPTION PART CODE Lever handle 150mm WLCS-80378 Parts: [1] [2] [3] [4-red,yellow,blue] [5] [6] [7] [8] Colour indicators Parts: [4-red,yellow,blue] LEV398 SBA - LTC (Anti-clockwise to close) Parts: [5] [6] [7] [9] WLCS380LTC Spline adaptor Parts: [8] LEVSQHEX Grub screws Parts: [2 x4] FS734 www.enware.com.au... - Page 7 dimensions Anti-Clockwise to Close 1/2" (BSP) 3/4" (BSP) All measurements are in millimetres. www.enware.com.au Page 7 © Enware Pty Ltd...
-
Page 8: Product Warranty Statement
- WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
