WARNING: Do Not Operate Before Reading Manual

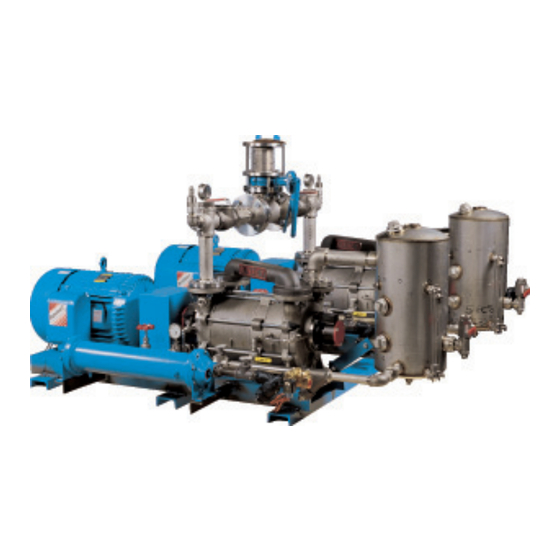

Liquid Ring Vacuum
Pumping Systems
OPERATOR'S MANUAL
Models
DRSP
DRDP
OFRP
ACRP
800.825.6937 | www.kinneyvacuum.com
Original Instructions
Kinney
®
Liquid Ring Vacuum Pumping Systems
Manual 4816 Rev B p/n 004816 0000
Advertisement
Related Manuals for KINNEY DRSP
Summary of Contents for KINNEY DRSP
- Page 1 Kinney ® Liquid Ring Vacuum Pumping Systems Manual 4816 Rev B p/n 004816 0000 WARNING: Do Not Operate Before Reading Manual Liquid Ring Vacuum Pumping Systems OPERATOR’S MANUAL Models DRSP DRDP OFRP ACRP 800.825.6937 | www.kinneyvacuum.com Original Instructions...
- Page 2 WARNING CAUTION DO NOT VALVE OR RESTRICT PUMP DISCHARGE OPENING. USE OIL MIST ELIMINATOR WHEN OPERATING PUMP. ENSURE ADEQUATE VENTILATION WHEN DISCHARGING INDOORS. DO NOT OPERATE WITHOUT BELT REFER TO MANUAL SAFETY INSTRUCTIONS. GUARD 809762-A000 NOTICE The above safety instruction tags were permanently affixed to your pump prior to shipment.
- Page 3 If the KINNEY KLRC™ Liquid Ring Vacuum Pump manual is not included with the system, you can get a copy by postal mail by contacting us at:...
- Page 4 If the system is stored outdoors be sure to protect it from weather and corrosion. KINNEY vacuum pumps and systems are built to exacting standards and if properly installed and maintained will provide many years of reliable service. We urge you to take time to read and follow every step of these instructions when installing and maintaining your pump.
- Page 5 Heat Exchanger DRSP/DRDP/OFRP/ACRP liquid ring vacuum systems are supplied with a heat exchanger to remove waste heat to the heat transfer medium. The type of heat exchanger supplied can be either liquid-to-liquid or liquid to-air, and of varying styles and materials depending on requirements dictated by the application.
- Page 6 Foundation Your DRSP/DRDP/OFRP system does not require a special foundation. However, it is necessary for the floor to be solid and level, and that the frame be adequately supported. We do recommend that the system be bolted to the floor.
- Page 7 A discharge flexible connector should also be used when piping to it. 4. Fill the separator tank with the appropriate sealant (water for DRSP/DRDP/ACRP or LR oil for OFRP systems) for which the system has been designed until the level in the sight glass coincides with the shaft level in the pump.
- Page 8 (5) per hour. For systems equipped with a control panel, (standard on DRSP/DRDP, optional on ACRP/ OFRP) minimum run timers are installed to prevent more than five (5) starts per hour. The pump(s) will continue to run until the timer expires, or the vacuum set point is reached, whichever occurs last.
- Page 9 Adjust the pump sealant inlet valve on units with sealant circulating pumps such that the compound pressure gauge between the pump sealant inlet and valve reads in a range between 15” Hg vacuum (-50 kPa g) and 10” Hg vacuum (-35 kPa g). For systems where the liquid ring pump(s) circulate the sealant, adjust the pump sealant inlet valve such that the compound pressure gauge between the pump sealant inlet and valve reads in a range between 10”...
- Page 10 3. Turn off main power. TYPICAL DRSP/OFRP SYSTEM DIAGRAM This representation is typical of systems supplied by Kinney, and id for reference only. Due to the wide variety of available custom options, your actual system may differ slightly in configuration. Consult the specific engineering...
- Page 11 TROUBLESHOOTING CONDITION CAUSE POSSIBLE REMEDY Seals Leaking Seal incorrectly installed Reinstall seal Seal worn or damaged Replace seal Reduced capacity Rotational speed too low Check supply voltage Vacuum leak Locate and repair High sealant temperature Check coolant flow and temperature Check heat exchanger cleanliness Incorrect sealant flow rate See “Sealant flow rate”...
- Page 12 PROPERTIES OF SEALANTS Water is the most commonly used sealant in liquid ring vacuum pumps. Other fluids may be used to obtain process compatibility. In these applications special consideration should be given to the properties of the sealant, which may affect pump performance.
- Page 13 Water Sealant Temperature ° F (° C) Vapor Pressure Torr (mbar) 50 (10) 9.2 (12.3) 52 (11) 9.9 (13.2) 54 (12) 10.7 (14.3) 56 (13) 11.5 (15.3) 58 (14) 12.3 (16.4) 60 (15) 13.3 (17.7) 62 (17) 14.2 (18.9) 64 (18) 15.3 (20.4) 66 (19) 16.4 (21.9)
- Page 14 WARRANTY – VACUUM PRODUCTS Subject to the terms and conditions hereinafter set forth and set forth in General Terms of Sale, Kinney (the Seller) warrants products and parts of its manufacture, when shipped, and its work (including installation and start-up) when performed, will be of good quality and will be free from defects in material and workmanship.
- Page 15 NOTES IMPORTANT All vacuum boosters and vacuum pumps manufactured by Kinney are date coded at time of shipment. In order to assure you of the full benefits of the product warranty, please complete, tear out and return the product registration card. You may also register your product online at www.kinneyvaccum.com or contact Customer Service.
- Page 16 Kinney 4840 West Kearney Street Springfield, Missouri USA 5803-8702 O 417.865.8715 800.825.6937 F 417.865.2950 Manual 4816 Rev A p/n 004816 0000 www.kinneyvacuum.com 04/21...
