Summary of Contents for Comprehensive CDA-1418GAE

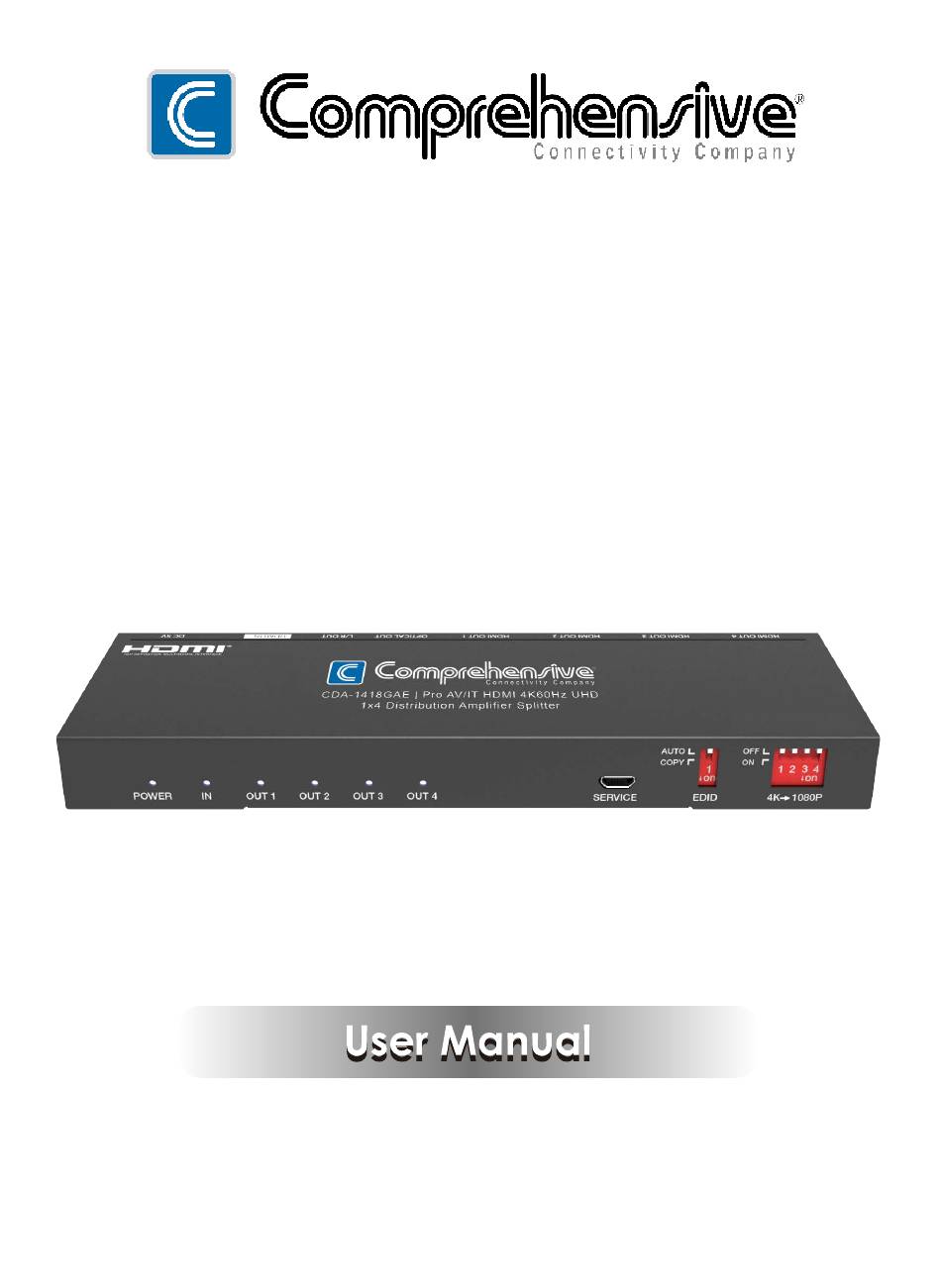

- Page 1 CDA-1418GAE Pro AV/IT HDMI 4K60Hz UHD 1x4 Distribu�on Amplifier Spli�er with Audio Extrac�on, EDID Management and 4K to 1080p Down-Scaler VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction Comprehensive's CDA-1418GAE is a HDMI 1x4 Splitter that distributes 1 HDMI source signal to 4x HDMI displays simultaneously which supports resolutions up to 4K2K@50/60Hz (4:4:4) 18Gbps. The CDA-1418GAE is able to extract audio from the HDMI source to both optical and analog outputs simultaneously.
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 18Gbps Video Bandwidth 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, Video Resolution 4K2K@50/60Hz (4:4:4) Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 4K60Hz 8-bit, 1080P 12-bit LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, HDMI Audio Formats DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD L/R Audio Formats...
- Page 5 5. Operation Controls and Functions 5.1 Front Panel AUTO COPY 1 2 3 4 POWER OUT 1 OUT 2 OUT 3 OUT 4 SERVICE EDID 4K 1080P Number Name Function description This blue LED will illuminate when the unit has connected POWER LED power supply.
- Page 6 5.2 Rear Panel HDMI OUT 4 HDMI OUT 3 HDMI OUT 2 HDMI OUT 1 OPTICAL OUT L/R OUT HDMI IN DC 5V Number Name Function description HDMI OUTPUT Connect to HDMI display device such as TVs or monitors. Optical audio output. OPTICAL OUT (This port outputs audio from HDMI IN port.) Analog audio output.
- Page 7 6. Application Example HDMI OUT 4 HDMI OUT 3 HDMI OUT 2 HDMI OUT 1 OPTICAL OUT L/R OUT HDMI IN DC 5V Amplifier DVD or Blu-ray Player 2.0 Speakers UHDTV UHDTV ...
