Summary of Contents for Comprehensive CDA-SDI400

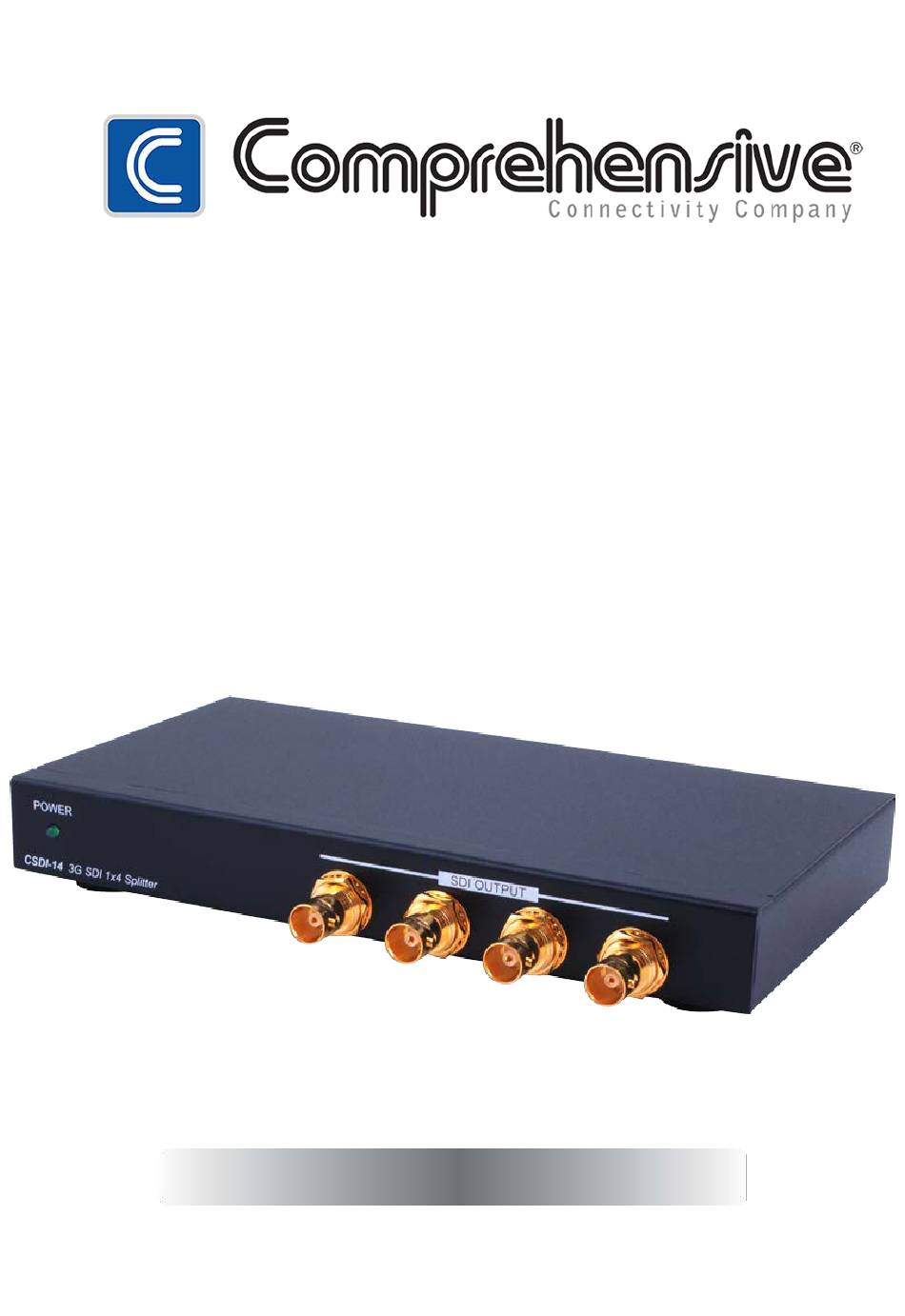

- Page 1 CDA-SDI400 3G-SDI 1 by 4 Splitter...
- Page 2 Comprehensive assumes no responsibility for any inaccuracies that may be contained in this document. Comprehensive also makes no commitment to update or to keep current the information contained in this document.
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ........1 2. Applications ........1 3. Package Contents ......1 4. System Requirements ...... 1 5. Features ........... 1 6. Operation Controls and Functions .. 2 6.1 Front Panel ......2 6.2 Rear Panel ......2 7. -
Page 5: Introduction
1. INTRODUCTION The 3G-SDI 1 by 4 Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be split from a single SDI source to up four simultaneous SDI outputs while ensuring high bit rates of 2.970 Gbit/s to give you high bandwidth signal transmission without signal loss over long distances. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SDI OUTPUT CSDI-14 3G SDI 1x4 Splitter Power LED The LED will illuminate green when the device is connected to a power supply. SDI OUTPUT Connect to up to four SDI TVs or monitors for simultaneous display or to another splitter to cascade the SDI signal to multiple displays or devices. -
Page 7: Connection Diagram
7. CONNECTION DIAGRAM SDI Camera SDI input Power Supply DC 5V SDI INPUT POWER SDI OUTPUT CSDI-14 3G SDI 1x4 Splitter SDI Outputs SDI to 1×4 Video Audio HDMI/ Audio Out HDMI Out HDMI Power Lock Lock DVI DC 5V SD I IN PUT Converter Splitter... -
Page 8: Specifications
8. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission 2.970 Gbit/s and 2.970/1.001 Gbit/s Rates Input 1×BNC (SD/HD/3G-SDI) Output 4×BNC (SD/HD/3G-SDI) SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, 2.970 &... -
Page 9: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97Gbps ≈ 3G HDMI High Definition Multimedia Interface Serial Digital Interface 80 Little Falls Rd, Fairfield NJ 07004 Phone: 1-800-526-0242 www.comprehensiveco.com sales@comprehensiveco.com...
