Summary of Contents for Comprehensive CSC-450

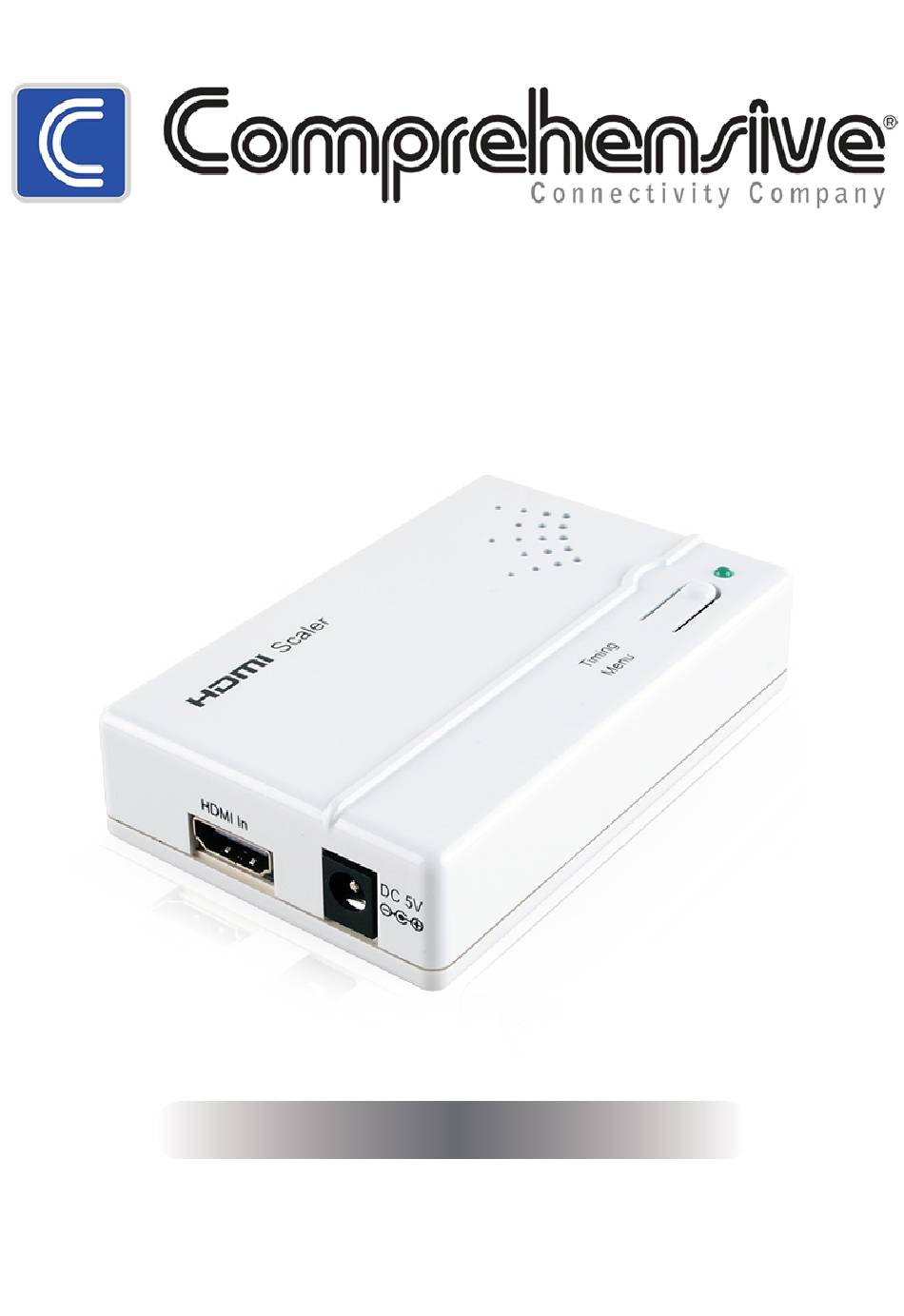

- Page 1 CSC-450 HDMI to HDMI Scaler Operation Manual Operation Manual...
- Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • electrical shock and injury to persons. •...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Left Panel ..........4 6.3 Right Panel ........4 6.4 OSD Menu .........5 6.5 Input Resolutions ......6 6.6 Output Resolutions ......7... -
Page 4: Introduction

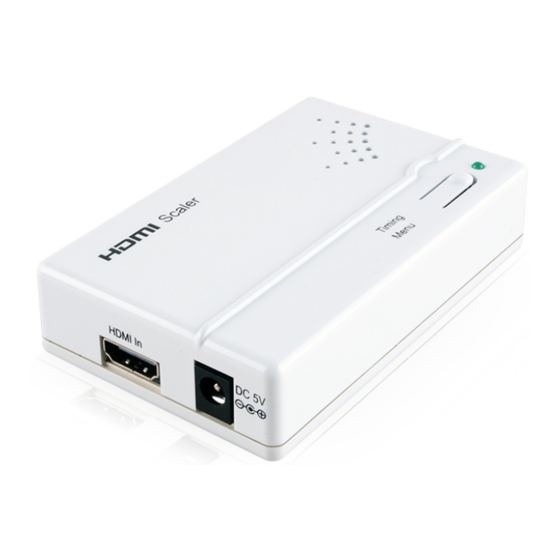

1. INTRODUCTION The HDMI to HDMI Scaler is designed to scale HDMI sources, either HD or PC resolution, to an alternative HDMI resolution (HD or PC). The device is HDMI and DVI compliant and is perfect for the integration of sources where resolution and/or resolution type requires conversion. -
Page 5: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.0 compliant • Upscale the video signal from an HDMI source up to 1080p@50/60 • Accepts a wide range of input resolutions of 480i to 1080p (HDTV) and VGA to WUXGA (PC) •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel Scaler Timing Menu Timing Menu Press the button once to show the display's resolution and while the OSD is on press again to select the required output resolution, the unit will switch to the new resolution after 3 seconds. Press and hold the button for 5 seconds will switch the unit to 720p@60 resolution, Power LED This LED will illuminate when the device is connected to a power... -
Page 7: Left Panel
6.2 Left Panel HDMI In Connect to an HDMI source such as a PC/Laptop or DVD player with an HDMI cable. DC 5V Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. 6.3 Right Panel Service Only HDMI Out... -
Page 8: Osd Menu
6.4 OSD Menu 640×480@85 1080p@60 OUTPUT SELECT 480p 576p 720p 59.94 1080i 59.94 1080p 59.94 1024×768 1280×800 1366×768 1600×900 1680×1050 1920×1200 Native Information Exit IN/OUT: Current input and output resolutions. Output Select: Output resolution selection. Native: Select output display's native resolution. The device will native timings are not within the output selection of the device then the device will output 720p@60. -
Page 9: Input Resolutions
6.5 Input Resolutions RESOLUTIONS FREQUENCY 480i 480p 576i 576p 720p 25, 30, 50, 60 1080i 50, 60 1080p 24, 25, 30, 50, 60 640×480 60, 72, 75, 85 720×400 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1152×864 70, 75 1280×720... -
Page 10: Output Resolutions
6.6 Output Resolutions HD RESOLUTIONS PC RESOLUTIONS 480p@60 1024×768@60 NATIVE 576p@50 1280×800@60 720p@50/59.94/60 1366×768@60 1080i@50/59.94/60 1600×900@60 (RB) 1080p@50/59.94/60 1680×1050@60 1920×1200@60 (RB) -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM DVD Player HDMI Input Power Supply Service Only HDMI Out HDMI Output HD TV/Monitor... - Page 12 8. SPECIFICATIONS Maximum Pixel Rate 165 MHz Input Ports 1×HDMI, 1×USB (For manufacturer use only) Output Ports 1×HDMI Audio Sampling Rate 44.1, 48, 96,192 kHz HDMI Cable In 15 m/1080p@8-bit HDMI Cable Out 15 m/1080p@8-bit ESD Protection Human body model: ±...
-
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array...
