Comprehensive CDA-1218GAE User Manual

Pro av/it hdmi 4k60hz uhd 1x2 distribution amplifier splitter with audio extraction, edid management and 4k to 1080p down-scaler
Hide thumbs

Advertisement

Quick Links

Download this manual
CDA-1218GAE
Pro AV/IT HDMI 4K60Hz UHD 1x2 Distribution Amplifier Splitter with
Audio Extraction, EDID Management and 4K to 1080p Down-Scaler
VER 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDA-1218GAE and is the answer not in the manual?

Questions and answers

Related Manuals for Comprehensive CDA-1218GAE

Summary of Contents for Comprehensive CDA-1218GAE

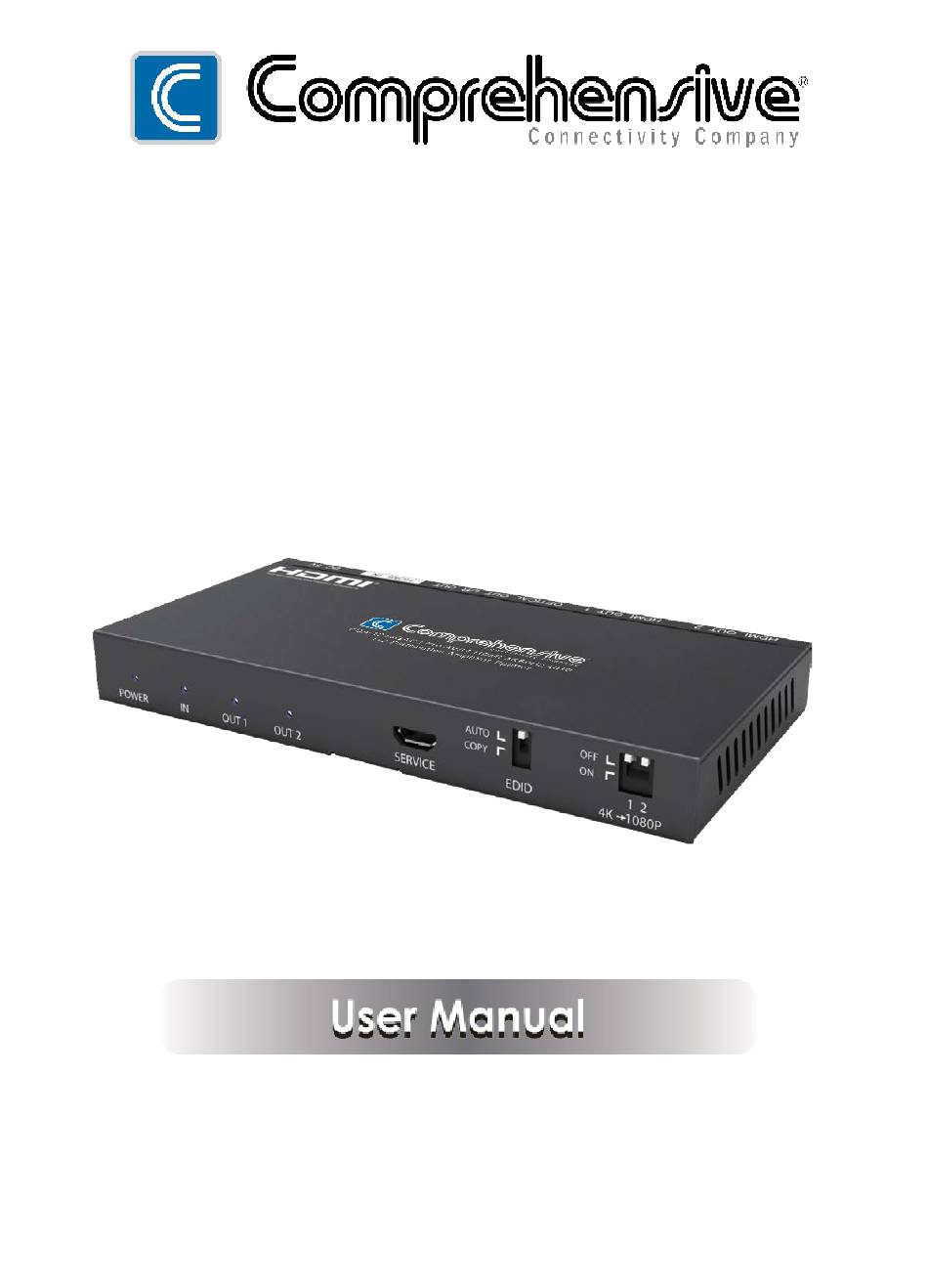

  • Page 1 CDA-1218GAE Pro AV/IT HDMI 4K60Hz UHD 1x2 Distribution Amplifier Splitter with Audio Extraction, EDID Management and 4K to 1080p Down-Scaler VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The Comprehensive's CDA-1218GAE is a HDMI 1x2 Splitter that distributes 1 HDMI source signal to 2x HDMI displays simultaneously which supports resolutions up to 4K2K@50/60Hz (4:4:4) 18Gbps. The CDA-1218GAE is able to extract audio from the HDMI source to both optical and analog outputs simultaneously.

  • Page 4: Package Contents

    Package Contents ① 1× CDA-1218GAE (HDMI 1×2 Splitter) ② 1× 5V/1A Power Adapter ③ 1× User Manual...

  • Page 5: Specifications

    3. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, Video Resolution 4K2K@50/60Hz (4:4:4) Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit (4K60Hz), 12-bit (1080P) LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, HDMI Audio Formats DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD L/R Audio Formats...

  • Page 6: Operation Controls And Functions

    4. Operation Controls and Functions 4.1 Front Panel Number Name Function Description POWER LED The blue LED will be on when the device is powered on. The blue LED will be on when the HDMI IN port has HDMI INPUT connected an active HDMI source device with a HDMI cable.

  • Page 7: Rear Panel

    4.2 Rear Panel HDMI IN HDMI OUT 2 HDMI OUT 1 OPTICAL OUT L/R OUT DC 5V Number Name Function Description HDMI output port. Connect to HDMI display device such HDMI OUTPUT as TV or monitor. Optical audio output port. Connect the amplifier to OPTICAL OUT output audio from HDMI IN port.

  • Page 8: Application Example

    5. Application Example HDMI IN HDMI OUT 2 HDMI OUT 1 OPTICAL OUT L/R OUT DC 5V DVD or Blu-ray Player Amplifier 2.0 Speakers UHDTV UHDTV 80 Little Falls Road, Fairfield, NJ 07004 sales@comprehensiveco.com | 800-526-0242 www.ComprehensiveCo.com...
