Summary of Contents for Comprehensive CCN-SDI2HDA

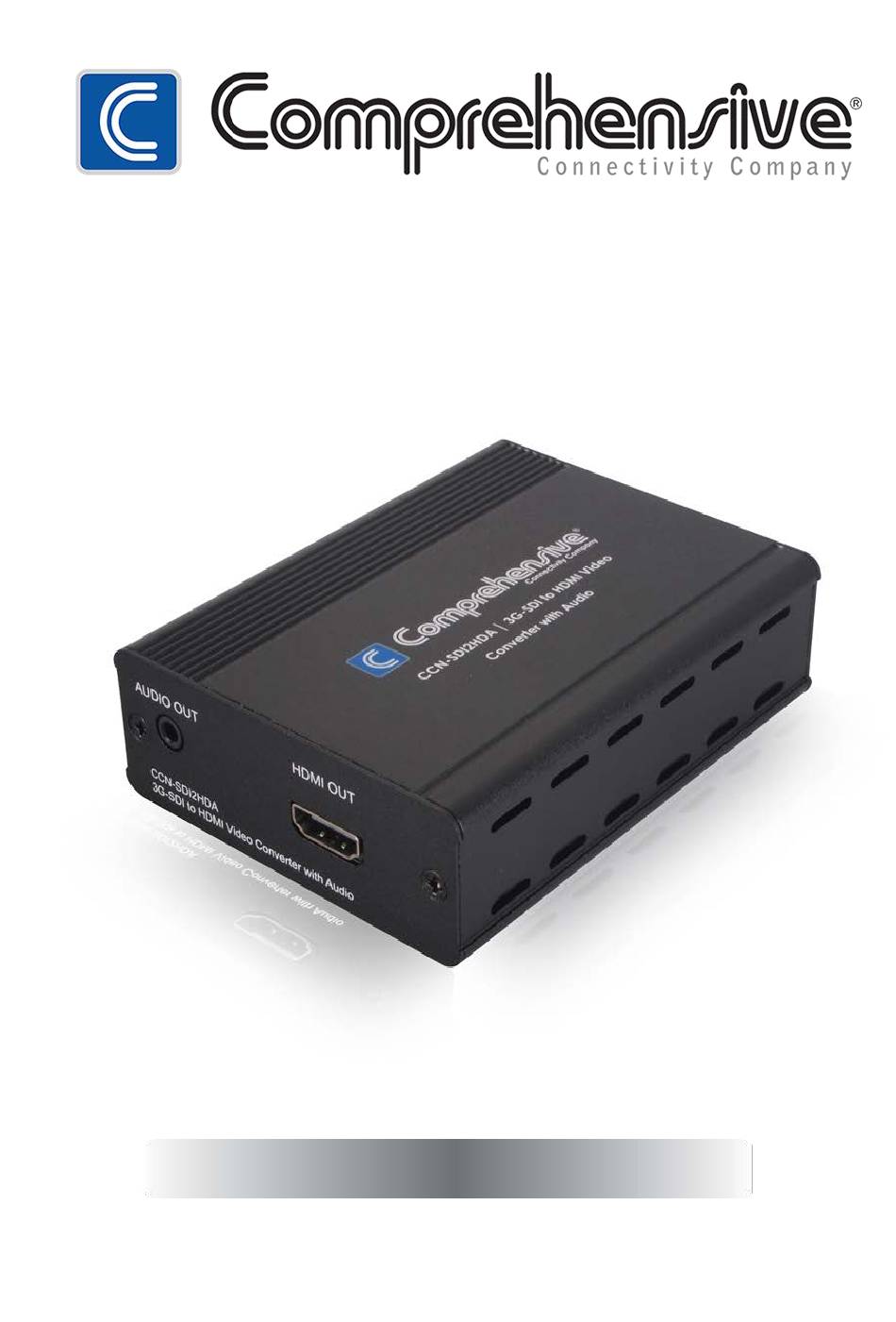

- Page 1 CCN-SDI2HDA 3G SDI to HDMI Converter...
- Page 2 Comprehensive assumes no responsibility for any inaccuracies that may be contained in this document. Comprehensive also makes no commitment to update or to keep current the information contained in this document.
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ........1 2. Applications ........1 3. Package Contents ......1 4. System Requirements ....... 1 5. Features ..........1 6. Operation Controls And Functions ... 2 6.1 Front Panel ....... 2 6.2 Rear Panel ........ 3 7. -
Page 5: Introduction
1. INTRODUCTION The SDI to HDMI Converter allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. In addition, the external audio output allows the user to send the audio signal originally embedded in the SDI input to an amplifier or active speakers. -
Page 6: Operation Controls And Functions
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s) 3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) • Supports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) Note: Tested with Belden 1694A Cable. -
Page 7: Rear Panel
6.2 Rear Panel AUDIO OUT HDMI OUT to HDMI CLUX-SDI2HCA AUDIO OUT (3.5mm jack): Connect to an amplifier or active speakers with 3.5 mm phone jack for external audio output. HDMI OUT: Connect to the HDMI display with a HDMI cable. -
Page 8: Connection And Installation
7. CONNECTION AND INSTALLATION HD-SDI Camera SDI Cable DC 5V SDI IN POWER LOCK 3G SDI to HDMI Converter AUDIO OUT HDMI OUT 3G SDI to HDMI CLUX-SDI2HCA HDMI Cable Amplifier HDMI TV/MONITOR... -
Page 9: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input 1×BNC (SD/HD/3G-SDI) Output 1×HDMI, 1×3.5 mm Phone Jack SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, 2.970 & 2.970/1.001 Gbit/s HDMI Timing Support 480i/576i, 720p@50/59.94/60 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97 Gbps ≈ 3G Serial Digital Interface... - Page 11 Comprehensive Connectivity The Pro’s Connectivity Since 1974 80 Little Falls Rd, Fairfield NJ 07004 Phone: 1-800-526-0242 www.comprehensiveco.com sales@comprehensiveco.com...
