Ecodan EHPT17X-UKHLEWS Installation Manual page 11

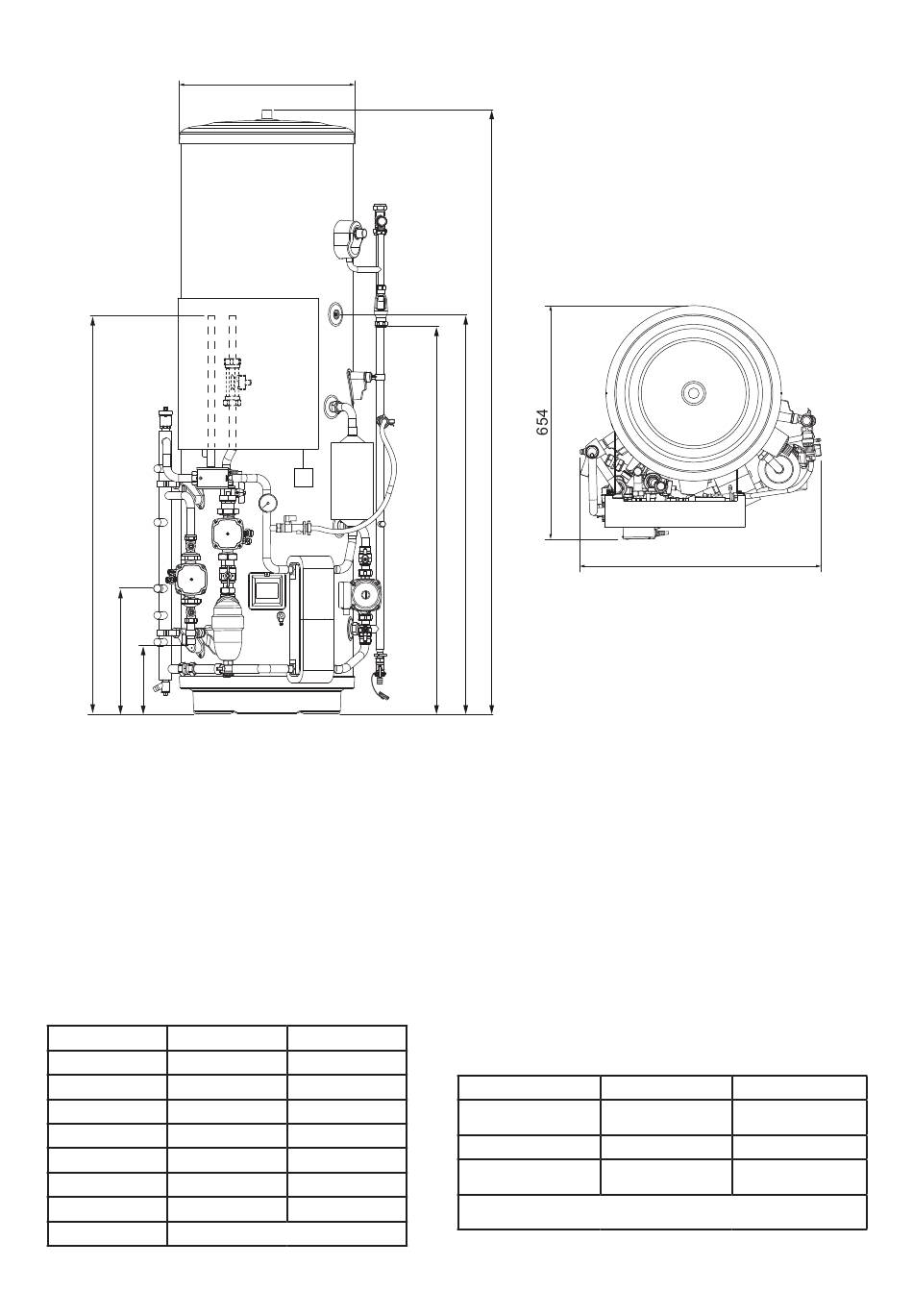

Fig. 2c - Dimensions and EU Product Fiche - 22 mm Slimline Models
B D
B & D
F
E
KEY
A OVERALL HEIGHT
B HEAT PUMP FLOW CONNECTION (22 mm O/D COPPER)
C TUNDISH OUTLET CONNECTION (22 mm COMPRESSION)
D HEAT PUMP RETURN CONNECTION (22 mm O/D COPPER)
E HEATING ZONE 1 CIRCUIT FLOW CONNECTION (22 mm O/D COPPER)
F HEATING ZONE 1 CIRCUIT RETURN CONNECTION (22 mm O/D COPPER)
G COLD WATER INLET CONNECTION (22 mm COMPRESSION)
H HOT WATER OUTLET CONNECTION (22 mm COMPRESSION/3/4 " BSP M)
J THW5A SENSOR POCKET
K Wi-Fi ADAPTOR (INCLUDED, INSTALLER TO LOCATE AND MOUNT)
CAPACITY
A
B
C
D
E
F
J
K Installer to locate and mount
491
H
G
K
150 170
1516 1690
1127 1127
909 1083
1127 1127
194 194
350 350
943 1117
A
J
C
MODEL
Energy efficiency
class
Standing loss in W
Storage volume V in
Litres
Technical parameters in accordance with European Commission
regulations 814/2013 and 812/2013
676
EHPT17X-UKHLEWS
EHPT15X-UKHLEWS
C
58.3
150
C
66.3
170
11
