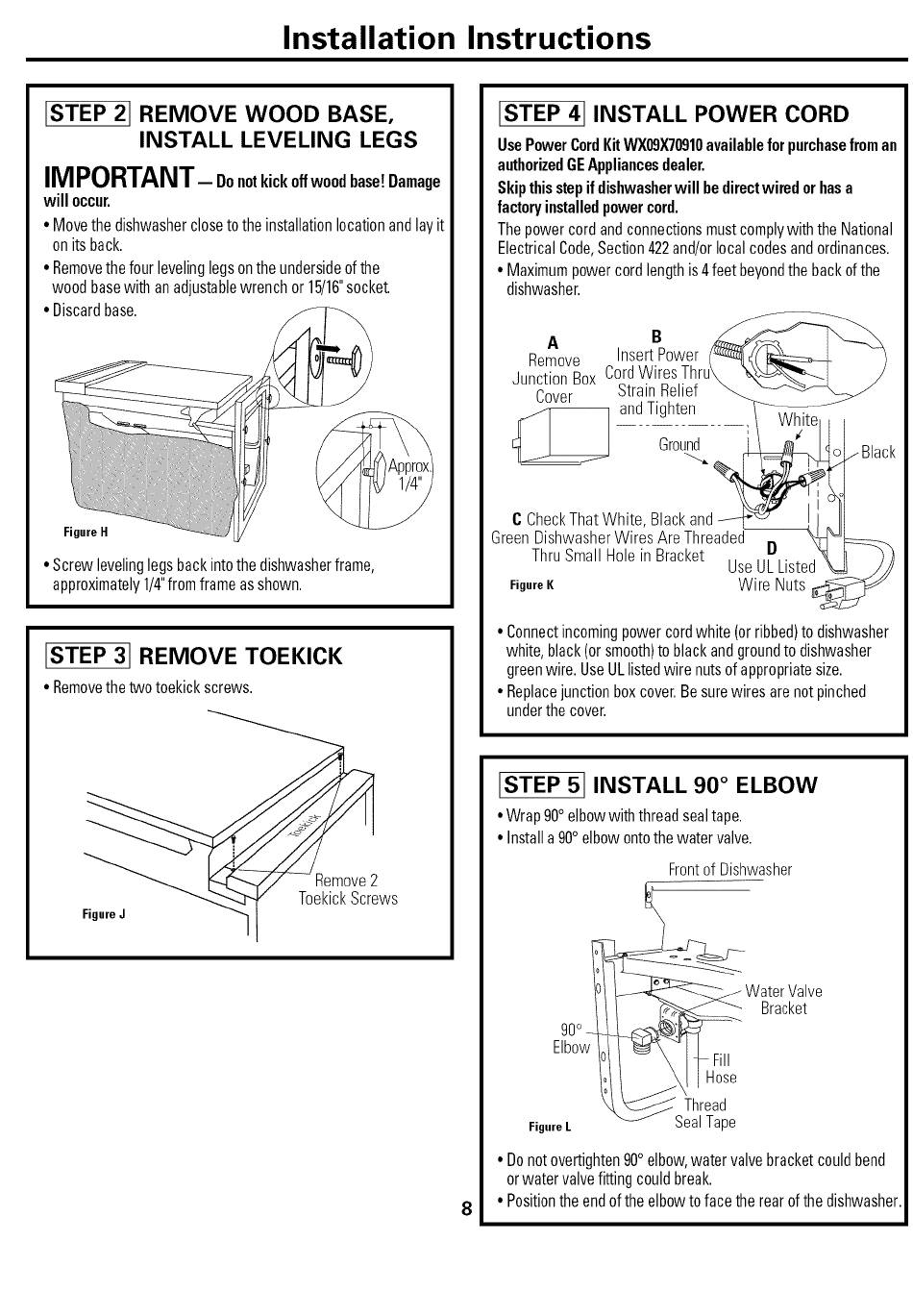

GE Monogram ZBD6890 Series Installation Instructions Manual page 9

Installation Instructions
ISTEP 21
REMOVE WOOD BASE,
INSTALL LEVELING LEGS
IM PORTANT-
Do notkickoff woodbase!Damage
will occur.
• Move the dishwasher closeto the installationlocation and layit
on its back.
• Removethe four leveling legs on the undersideof the
wood basewith an adjustablewrench or 15/16" s ocket.
• Discard base.
Figure H
• Screw levelinglegs back into the dishwasherframe,
approximately1/4"from frame as shown.
ISTEP
31
REMOVE TOEKICK
• Remove the two toekick screws.
FigureJ
Remove2
Toekick Screws
[STEP 41
INSTALL POWER CORD
UsePower Cord Kit WX09XT0910 availablefor purchase froman
authorized GEAppliances dealer.
Skipthisstepif dishwasher will bedirectwired or hasa
factoryinstalledpowercord.
The power cord and connections mustcomplywith the National
Electrical Code,Section 422and/or local codes and ordinances.
• Maximumpower cord length is 4 feet beyondthe back of the
dishwasher.
A B
Remove Insert Power
Junction Box CordWires
Cover Strain Relief
_ andTighten
Gr°u L
C CheckThat White, Black and_
Green Dishwasher Wires Are Threaded
Thru Small Hole in Bracket
Figure K
Whit
D
Use UL Listed _ ///
Wire Nuts _/
• Connectincoming power cord white (or ribbed)to dishwasher
white, black (or smooth)to black and groundto dishwasher
green wire. Use ULlisted wire nuts of appropriatesize.
• Replacejunction box cover.Be surewires are not pinched
under the cover.
[STEP 51 INSTALL 90 ° ELBOW
• Wrap 90° elbow with thread sealtape.
o • Installa 90 elbow ontothe water valve.
Frontof Dishwasher
8
_ Water Valve
Bracket
90° _
Elbow
II Hose
Thread
FigureL
Seal Tape
• Donot overtighten90 ° elbow,water valve bracket could bend
or water valve fitting could break.
• Positionthe end of the elbow to face the rear of the dishwasher.
