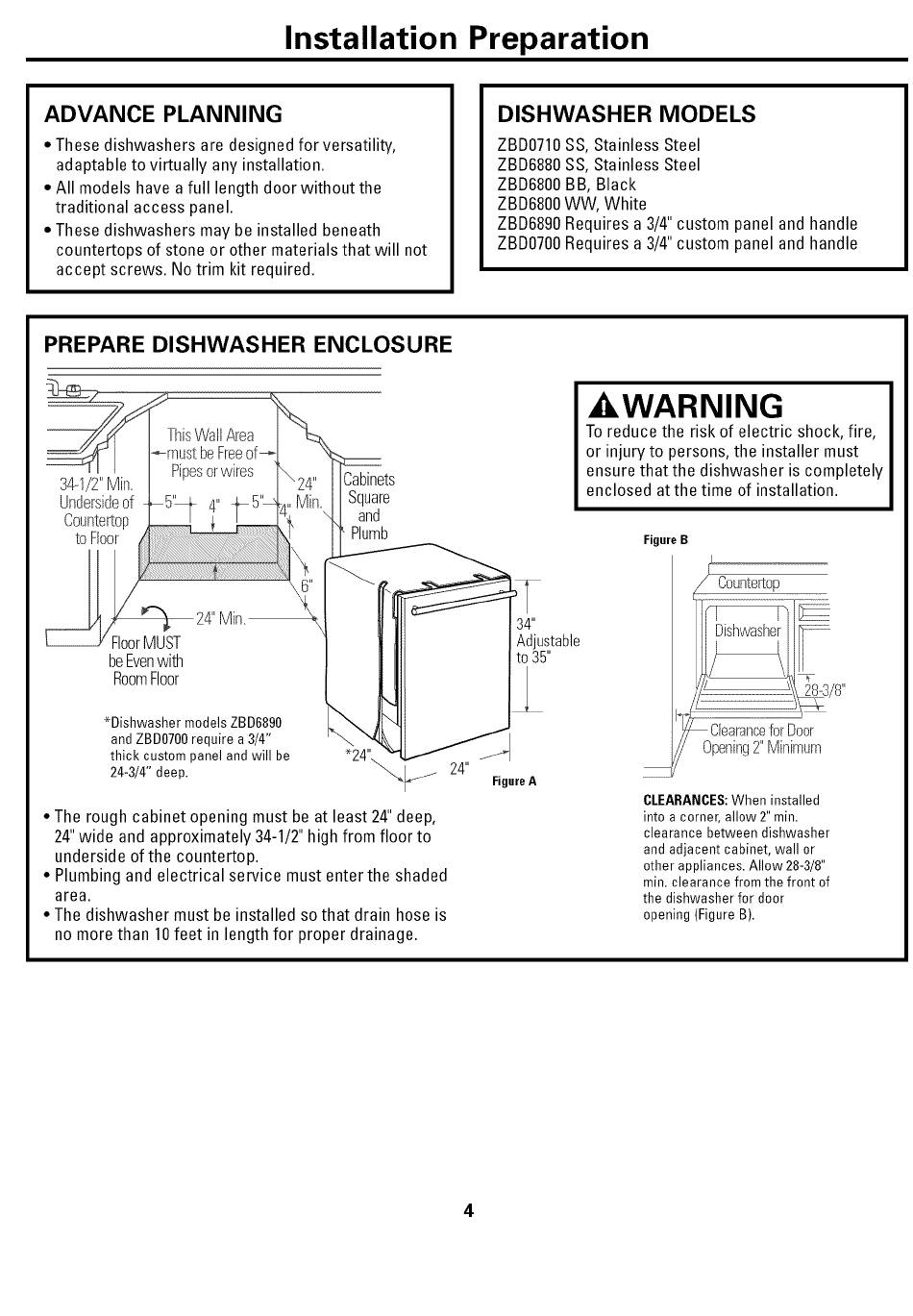

Installation Preparation
ADVANCE PLANNING
• These dishwashers are designed for versatility,
adaptable to virtually any installation.
• All models have a full length door without the
traditional access panel.
• These dishwashers may be installed beneath
countertops of stone or other materials that will not
accept screws. No trim kit required.
DISHWASHER MODELS
ZBD0710 SS, Stainless Steel
ZBD6880 SS, Stainless Steel
ZBD6800 BB, Black
ZBD6800 WW, White
ZBD6890 Requires a 3/4" custom panel and handle
ZBD0700 Requires a 3/4" custom panel and handle
PREPARE DISHWASHER ENCLOSURE
ThisWall Area
Pipesor wires
34-1/2"Min,
Underside of Square
Countertop and
to Floor Plumb
Min_
FloorMUST
beEvenwith
Room Floor
*Dishwasher models ZBD6890
and ZBDO700require a 3/4"
thick custom panel and will be
24-3/4" deep.
• The rough cabinet opening must be at least 24" deep,
24" wide and approximately 34-1/2" high from floor to
underside of the countertop.
• Plumbing and electrical service must enter the shaded
area.
• The dishwasher must be installed so that drain hose is
no more than 10 feet in length for proper drainage.
34"
Adjustable
to 35"
FigureA
,WARNING
To reduce the risk of electric shock, fire,
or injury to persons, the installer must
ensure that the dishwasher is completely
enclosed at the time of installation.
Figure B
Countertop
T"
Dishwasher
Opening 2"Minimum
CLEARANCES: When installed
into a corner, allow 2" min.
clearance between dishwasher
and adjacent cabinet, wall or
other appliances. Allow 28-3/8"
min. clearance from the front of
the dishwasher for door
opening (Figure B).
