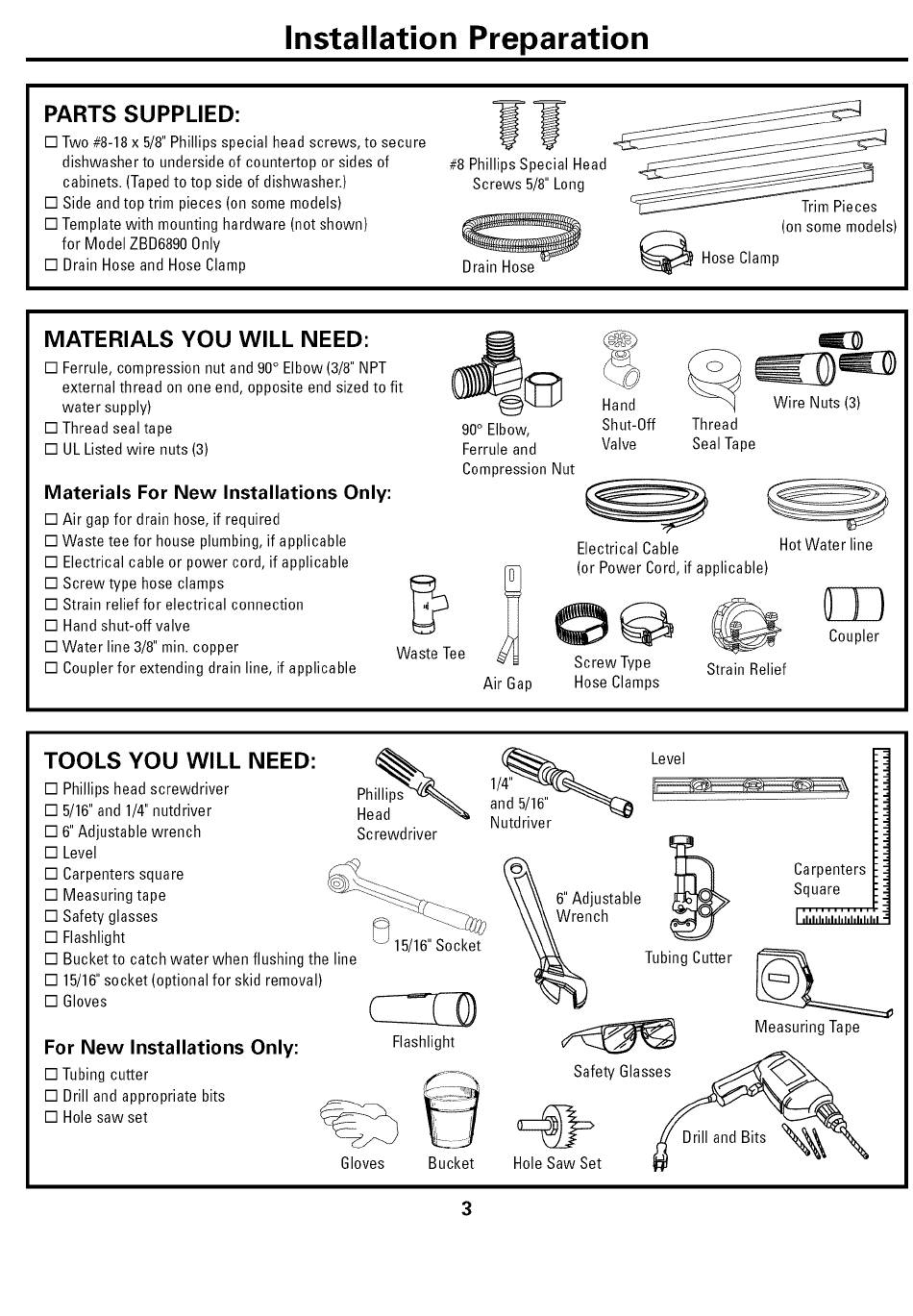

Installation Preparation
PARTS SUPPLIED:
[] Two #8-18 x 5/8"Phillips special head screws, to secure
dishwasher to underside of countertop or sides of
cabinets. (Tapedto top side of dishwasher.)
[] Side and top trim pieces (on some models)
[] Template with mounting hardware (not shown)
for Model ZBD6890Only
[] Drain Hose and Hose Clamp
#8 Phillips Special Head
Screws 5/8" Long
Drain Hose
Trim Pieces
(on some models)
_ HoseClamp
MATERIALS YOU WILL NEED:
[] Ferrule, compression nut and 90° Elbow (3/8" NPT
external thread on one end, opposite end sized to fit
water supply)
[] Thread seal tape
[] UL Listed wire nuts (3)
Materials For New Installations
Only:
[] Air gap for drain hose, if required
[] Waste tee for house plumbing, if applicable
[] Electrical cable or power cord, if applicable
[] Screw type hose clamps
[] Strain relief for electrical connection
[] Hand shut-off valve
[] Water line 3/8" rain. copper
[] Couplerfor extending drain line, if applicable
Waste Tee
90° Elbow,
Ferrule and
Compression Nut
Hand
Shut-Off Thread
Valve Seal Tape
Wire Nuts (3)
Electrical Cable Hot Water line
(or Power Cord, if applicable@
Coupler
Screw Type Strain Relief
Air Gap Hose Clamps
TOOLS YOU WILL NEED:
[] Phillips head screwdriver
[] 5/16"and 1/4" nutdriver
[] 6"Adjustable wrench
[] Level
[] Carpenters square
[] Measuring tape
[] Safety glasses
[] Flashlight
[] Bucket to catch water when flushing the line
[] 15/16"socket (optional for skid removal)
[] Gloves
1/4"
Ph and 5/16"
Head
Nutdriver
Screwdriver
_115/16" Socket
For New Installations Only:
[] Tubing cutter
[] Drill and appropriate bits
[] Hole saw set
Flashlight
Gloves Bucket
Level
n 6''AdJ_t_ta b le
Tubing Cutter
Carpenters
Square
........... t
I dddihhhhhhhhl
Measuring Tape
