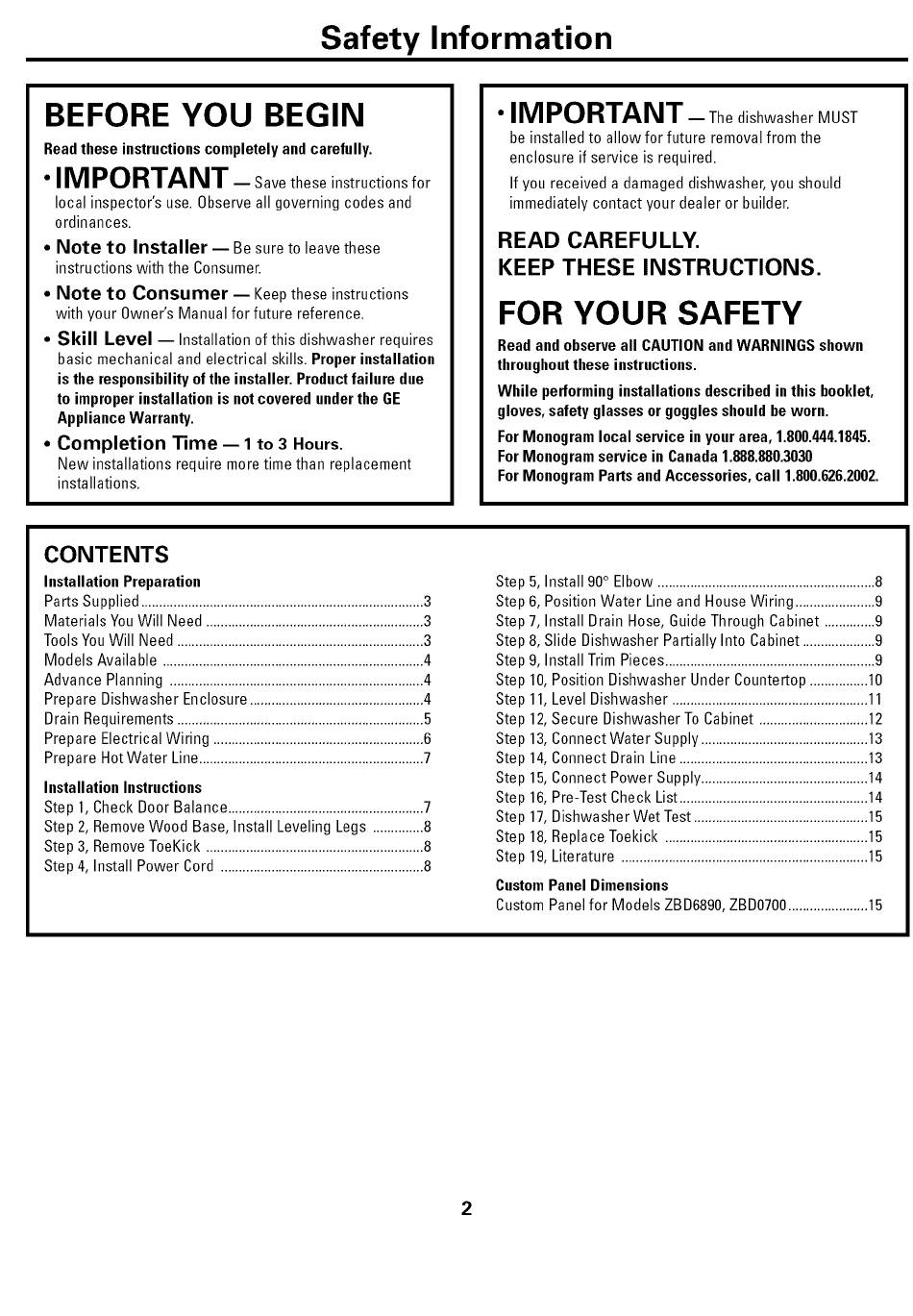

Safety Information
BEFORE YOU BEGIN
Readthese instructionscompletely and carefully.
IMPORTANT- Save these instructions for
local inspector's use. Observe all governing codes and
ordinances.
• Note to Installer -- Besure
to
leavethese
instructions with the Consumer.
• Note to Consumer -- Keeptheseinstructions
with your Owner's Manual for future reference.
•
Skill Level
--Installation of this dishwasher requires
basic mechanical and electrical skills. Proper installation
is the responsibilityof the installer. Product failure due
to improperinstallationis not coveredunder the GE
Appliance Warranty.
• Completion "13me
-- 1 to 3
Hours.
New installations require more time than replacement
installations.
IMPORTANT
--The dishwasher MUST
be installed to allow for future removal from the
enclosure if service is required.
If you received a damaged dishwasher, you should
immediately contact your dealer or builder.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
FOR YOUR SAFETY
Read and observeall CAUTIONand WARNINGS shown
throughoutthese instructions.
While performinginstallationsdescribedin this booklet,
gloves,safety glasses or gogglesshouldbe worn.
ForMonogram local service in yourarea, 1.800.444.1845.
ForMonogramservice in Canada1.888.880.3030
ForMonogram Partsand Accessories,call 1.800.626.2002.
CONTENTS
Installation Preparation
Parts Supplied .............................................................................. 3
Materials YouWill Need ............................................................ 3
ToolsYouWill Need .................................................................... 3
Models Available ........................................................................ 4
Advance Planning ...................................................................... 4
Prepare Dishwasher Enclosure ................................................ 4
Drain Requirements .................................................................... 5
Prepare Electrical Wiring .......................................................... 6
Prepare Hot Water Line.............................................................. 7
Installation Instructions
Step 1, Check Door Balance ...................................................... 7
Step 2, RemoveWood Base, Install Leveling Legs .............. 8
Step 3, RemoveToeKick ............................................................ 8
Step 4, Install Power Cord ........................................................ 8
Step 5, Install 90° Elbow ............................................................ 8
Step 6, Position Water Line and House Wiring ...................... 9
Step 7, Install Drain Hose, Guide Through Cabinet .............. 9
Step 8, Slide Dishwasher Partially Into Cabinet .................... 9
Step 9, Install Trim Pieces.......................................................... 9
Step 10,Position Dishwasher Under Countertop ................ 10
Step 11,Level Dishwasher ...................................................... 11
Step 12,Secure Dishwasher To Cabinet .............................. 12
Step 13,Connect Water Supply .............................................. 13
Step 14,Connect Drain Line .................................................... 13
Step 15,Connect Power Supply.............................................. 14
Step 16,Pre-Test Check List.................................................... 14
Step 17,Dishwasher Wet Test ................................................ 15
Step 18,Replace Toekick ........................................................ 15
Step 19,Literature .................................................................... 15
CustomPanel Dimensions
Custom Panel for Models ZBD6890,ZBD0700 ...................... 15
2
