Living Spaces ROWAN 292538 Owner's Manual

OWNER'S MANUAL
ROWAN MINERAL EASTERN KING STORAGE BED
LIVING SPACES SKU : 292538 / 292543 / 292544 / 292537
VENDOR ITEM NO. : 7TKAL7BH / 7TKAL7FB / 7TKAD7RS
ASSEMBLY PARTS LIST
BOX 1 (SKU 292543)
Headboard
SKU #
292543
BOX 2 (SKU 292544)
Footboard
SKU #
292544

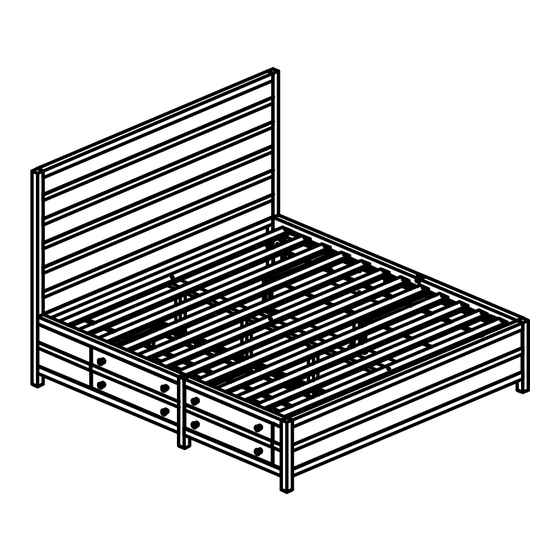

FULLY ASSEMBLED
PRE-ASSEMBLED PARTS LIST
SKU # IMAGE
7TZZBPDG
7TKACPKB
7TZZBPSB
QUANTITY SKU #
DESCRIPTION
HEADBOARD
QUANTITY
DESCRIPTION
FOOTBOARD
DESCRIPTION
DRAWER GLIDE SET
KNOB
SIDE RAIL
BRACKET (SET OF 2)
BOX 3 (SKU 292537)
Storage side rail - Slat Roll
1
292537-1
292537-2
292537-3
1
7TKABPLS
7TKABPDSL
HARDWARE KIT PACKED IN BOX 3
SKU : 7TZZBPHWS
7TZZBPHWS
SKU #
7TZZCPLV
Scan QR code to view assembly video
IMAGE DESCRIPTION
LEFT STORAGE
SIDE RAIL
RIGHT STORAGE
SIDE RAIL
SLAT ROLL
CENTER SLAT
SUPPORT
CENTER
SUPPORT LEG
DRAWER
SUPPORT LEG
WOOD SCREW
(4x30mm)
IMAGE DESCRIPTION
FOOT CAP
SUPPORT LEG
LEVELER
INDIVIDUAL SLAT
QUANTITY
1
1
1
1
4
4
27
