STC Mini Greenhouse Assembly Instructions
Modular greenhouses, garden sheds, outdoor garden elements and accessories
Designed and manufactured by Rion
A Member of the Plasson Group
Kibbutz Cabri, Israel
Systems Trading Corporation
8140 Burnet Rd., Suite 105, Austin, TX 78757
Tel.: (512) 407-9101, Fax.: (512) 407-9242
Customer Service (Toll-Free) (877) 407-9100 extension 2
email: customerservice@stcaustin.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rion GH40
Summary of Contents for Rion GH40

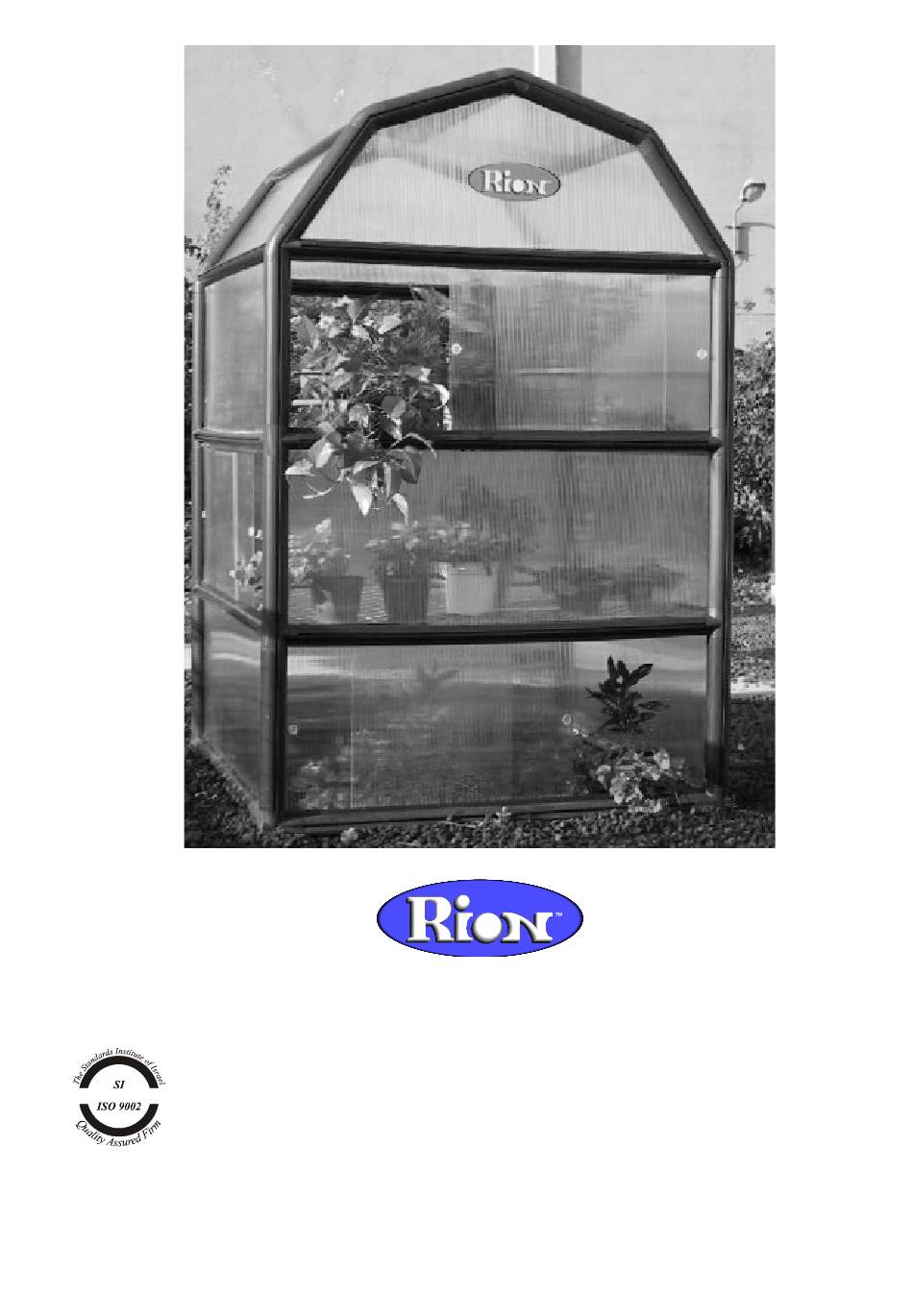

- Page 1 STC Mini Greenhouse Assembly Instructions Modular greenhouses, garden sheds, outdoor garden elements and accessories Designed and manufactured by Rion A Member of the Plasson Group Kibbutz Cabri, Israel Systems Trading Corporation 8140 Burnet Rd., Suite 105, Austin, TX 78757 Tel.: (512) 407-9101, Fax.: (512) 407-9242 Customer Service (Toll-Free) (877) 407-9100 extension 2 email: customerservice@stcaustin.com...
- Page 2 © 2003 Rion Ltd.
- Page 3 Safety First • Check the contents of the greenhouse packaging against the packing list and the required parts for your model on page 4 and following. Do not begin assembly if any parts are missing. • Please read these Assembly Instructions completely before assembly and keep them in your records so you can refer to them if you wish to add options or make repairs.
- Page 4 Introduction Congratulations on purchasing an STC Greenhouse. We are certain that it will give you many happy years of pleasure in your garden. The drawings in this manual are designed for the greenhouse owner who has purchased a MGH3, which consists of one standard unit (MGH1) and two module units (MGHM).
- Page 5 Prepare a Foundation for Your Greenhouse Before assembling your new Greenhouse a proper foundation must be prepared. A number of anchoring options are possible, based on wind and ground conditions in your area. Make sure that you have checked with your local authorities regarding any required building permits.
- Page 6 Identify Greenhouse Parts Because of the Greenhouse modularity, you may purchase up to two MGHM modules to fit your needs. Take a minute to make sure you have everything you need. Note: Do not proceed with assembly if any parts are missing. The part code is stamped on each connector.
- Page 7 Part Code MGH1 MGH2 MGH3 Description GSE7 Strengthening Bar PN10 Stationary Window and Roof Panel PN11 Sliding Window PN12 Pediment Panel PN13 Roof Side Panel Flexible Glazing Seal (roll) Sliding Track AL20 Narrow Shelf Support AL40 Wide Shelf Support SF30 Shelf PIN1 Connector Pin (packages)
- Page 8 Secure the screws/anchors until they are firm but not tight. but not tight. Note: All necessary hardware is included in the Rion Modular Base packaging. When all the screws are in place tighten each one in order. STC Mini Greenhouse Assembly Instructions...
- Page 9 Assemble the Frame Place the R5 profiles in the corners of the frame. Lock everything in place using pins in each matching hole between connector and profile. Note: Do not put pins in the R5 profiles where they might interfere with insertion of the panels. If you have purchased one or more MGHM modules go to the next step.
- Page 10 Assemble the Roof Place one completed pediment on the ground and attach five E7 profiles in place. Lock the parts in place with pins. Slide two GSE7 strengthening bars into the in E7 profiles as shown Remove the plastic film from the PN10 roof panels and PN13 side roof panels and slide them in the channels in the E7 profiles.
- Page 11 Attach Fixed Windows Take two UT1 window tracks for sliding windows and snap them into place on the frame. Note: The sliding tracks go on the base profiles that will be on the same side as the pediment. Remove the plastic film from the outside of two PN10 panels.
- Page 12 Snap two UT1 tracks in the bottom of each module that you have assembled above the UT1 tracks on the base. Note: If you have not purchased any additional modules, go to “Add Sliding Windows” on page 11 Put the module on the frame, making sure that the PN10 panel enters the...
- Page 13 Place two PN10 panels on the next module. Make sure that they are in a staggered pattern as shown. Add additional modules in the same way. Note: If you have purchased only one module go on to the next step. Add Sliding Windows Put the roof on top and lock in place...
- Page 14 • In high temperatures you may wish to cover your Greenhouse with summer shade cloth. Rion offers a wide range of options for your new Greenhouse, including irrigation systems and others. STC Mini Greenhouse Assembly Instructions...
- Page 15 Notes...
- Page 16 Systems Trading Corporation 8140 Burnet Rd., Suite 105, Austin, TX 78757 Tel.: (512) 407-9101, Fax.: (512) 407-9242 Customer Service (Toll-Free) (877) 407-9100 extension 2 email: customerservice@stcaustin.com MLGH40STCE 18 August 2003...
