Rion GH30 Greenhouse Assembly Instructions
Modular greenhouses, garden sheds, outdoor garden elements and accessories
Designed and manufactured by Rion
A Member of the Plasson Group
Rion Ltd., Cabri 25120, Israel
Tel: +972-4-995-2666, Fax: +972-4-995-2677
email
rion@rion.com
homepage
http:\\www.rion.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rion GH30
Summary of Contents for Rion GH30

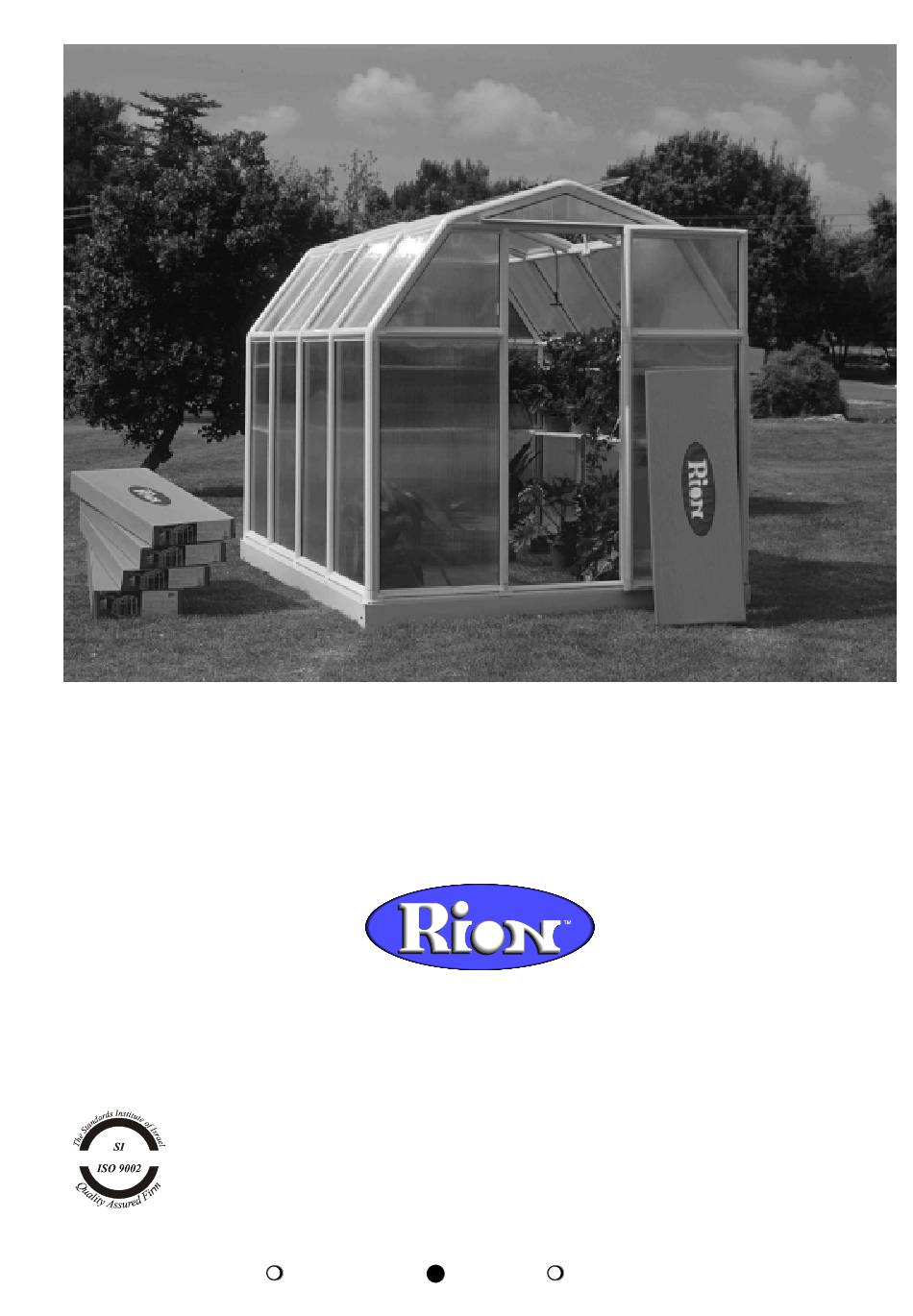

- Page 1 Rion GH30 Greenhouse Assembly Instructions Modular greenhouses, garden sheds, outdoor garden elements and accessories Designed and manufactured by Rion A Member of the Plasson Group Rion Ltd., Cabri 25120, Israel Tel: +972-4-995-2666, Fax: +972-4-995-2677 email rion@rion.com homepage http:\\www.rion.com...
- Page 2 © 2003 Rion Ltd.
-
Page 3: Safety First
• We recommend that you use gloves during assembly. • Rion is not responsible for the misuse of tools or parts. • If local building codes require permits or licenses make sure that they are acquired before beginning. - Page 4 Introduction Congratulations on purchasing a Rion Greenhouse. We are certain that it will give you many happy years of pleasure in your garden. The drawings in this manual are designed for the greenhouse owner who has purchased a GH33, which consists of one front unit (GHF), one back unit (GHB) and one module unit (GHM).
- Page 5 Prepare a Foundation for Your Greenhouse Before assembling your new Greenhouse a proper foundation must be prepared. Make sure that you have checked with your local authorities regarding any required building permits. Decide at this time the final orientation of your Greenhouse. We recommend that you place your greenhouse in a spot where it will receive direct sunlight and will be protected from the wind as much as possible.
- Page 6 Identify Greenhouse Parts Because of the Greenhouse modularity, you may purchase up to three GHM modules to fit your needs. Rion GH30 Greenhouse Assembly Instructions...
- Page 7 Take a minute to make sure you have everything you need. Note: Do not proceed with assembly if any parts are missing. The part code is stamped on each connector. Profiles are listed in order by size, largest to smallest. Panels are identified with stickers.
- Page 8 Top Roof Glazing (58 cm) Window Roof Glazing (56.9 cm) PIN1 Connector Pin Glazing Tool AS 80 Door Runner Screw / Wingnut Allen Wrench 1.5 meters 1.5 meters 1.5 meters 1.5 meters Soft Foam Roof Insulation Rion GH30 Greenhouse Assembly Instructions...
- Page 9 Part Code GH32 GH33 GH34 GH35 Description Sliding Door Model Corner Oval Connector Door12 Sliding Door Top Door Stop (82.5 cm) Door Stop (108.5 cm) Door11 Door Sliding Track (121 cm) Door13 Door Lead (12 cm) Hinged Door Model Corner Oval Connector Corner Oval Hinge Connector Door21 Upper Door Lintel (70 cm)
- Page 10 Place the other 2D connector on the B2 frame profile. Put the other parts of the frame together. Lock the frame together with pins. Rion GH30 Greenhouse Assembly Instructions...
- Page 11 Secure the Frame to Foundation Make sure that the frame is perfectly rectilinear by measuring the diagonals and verifying that they are the same. Use a spirit level to make sure that the frame is level. Acquire the proper hardware before beginning the next procedure.
- Page 12 Attach the Door21 upper door lintel. Tighten with the included AS80 screws and wing nuts through the connectors. Lock the pediment in place using pins and remove the ID strips from the panel. Rion GH30 Greenhouse Assembly Instructions...
- Page 13 Complete Doorway Pediment Attach the E4 and R2 profiles to the lower right pediment. Slide the PN5R panel in place. Make sure that the plastic ID strip faces out. Connect the 4A and 09 connectors to an E2 profile and put it in place taking advantage of the ...
- Page 14 Add E2 profiles to the completed ribs according to the number of modules you have purchased and lock them into place with pins. Complete the roof by attaching the back pediment. Lock it into place with pins. Rion GH30 Greenhouse Assembly Instructions...
- Page 15 Cover the Greenhouse Roof Step in the framework of the lower window to conveniently reach the top of the roof. Place RA1 glazing elements on the top of the roof by placing one end in the top channel ...
- Page 16 WINH handles of the WIN31 Roof Vent using the included pins and place the roof vent in one of the back spaces. Note: Assembly instructions for additional roof vents are included in the packaging. Rion GH30 Greenhouse Assembly Instructions...
- Page 17 Lock the sides of the PN3 and PN3A panels and roof vent in place using RC2 glazing elements. Make sure that the end of the RC glazing elements are in line with the bottom of the RD elements. Finish locking the ...
- Page 18 Note: Do not insert the connectors all of the way into the columns at this time in order to provide enough space to install the panels in the next step. Rion GH30 Greenhouse Assembly Instructions...
- Page 19 Cover the Walls Make sure that the plastic ID strip faces out, and put the panel in place by gently curving it so that it enters the side channels of the columns. Slide the top of the panel into the channel in the bottom of the roof. Continue with the other PN1 panels.
- Page 20 Make sure that the end of the RC glazing elements are in line with the bottom of the RD elements. Note: may now remove the remaining plastic ID strips from the panels. Rion GH30 Greenhouse Assembly Instructions...
- Page 21 Seal Panels Take the roll of GF sealer, divide it as shown, and pull out enough for one side of a PN1 panel. Cut it to length. Align it with the channel of the column profile with the double ridge facing the panel. ...
- Page 22 Assemble the upper portion of the door, noting the tool if needed. direction of the Door12 Slider. Put the PN9W panel in place with the plastic ID strip facing outwards. Rion GH30 Greenhouse Assembly Instructions...
- Page 23 Attach the Door (Sliding Door Model) Remove the pins from the side of the doorway where shown. Cut a piece of DS Door Sealer and place in the channel. Remove the pre- split inner sleeve from DoorW1 ...
- Page 24 Lock the door together with pins. You may now remove the plastic ID strips. Rion GH30 Greenhouse Assembly Instructions...
- Page 25 Attach the Door (Hinged Door Model) Attach the LI6 Door Latch to the lower portion of the door frame. Place the door on the lower hinge. Secure the door to the upper door lintel by screwing in the AS70 screw using the AW5...
- Page 26 • Always close roof vents in high winds. Rion offers a wide range of options for your new Greenhouse, including modular shelves, irrigation systems, additional windows, automatic window openers, and others. Rion GH30 Greenhouse Assembly Instructions...
- Page 27 Notes...
- Page 28 Rion Ltd., Cabri 25120, Israel Tel: +972-4-995-2666, Fax: +972-4-995-2677 email rion@rion.com homepage http:\\www.rion.com MLGH40E 23 November 2003...
