  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 Such conditions may damage your plants. In order to prevent damage: Ensure good ventilation during hot days, Install shading screens, such as the Rion ShadeNet (available as on option). Required Tools Befor you begin assembly, make sure that you have the following tools on hand:...
  • Page 3 All manuals and user guides at all-guides.com Authorized Rion Distributors Germany Systems Trading Corporation - STC Clemens HobbyTec GbR Sales: 450 Seventh Ave. Suite 2803 Rudoif-Diesel-Str.8 New York, NY 10123 D-54516 Wittlich / Germany Tel: 212 239 8230 Ext. 107 Tel: +49 (0) 6571 / 929-222 Toll Free: 800 293 2923 Ext.

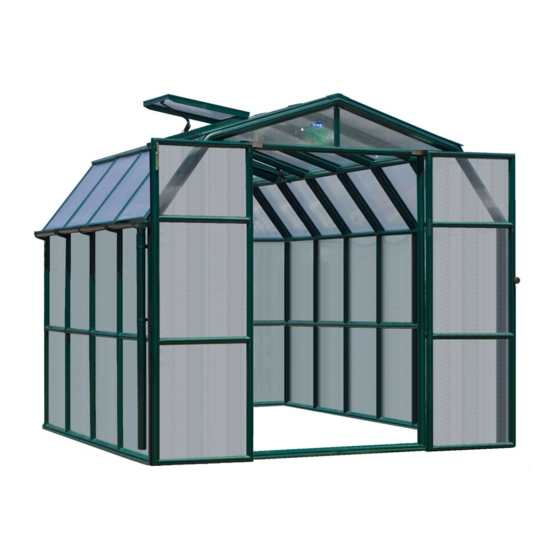

  • Page 4 All manuals and user guides at all-guides.com Introducing your Modular Greenhouse PN60 6 mm Double wall PC. OPAQUE CLEAR 0.7 mm Polycarbonate...
  • Page 5 All manuals and user guides at all-guides.com The five procedures in building a greenhouse Min 1m Step II: See From Page 9 Build the roof Min 1m Step I: Prepare the ground Step IV: See From Page 33 Attach the assembled Step III: roof on the walls See From Page 26...
  • Page 6 All manuals and user guides at all-guides.com Parts list Quantity Quantity CLEAR CLEAR Part Part Code Code OPAQUE OPAQUE Long Pediment Length Connector 682mm 7 /8 ” T - Oval 14 3 Connector Short Length 624mm 5 /8 ” Oval Junction Connector Corner...
  • Page 7 All manuals and user guides at all-guides.com Parts list Quantity Quantity CLEAR CLEAR Part Part Code Code OPAQUE OPAQUE Back GSC10 617x976mm, Pediment 5 /16 7 /16” 2’ x3’2 Strengthining Top Roof Panel (outside) 605x976mm, 573mm, 13 /16 3 /8” 1’...
  • Page 8 All manuals and user guides at all-guides.com Parts list Quantity Quantity CLEAR CLEAR Part Part Code Code OPAQUE OPAQUE P. louvered Hinge Kit Louvre opener Door Kit Solar ligth Connector Pin Solar ligth Soft from Connector Pin Flexible glazing Door sealer Base screw kit Plasrt hangers SUPP1...
  • Page 9 All manuals and user guides at all-guides.com Inside...
  • Page 10 All manuals and user guides at all-guides.com PIN1 PN8L PIN1 PN8R Inside Outside PIN1 -10-...
  • Page 11 All manuals and user guides at all-guides.com Inside...
  • Page 12 All manuals and user guides at all-guides.com Step II Build the roof - Continue with the Back PN8R PN8R BACK PN8L PN8L Outside Inside Inside Outside PIN1 -12-...
  • Page 13 All manuals and user guides at all-guides.com...
  • Page 14 All manuals and user guides at all-guides.com PN5R PN61 PN61 PN5L Outside GSC10 GSC10 PIN1 -14-...
  • Page 15 All manuals and user guides at all-guides.com InSide OutSide PN5R PN61 PN61 PN5L Outside PN5R PN5L Outside -15-...
  • Page 16 All manuals and user guides at all-guides.com Step II †Build the roof - Continue with the Module See Page†42 PIN1 -16-...
  • Page 17 All manuals and user guides at all-guides.com -17-...
  • Page 18 All manuals and user guides at all-guides.com -18-...
  • Page 19 All manuals and user guides at all-guides.com Inside PN40A Outside PN40A PN40A -19-...
  • Page 20 All manuals and user guides at all-guides.com -20-...
  • Page 21 All manuals and user guides at all-guides.com Option PN40 PN40 WIN33 WIN33 Inside Outside WIN33 -21-...
  • Page 22 All manuals and user guides at all-guides.com PN40 PN40 Inside Outside -22-...
  • Page 23 All manuals and user guides at all-guides.com PN40 PN40A PN40A Inside Outside -23-...
  • Page 24 All manuals and user guides at all-guides.com PN40A PN40A Inside Outside PN2A -24-...
  • Page 25 All manuals and user guides at all-guides.com InSide OutSide Inside Outside PN2A PN2A PN2A -25-...
  • Page 26 All manuals and user guides at all-guides.com...
  • Page 27 All manuals and user guides at all-guides.com...
  • Page 28 All manuals and user guides at all-guides.com...
  • Page 29 All manuals and user guides at all-guides.com Inside Outside...
  • Page 30 All manuals and user guides at all-guides.com PN60 PN60 PN60 PN60 PN60 PN60 PN60 PN60 PN60 PN60 PN60 PN60 PN60 PN60 -30-...
  • Page 31 All manuals and user guides at all-guides.com -31-...
  • Page 32 All manuals and user guides at all-guides.com PN60 PN60 PN60 See Page 44 PN60 PN60 PN60 PN60 Option PN60 PN60 PN60 PN60 PN60 Inside Outside Decide upon the louvered window placement, but install it after greenhouse assembly is complete. See Page 44 Decide upon the louvered window placement, but install it after greenhouse assembly is complete.
  • Page 33 All manuals and user guides at all-guides.com Step IV: Attach the assembled roof on the walls -33-...
  • Page 34 All manuals and user guides at all-guides.com -34-...
  • Page 35 All manuals and user guides at all-guides.com...
  • Page 36 All manuals and user guides at all-guides.com...
  • Page 37 All manuals and user guides at all-guides.com...
  • Page 38 All manuals and user guides at all-guides.com PN60 PN61 PN60 PN60 PN60 PN60 PN60 Inside Outside -38-...
  • Page 39 All manuals and user guides at all-guides.com Right door upper hinge Left door upper hinge Left door bottom hinge Right door bottom hinge -39-...
  • Page 40 All manuals and user guides at all-guides.com Door kit -40-...
  • Page 41 All manuals and user guides at all-guides.com -41-...
  • Page 42 All manuals and user guides at all-guides.com CAB40 CAB40 HOOK1 AS70 AS70 CAB40 -42-...
  • Page 43 All manuals and user guides at all-guides.com -43-...
  • Page 44 All manuals and user guides at all-guides.com (a)(b)(c)(d) -Inside (e)- Outside -44-...
  • Page 45 All manuals and user guides at all-guides.com Automatic louvered window opener -45-...
  • Page 46 All manuals and user guides at all-guides.com Automatic roof vent opener ST #6 ” -46-...
  • Page 47 All manuals and user guides at all-guides.com Solar light GS-160 Solar kit -47-...
  • Page 48 All manuals and user guides at all-guides.com Rain gutter on both sides 1”/14 1”/14 1”/14 -48-...
  • Page 49 All manuals and user guides at all-guides.com Clip Aridal INSIDE -49-...
  • Page 50 All manuals and user guides at all-guides.com Two tier staging -50-...
  • Page 51 All manuals and user guides at all-guides.com Plant Hangers -51-...
