Stairmaster JL Replacement

Rung replacement

Hide thumbs Also See for JL:

Download this manual

Enhanced Images: Pictures can be zoomed in to any level for

detail. Use the standard zoom tools for your platform to zoom in.

For your safety, read all warnings and instruction listed in manual JL-40 (JL) OR JL2-05 (JL2).

Ensure the unit is unplugged before servicing.

Required Parts:

• 711-4207 "SERVICE KIT, RUNG ASSEMBLY, JL & JL2"

Required Tools:

• #2 Phillips Screwdriver

• Needle Nose Pliers

• Ratchet Strap

• 1/2" Open-Ended Wrench

• 13mm Open-Ended Wrench

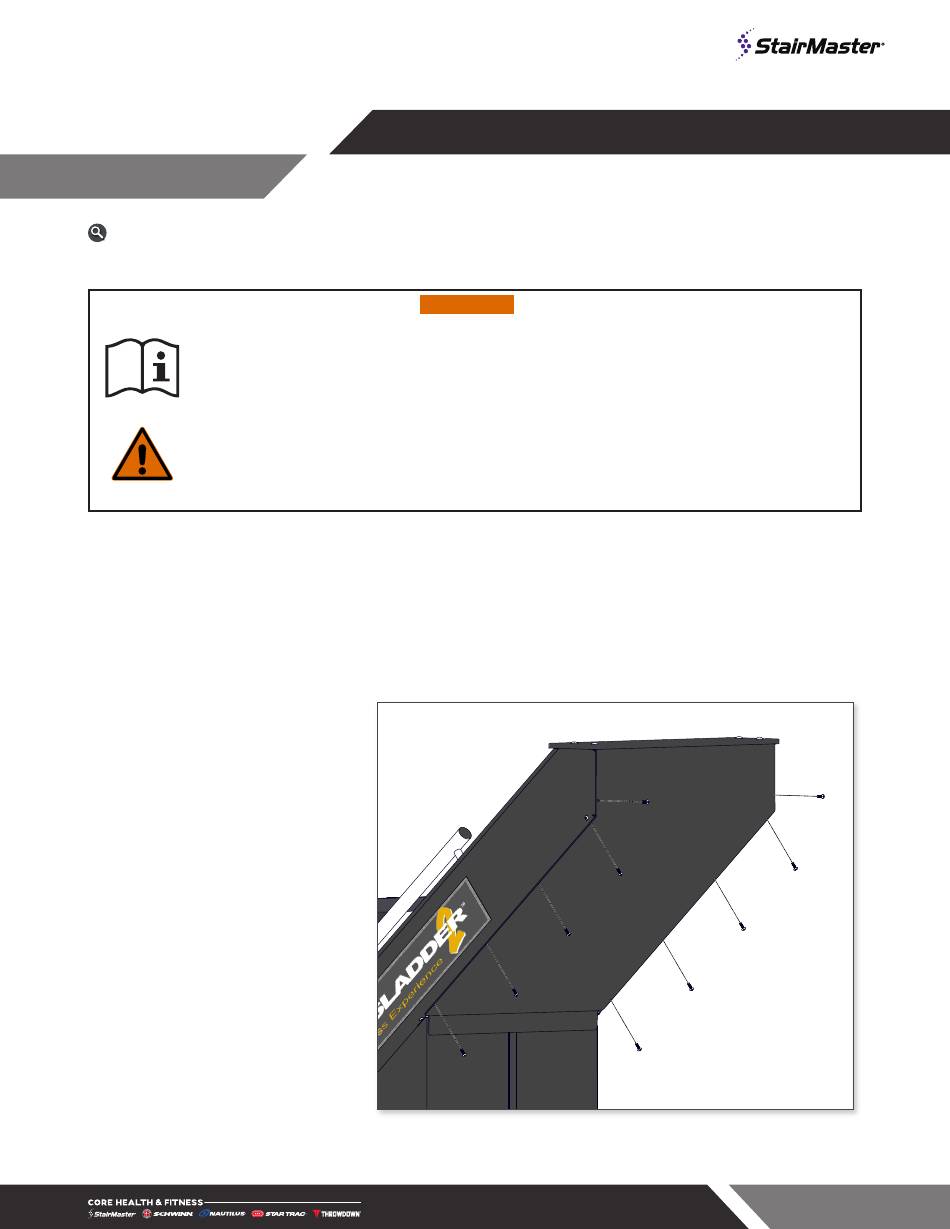

1. Use a #2 phillips screwdriver

to remove the ten (10) screws

securing the upper rear shroud

to the frame, then remove the

shroud.

JL(2) Rung Replacement

WARNING!

Fig. 1

Applies to: JL (9-5360) + JL2 (9-5370)

620-9083 Rev. A

Page 1

Need help?

Do you have a question about the JL and is the answer not in the manual?

Page 1 Enhanced Images: Pictures can be zoomed in to any level for detail. Use the standard zoom tools for your platform to zoom in. WARNING! For your safety, read all warnings and instruction listed in manual JL-40 (JL) OR JL2-05 (JL2). Ensure the unit is unplugged before servicing. Required Parts: •...
Page 2 2. Remove the four (4) screws securing the right side cover to the frame, then remove the cover. Repeat for the left side cover. Fig. 2 3. Use 1/2” open-ended wrench to remove the three (3) flange nuts and washers securing the right handrail to the frame, then remove the handrail.
Page 3 4. Use a 13mm open-ended wrench to remove the three (3) nuts, bolts, and washers securing the right rail cover to the unit, then remove the cover. Repeat for the left rail cover. Fig. 4 RUNG TO BE REPLACED 5. Place a ratchet strap around the RATCHET rungs with the rung that needs to be replaced in the middle.
Page 4 6. Use a pair of needle nose plier to remove the master link clip, then remove the master link. 7. Repeat step 6 for the other link. 8. Remove the chains from the rung and replace with the new rung. 9.
