Enhanced Images: Pictures can be zoomed in to any level for
detail. Use the standard zoom tools for your platform to zoom in.
Required Parts:
• JLX-01-08 "UHMW STRIP DOUBLE-SIDED TAPE, JLX" x2
• JLX-01-16 "UHMW STRIP, RIGHT, JLX
• JLX-01-15 "UHMW STRIP, LEFT, JLX"
Required Tools:
• #2 Phillips Screwdriver

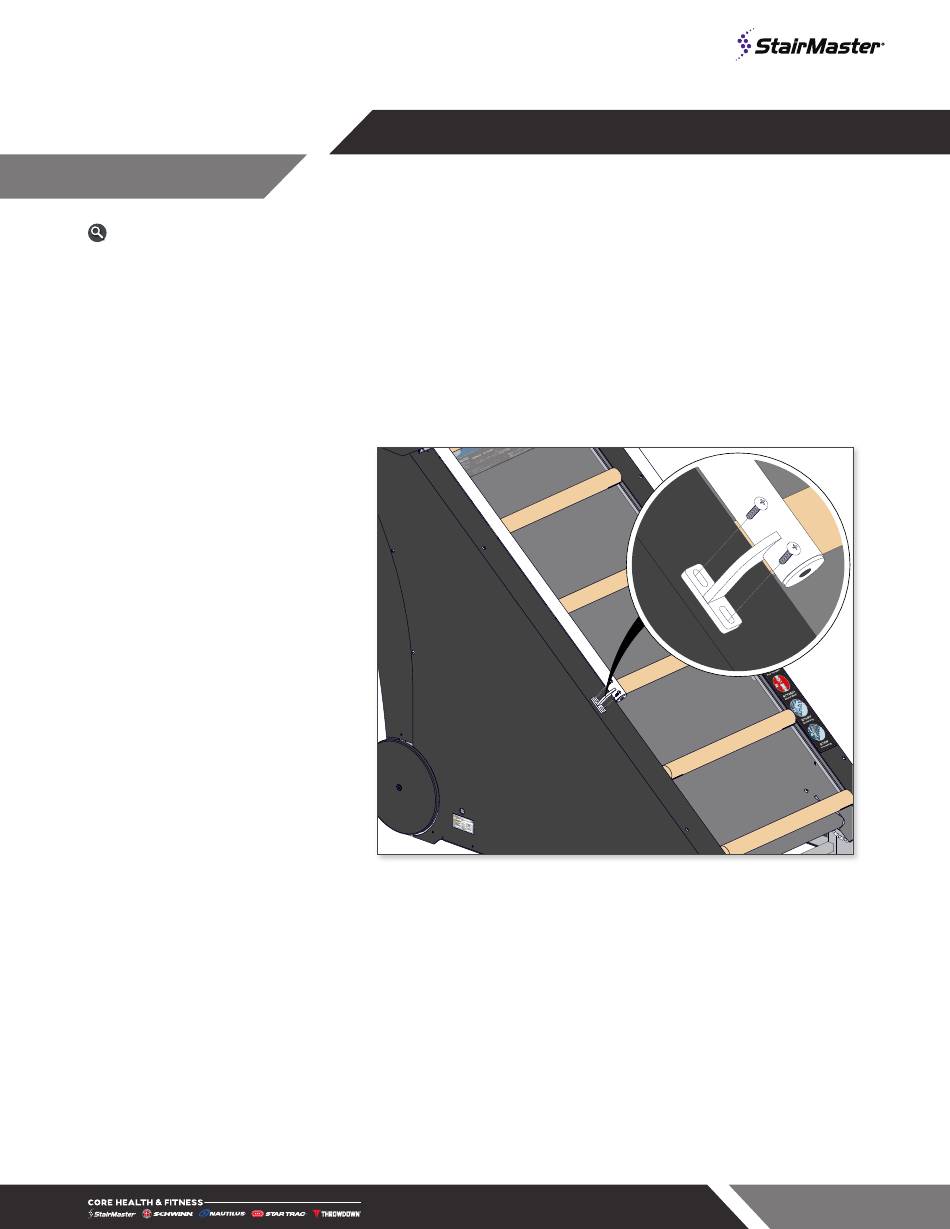

1. Use a #2 phillips screwdriver
to remove the two (2) screws
securing the lower left section
of the left handrail to the frame.
Repeat for the right side.
Replace UHMW Strips
Applies to: JLX (9-5350)
Fig. 1
Page 1
637-8986 Rev. A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Stairmaster JLX
Summary of Contents for Stairmaster JLX
- Page 1 Enhanced Images: Pictures can be zoomed in to any level for detail. Use the standard zoom tools for your platform to zoom in. Required Parts: • JLX-01-08 ”UHMW STRIP DOUBLE-SIDED TAPE, JLX” x2 • JLX-01-16 “UHMW STRIP, RIGHT, JLX • JLX-01-15 “UHMW STRIP, LEFT, JLX”...
- Page 2 2. Remove the two (2) screws securing the left side cover to the unit, then remove the cover. Repeat for the right side cover. Fig. 2 3. Remove the two (2) screws securing the left chainguard to the frame. Fig. 3 Page 2 637-8986 Rev.
- Page 3 4. Remove the two (2) screws securing the right chainguard to the frame. Fig. 4 5. Lay the belt cable with the right chainguard attached on the floor. Fig. 5 Page 3 637-8986 Rev. A...
- Page 4 6. Remove the six (6) screws securing the left and right disc shrouds to the frame, then remove the shrouds. Fig. 6 7. Remove the four (4) screws securing the upper shroud to the frame, then remove the shroud. Fig. 7 Page 4 637-8986 Rev.
- Page 5 8. Remove the three (3) screw securing the right fender to the frame, then remove the fender. Repeat for the left fender. Fig. 8 9. Remove the sixteen (16) screws securing the back right shroud to the unit, then remove the shroud. Fig.
- Page 6 10. Remove the seven (7) screws securing the back left shroud to the unit, then remove the shroud. Fig. 10 11. Remove the remaining nine (9) screws from the right side shroud, then remove the shroud. Repeat for the left side shroud. Fig.
- Page 7 12. Use a #2 phillips screwdriver to remove the three (3) screws securing the old UHMW strip to the frame. Fig. 12 13. Remove the old strip and tape. Be sure to clean any residue off of the frame. Fig. 13 Page 7 637-8986 Rev.
- Page 8 14. Apply the new double stick tape (JLX-01-08) to the frame, ensuring the holes in the tape align in the holes in the frame - DO NOT REMOVE THE TOP PROTECTIVE FILM. Fig. 14 15. Feed the replacement right side...
