For your safety, read all warnings and instruction listed in manual 637-8883.
Ensure the unit is unplugged before servicing.
Required Parts:
• JLX-02-02: "SERVICE KIT, RUNG ASSEMBLY, JLX"
Required Tools:
• #2 Phillips Screwdriver
• 13mm Open Ended Wrench
• Needle Nose Pliers
• Torque Wrench
• 13mm Socket

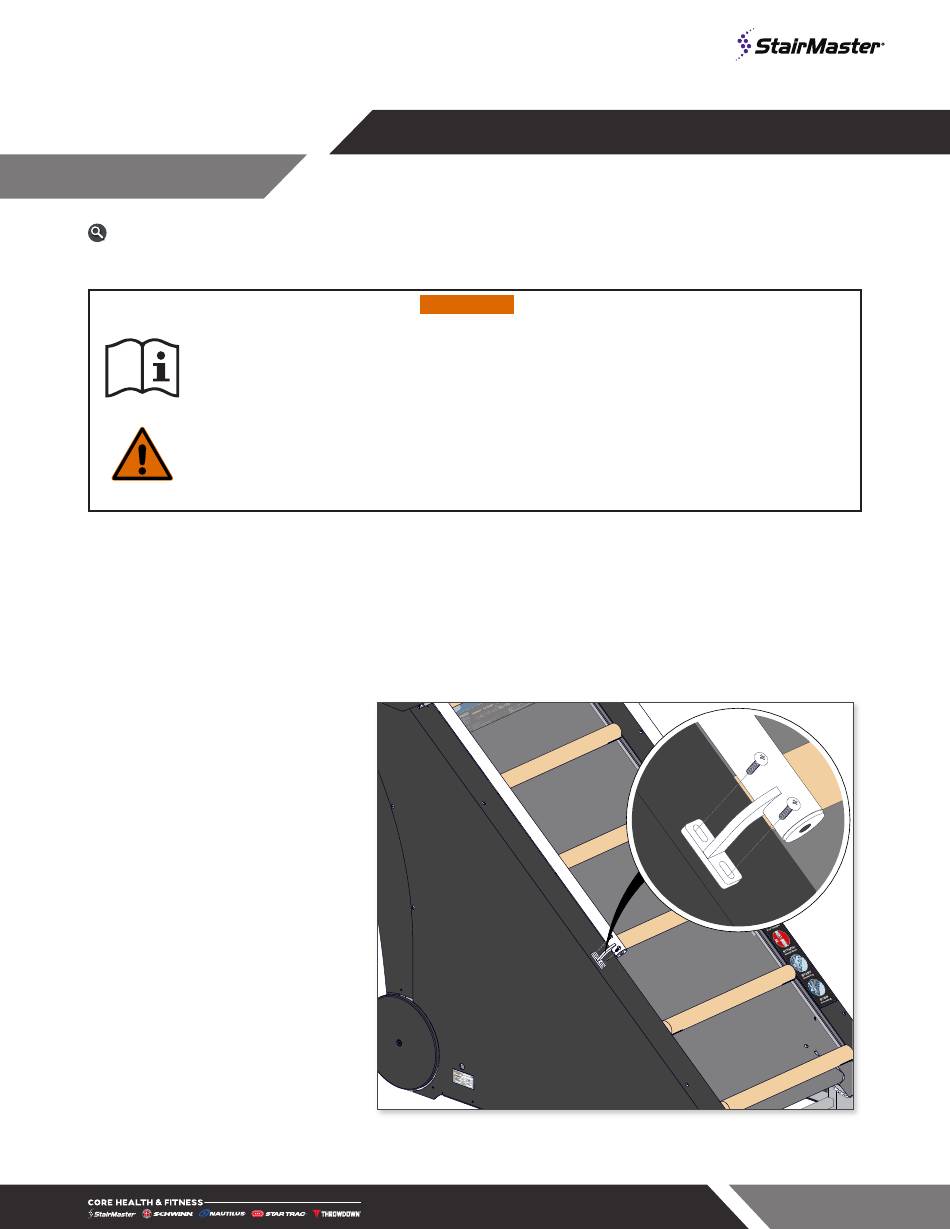

1. Use a #2 phillips screwdriver
to remove the two (2) screws
securing the lower left section
of the left handrail to the frame.
Repeat for the right side.
JLX Rung Replacement
WARNING!
Fig. 1
Applies to: JLC (9-5350)
Page 1
620-9068 Rev. A
