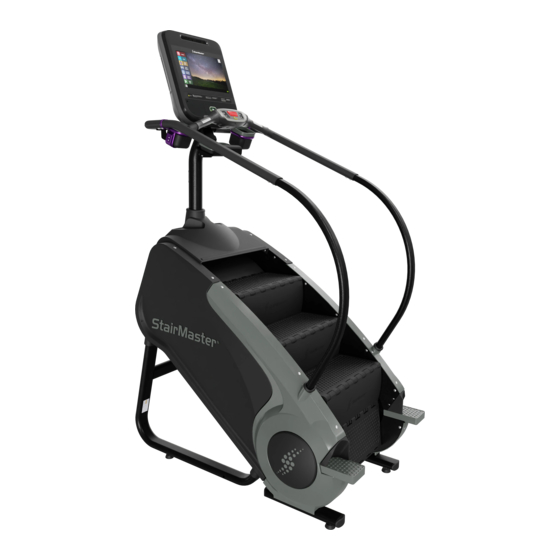

Gauntlet®
050-0326

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gauntlet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stairmaster Gauntlet

Summary of Contents for Stairmaster Gauntlet

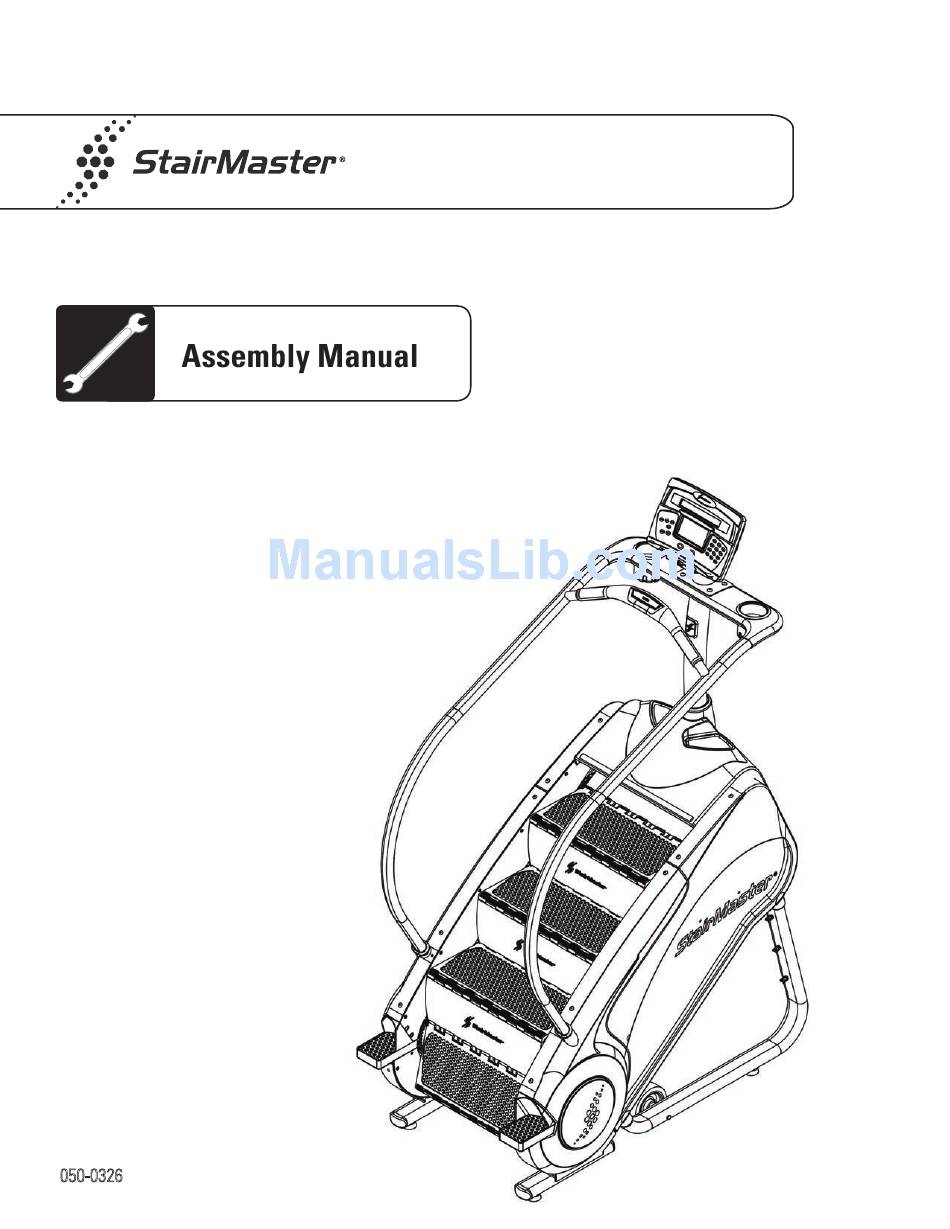

  • Page 1 Gauntlet® 050-0326...
  • Page 2 Table of Contents Model Gauntlet Specificatio ............................ 2 Safety Warnings ..................................3 Safety Caution and Warning Labels..........................4 Before You Start ..................................5 Hardware ....................................6 ....

  • Page 3: Important Safety Instructions

    Contact your doctor before using the machine again. Examine this machine for loose parts or signs of wear. Pay special attention to the steps. Contact StairMaster® Customer Service for repair information. Use only genuine StairMaster® replacement parts. Set up and operate your ®...
  • Page 4 Gauntlet StairMaster $IIL[HG WR WKH EDFNVLGH RI WKH OHJ RQ WKH *DXQWOHW PDFKLQH VHH ILJXUH  Assembly Manual...

  • Page 5: Before You Start

    Before You Start ® Locate the area where you will assemble and use your StairMaster Commercial Gauntlet. We recommend you install it on a hard, level surface. Allow an assembly area of at least 36” (0.91 m) on each side and behind the machine. You can put the rear of the machine closer to the wall during use.
  • Page 6 Hardware 5/16 " - 18 *1 3/4” Button Head Screw 3/8 " - 16 * 1" Button Head Screw 1/4 " - 20 * 3/4" Phillips Head Screw 5/16” - 18 * 3/4” Button Head Screw 3/8” -16 * 2 1/2” Button Head Screw 3/8”...

  • Page 7: Box Contents

    Box Contents s ’ r l l u Hardware Card #1 Hardware Card #2 Power Supply & Power Cord Kit l i a Cover Handrail Right Assembly Manual...
  • Page 8 Box Contents Console Options Console Mast Lower Touchscreen or LCD Console Upper Handrail Assembly Lower Handrails Rubber Sleeve (Console Mast) Rubber Sleeve (Handrails) Wheel Panel Left Wheel Plate Bracket Mast Mount End Cap Console Mast Upper Assembly Manual...
  • Page 9 Assembly The following instructions provide direction to assemble the StairMaster ® Gaunltet. All instructions in the manual are given with the orientation of standing on a level surface and facing the machine. (See Figure 1) Step 1: Unpacking the Gauntlet...
  • Page 10 Assembly 3-1 Secure item #37(Bracket Mast Mount) to frame 3-2 Slide item #33(Rubber Sleeves Handrail) below the bolt holes on item #31(Lower Handr (Note: there is a left and a right handrail) 3-3 Attach item #31(Lower Handrails) to mounting frame brackets using hardware items #2, #11, Assembly Manual...
  • Page 11 4-5 Fasten all bolts, slide item #23(Top Cover) and item #32 (Rubber Sleeve) into position. Use item #19(Rivet) to fasten 4-5 Standing in front of the Gauntlet, attach item #29 (upper Handrail Assy) to item #31using hardware item #4 ( gure 4D)
  • Page 12 Assembly Step 5: Install Console 5-1 Fasten green ground wire from back of console 5-2 Connect the wiring, power harness, heart rate and stop switch cables to their respective locations in the back of th console. Note: Make sure cables and harnesses are not crimped or pinched while attaching the console to the mast.
  • Page 13 Use a second person when performing assembly steps requiring heavy lifting or awkward movements. 8-1 With the assistance of another person, tilt the Gauntlet to one side and insert hardware item #13(Clevis Pin) from the outside of the frame, slide item #15(Wheel) 8-2 While tilted to one side, insert hardware item #20 (Levelers) in the front and back of the Gaunlet.
  • Page 14 Assembly Use a second person when performing assembly steps requiring heavy lifting or awkward movements. ® Roll the StepMill machine to the workout location. With the assistance of another person, tilt the ® StepMill machine to one side and remove the Cotter Pin, the Clevis pin and the Wheel (Figure 9 ).
  • Page 15 Assembly Connect the DC Power Cable from the Power Supply to the power connector located on the bottom cover (Figure 10). Place the Power Supply on the floor near an AC wall outlet. Check that the Input AC Power Rating marked on the Power Supply matches the available power.
  • Page 16 Mast hardware detail Item #’s listed in balloons Assembly Manual Assembly Manual...
  • Page 17 Handrail Hardware detail Item #’s listed in balloons Assembly Manual...
  • Page 18 Vancouver, Washington 98662 1-888-678-2476 | www.stairmaster.com Please supply the serial number of your machine and the date of purchase when you call StairMaster. Use the space in the boxes below to write down this information. To d the serial number on your machine, refer to the Safety Warning Label information page.
  • Page 19 © 2011 Core Fitness, LLC, dba StairMaster. All rights reserved. StairMaster and the StairMaster logo are either registered trademarks or trademarks of Core Fitness, LLC. All other trademarks are owned by their respective companies. StairMaster, 4400 NE 77th Ave, Suite 300, Vancouver, WA 98662 1-888-678-2476 | www.stairmaster.com...
