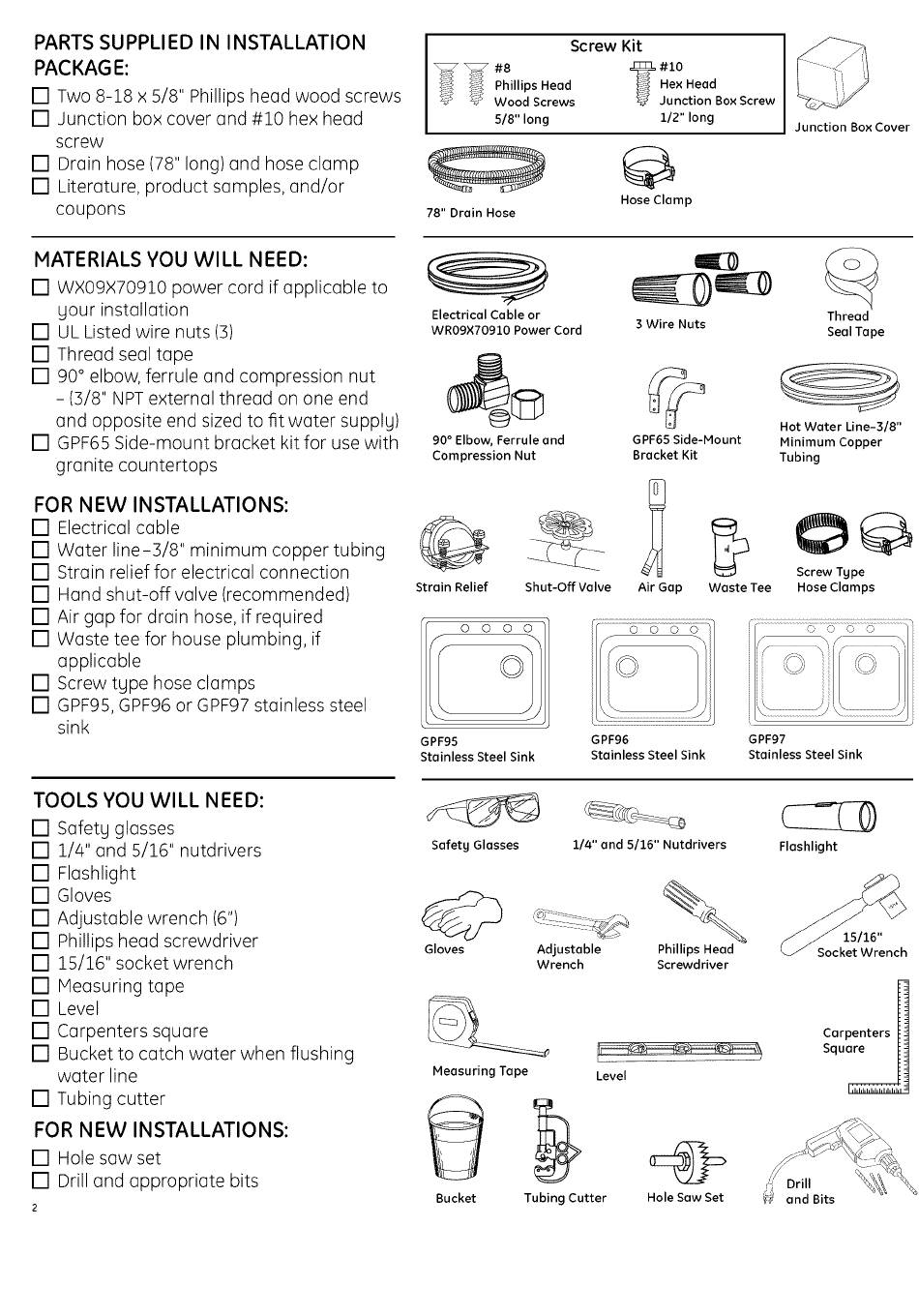

PARTS SUPPLIED IN INSTALLATION
PACKAGE:
[] Two 8-18 x 5/8" Phillips head wood screws
[] Junction box cover and #10 hex head
screw
[] Drain hose (78" long) and hose clamp
[] Literature, product samples, and/or
coupons
Screw Kit
Phillips Head }_ Hex Head
_'_ Wood Screws _ Junction Box Screw
5/8" long 112" long
78" Drain Hose
Hose Clamp
Junction Box Cover
MATERIALS YOU WILL NEED:
[] WX09X70910 power cord if applicable to
gour installation
[] UL Listed wire nuts (3)
[] Thread seal tape
[] 90 ° elbow, ferrule and compression nut
- (3/8" NPT external thread on one end
and opposite end sized to fit water supplg)
[] GPF65 Side-mount bracket kit for use with
granite countertops
FOR NEW INSTALLATIONS:
[] Electrical cable
[] Water line-3/8" minimum copper tubing
[] Strain relief for electrical connection
[] Hand shut-off valve (recommended)
[] Air gap for drain hose, if required
[] Waste tee for house plumbing, if
applicable
[] Screw tgpe hose clamps
[] GPF95, GPF96 or GPF97 stainless steel
sink
Electrical Cable or
WRO9X70910 Power Cord
90 ° Elbow, Ferrule and
Compression Nut
Strain Relief Shut-OffValve
GPF95
Stainless SteelSink
3 Wire Nuts
GPF65 Side-Mount
Bracket Kit
Air Gap Waste Tee
GPF96
Stainless Steel Sink
Thread
Seal Tape
Hot Water Line-3/8"
Minimum Copper
Tubing
Screw Tgpe
Hose Clamps
J r \ '/ _,
GPF97
Stainless Steel Sink
TOOLS YOU WILL NEED:
[] Safetg glasses
[] 1/4" and 5/16" nutdrivers
[] Flashlight
[] Gloves
[] Adjustable wrench (6")
[] Phillips head screwdriver
[] 15/16" socket wrench
[] Measuring tape
[] Level
[] Carpenters square
[] Bucket to catch water when flushing
water line
[] Tubing cutter
FOR NEW INSTALLATIONS:
[] Hole saw set
[] Drill and appropriate bits
2
Safetg Glasses
Gloves
114" and 5116" Nutdrivers
Adjustable
Wrench
Phillips Head
Screwdriver
Measuring Tape
Bucket
Level
Tubing Cutter
Hole Saw Set
Flashlight
_16"
Socket Wrench
Carpenters
Square H
Drill
and Bits
