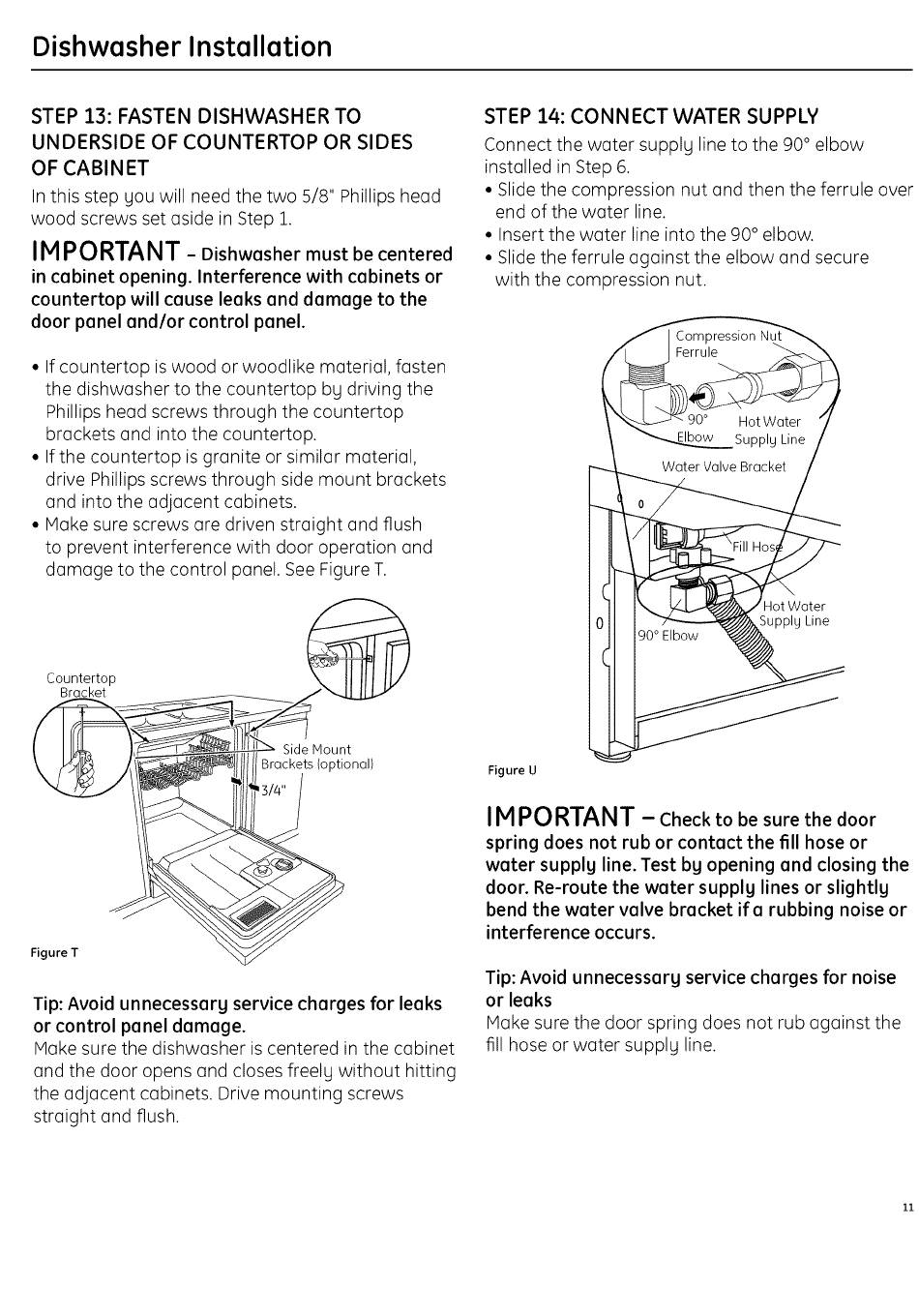

Dishwasher Installation
STEP 13: FASTEN DISHWASHER TO
UNDERSIDE OF COUNTERTOP OR SIDES
OF CABINET
In this step you will need the two 5/8" Phillips head
wood screws set aside in Step 1.
IM PORTANT
- Dishwasher must be centered
in cabinet opening. Interference with cabinets or
countertop will cause leaks and damage to the
door panel and/or control panel.
• If countertop is wood or woodlike material, fasten
the dishwasher to the countertop by driving the
Phillips head screws through the countertop
brackets and into the countertop.
• If the countertop is granite or similar material,
drive Phillips screws through side mount brackets
and into the adjacent cabinets.
• Make sure screws are driven straight and flush
to prevent interference with door operation and
damage to the control panel. See Figure T.
Countertop
Bracket
Side Mount
Brackets {optional}
Figure T
Tip: Avoid unnecessary service charges for leaks
or control panel damage.
Make sure the dishwasher is centered in the cabinet
and the door opens and closes freely without hitting
the adjacent cabinets. Drive mounting screws
straight and flush.
STEP 14: CONNECT WATER SUPPLY
Connect the water supply line to the 90° elbow
installed in Step 6.
• Slide the compression nut and then the ferrule over
end of the water line.
• Insert the water line into the 90 ° elbow.
• Slide the ferrule against the elbow and secure
with the compression nut.
Hot Water
SupplU Line
Figure U
IM PORTANT
- Check to be sure the door
spring does not rub or contact the fill hose or
water supplg line. Test bg opening and closing the
door. Re-route the water supplg lines or slightlg
bend the water valve bracket ifa rubbing noise or
interference occurs.
Tip: Avoid unnecessarg service charges for noise
or leaks
Make sure the door spring does not rub against the
fill hose or water supplu line.
11
