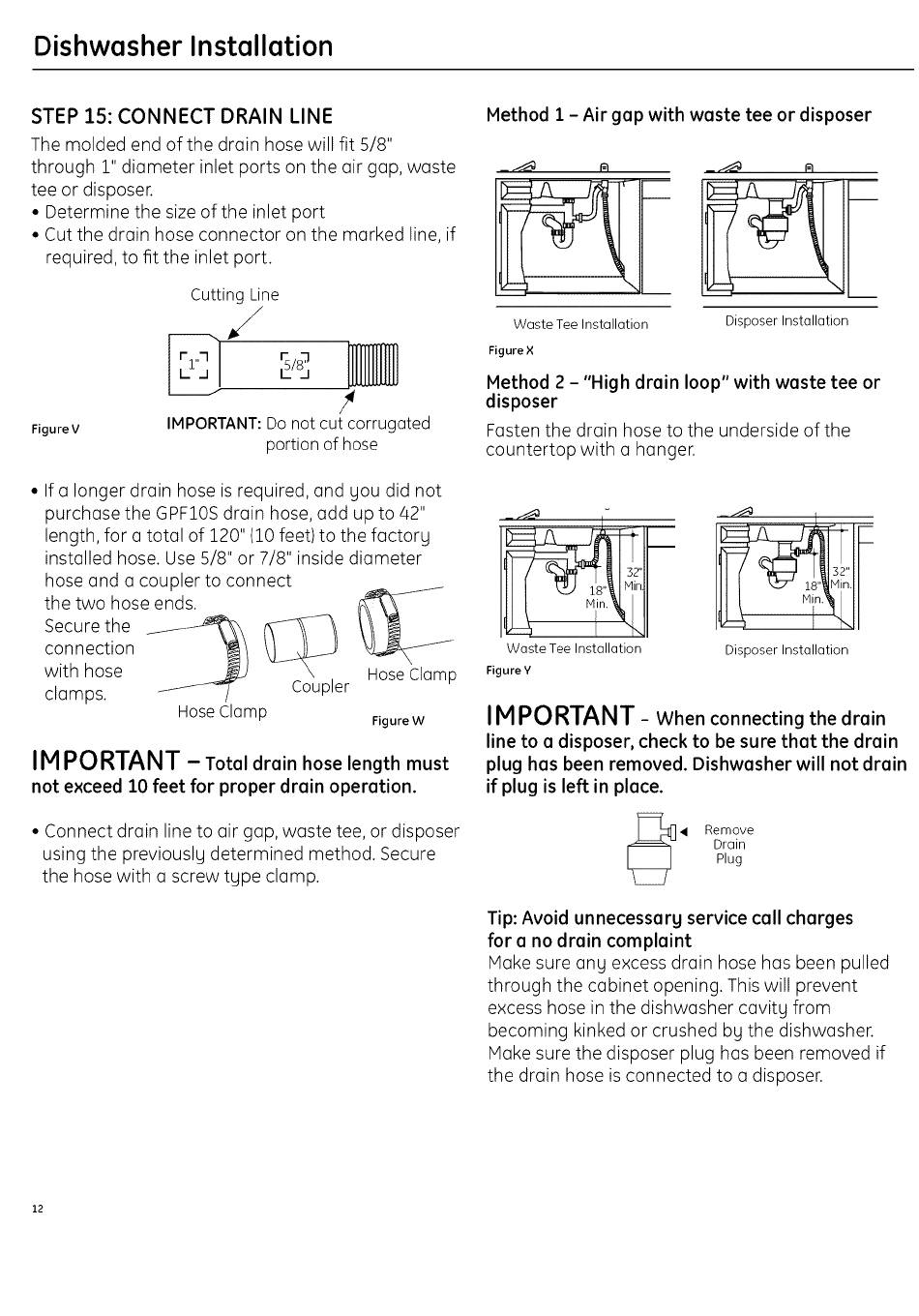

Dishwasher Installation
STEP 15: CONNECT DRAIN LINE
The molded end of the drain hose will fit 5/8"
through 1" diameter inlet ports on the air gap, waste
tee or disposer.
• Determine the size of the inlet port
• Cut the drain hose connector on the marked line, if
required, to fit the inlet port.
Figure V
Cutting Line
/.
IMPORTANT: Do not cut corrugated
portion of hose
• If a longer drain hose is required, and gou did not
purchase the GPF10S drain hose, add up to 42"
length, for a total of 120" (10 feet) to the factorg
installed hose. Use 5/8" or 7/8" inside diameter
hose and a coupler to connect
the two hose ends.
Secure the _
connection
with hose
clamps. Coupler
Hose Clamp
Hose Clamp
Figure W
IM PORTANT
- Total drain hose length must
not exceed 10 feet for proper drain operation.
• Connect drain line to air gap, waste tee, or disposer
using the previouslg determined method. Secure
the hose with a screw tgpe clamp.
Method I - Air gap with waste tee or disposer
__ r_ __ r¢
Waste Tee Installation Disposer Installation
Figure ×
Method 2 - "High drain loop" with waste tee or
disposer
Fasten the drain hose to the underside of the
countertop with a hanger.
32"
Waste Tee Installation
Figure ¥
Disposer Installation
IM PORTANT
- When connecting the drain
line to a disposer, check to be sure that the drain
plug has been removed. Dishwasher will not drain
if plug is left in place.
_4 Remove
Drain
Plug
Tip: Avoid unnecessary service call charges
for a no drain complaint
Make sure ang excess drain hose has been pulled
through the cabinet opening. This will prevent
excess hose in the dishwasher cavitg from
becoming kinked or crushed bg the dishwasher.
Make sure the disposer plug has been removed if
the drain hose is connected to a disposer.
