Summary of Contents for udir/c SKATER BOAT

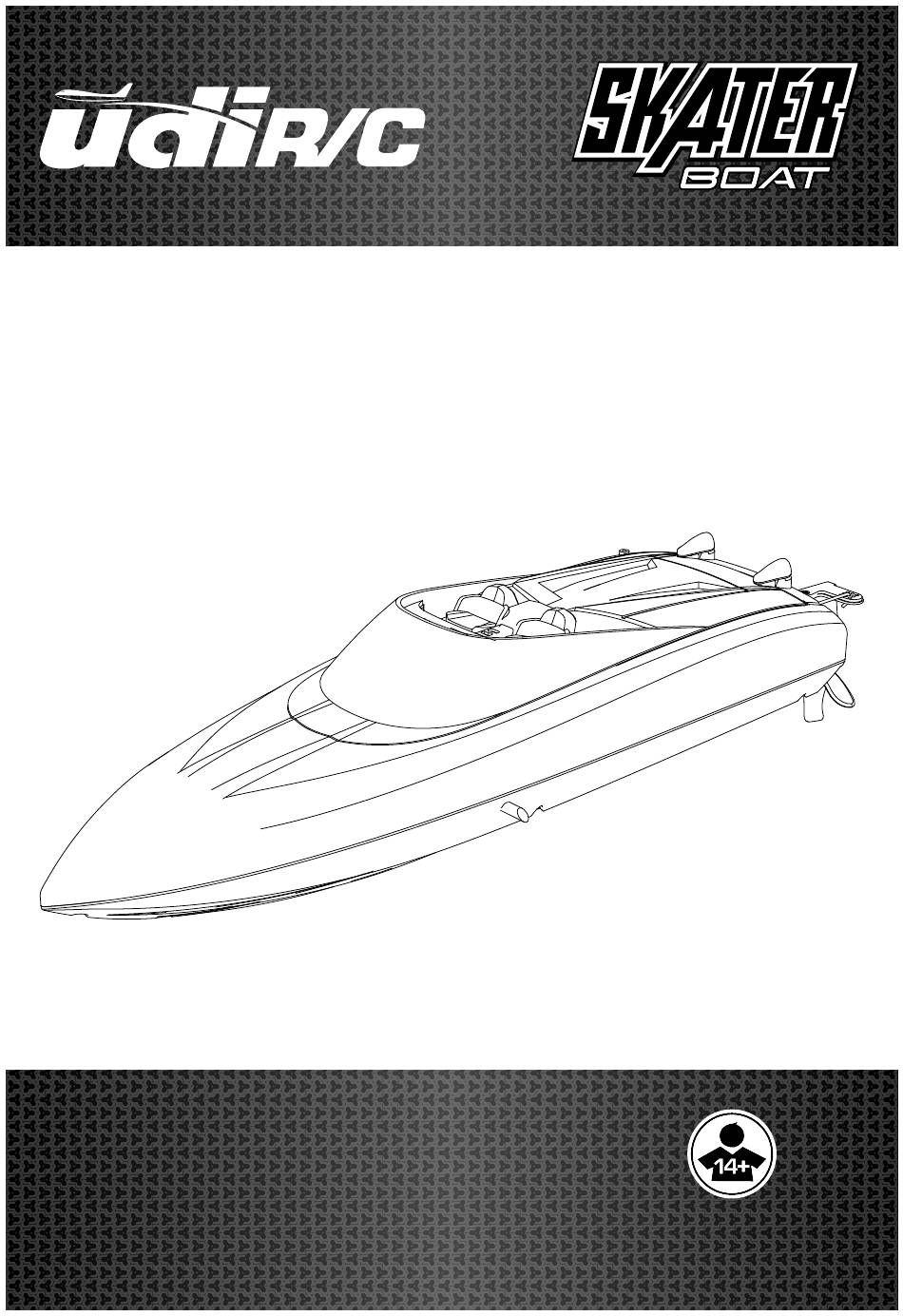

- Page 1 OPERATING INSTRUCTIONS V1.0 This product is suitable for users over 14 years old. DANGER! Please read this instruction manual carefully befores use. Only suitable for age 14+...
- Page 2 IMPORTANT NOTICE The package or instruction manual contains important information and must be retained. Our company's products are improving all the time, design and specifications are subject to change without notice. All the information in this manual has been carefully checked to ensure accuracy, if any printing errors, our company reserve the final interpretation right.
- Page 3 WARNING Warning: The product should only be used by adults and children over 14 years. Adult supervision is required for children under 14 years. Hinweis: Dieses Produkt ist für die Erwachsene und die Kinder ab 14 Jahren. Die kinder unter 14 Jahren müssen von Erwachsenen beaufsichtigt werden. Avertissement:Ce produit est destiné...
- Page 4 RECHARGEABLE BOAT-BATTERY BATTERY SAFETY Read and follow all precautions before use. Improper use of batteries may lead to danger. • It is normal for the battery to heat up after operation. • Please be careful when handling the battery. If the wire is worn, FIRE HAZARD! it is easy to short circuit and cause fire.
- Page 5 2.4GHZ TRANSMITTER ③ Power switch CH1, Steering wheel ④ ① Neutral ② Left Right ⑤ Battery Cover 1.5V×4 AA Alkaline Batteries ! NOTE DIRECTION (not included) Open the transmitter battery cover. Install batteries. Follow the direction of batteries designated in the inside of the battery box. COPYRIGHT ©...
- Page 6 CH2, Throttle trigger ② Note: When using the transmitter in electric powered boat, the throttle Backward trigger should always remain in the /Speed down neutral position. Otherwise the boat may experience erratic operation of the throttle trigger Forward functions. Neutral /Speed up If the boat capsizes, Push forward and backward the throttle trigger of the transmitter and then pull...
- Page 7 BOAT SUMMARY Cabin outer cover Cabin inner cover Innerlock Innerlock Gasket Cabin cover Outerlock Motor Boat-battery Steering engine Self-Righting Hull Head cover Hull bottom Outlet Battery compartment Water contact Navigation Tail rudder Propeller Align the head cover with the bottom hole of the boat and install it in the right place.
- Page 8 Speed control & Receiver (SCR) Antenna Motor input Power input Steering engine input Self-Righting Hull Water contact Drive assembly Screw Drive wheels Screw Spindle tube fastener Motor Spindle tube Anti-skid Motor mounts Spindle tube Propeller mounts Propeller COPYRIGHT © UDIRC ®...
- Page 9 Steering Screw Fixing parts Screw Steering engine Tail rudder Bracket Steering engine arm Screw Steering linkage Tail rudder When the new steering gear is powered on, the installation should be conducted in the direction of disassembly sequence. Replace the steering gear with powered on, please noted the propeller turns unexpectedly.
- Page 10 ASSEMBLY OF BOAT-BATTERY Cabin outer cover ① 1) Twist the outerlock and take out the cabin outer cover. ② Cabin inner cover 2) Unlock the innerlock and take out the cabin inner cover. Boat-battery Battery compartment ③ SCR input port Battery output port 3) Put the boat-battery into the battery compartment and properly connected the SCR input port.
- Page 11 FREQUENCY MATCHING Please make sure the transmitter throttle trigger and Steering wheel to normal before starting up. Do not touch the throttle trigger when turning on the power of the transmitter. Transmitter Power switch In the water 1) Power on the transmitter, will sound “di”, and the indicator light flashes to enter the frequency matching.
- Page 12 Water cooling system The motor lowers the temperature by flowing water. During the voyage, water flows through the heat pipe around the motor, which has a cooling effect on the motor. TROUBLESHOOTING Problem Solution 1) Replace the transmitter battery. The transmitter 2) Please make sure the battery is installed correctly.
