Safety
This device must be installed and maintained only by qualified, trained personnel. Observe the safety requirements of
EN IEC 62368-1. Operate the sensor only with an SELV (ES1) supply with a limited output of up to 100 W (PS2).
Use standard electrostatic discharge precautions when handling sensitive components.

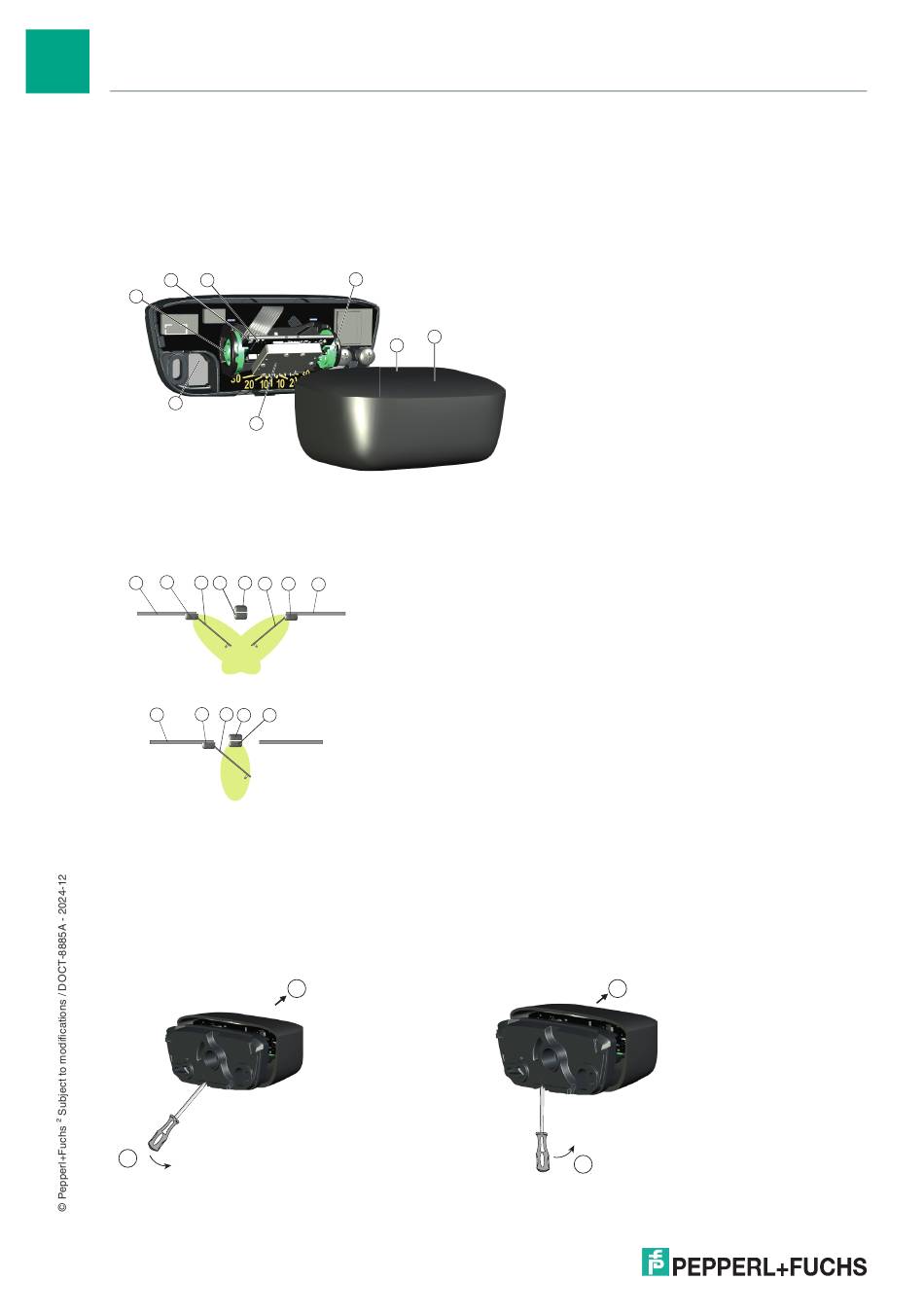

Description
2 3
1
4
8
Application
Installation Notes for Swing Door
Double Swing Door
1 2 3 4 5
3
Single Swing Door
2 3
1 5 4
Mount the sensor (2) facing the opening door leaf directly above the hinge.
When mounting on the swing doors, the sensor can be either mounted on the door hinge side (2) or centrally above the door (4).
Set the detection field (SET) mode to match the mounting position. For mounting on the door hinge side (2), set the sensor's rota-
tional angle approximately to 30° looking towards the center of the swing door.
There are no restrictions for the sensor (5) facing away from the door.
Removing the Cover
Before wall mounting
1
Refer to "General Notes Relating to Pepperl+Fuchs Product Information"
Pepperl+Fuchs Group
www.pepperl-fuchs.com
5
7
6
2
1
2
Tel: +49 621 776-0
E-Mail: info@de.pepperl-fuchs.com
1 Push button, left: -
2 Push button and detection indication:
LED green
3 Push button indication: LED yellow
4 Cable entry (default)
5 Push button, right: +
6 Top cable entry (optional breakout area)
7 Cover
8 Detection: LED green
1 Wall
2 RaCon-D (door hinge side)
3 Door
4 RaCon-D (center)
5 RaCon-D
After wall mounting
2
1
1
