Operating Guide Termix Compact 28 MST VMTD

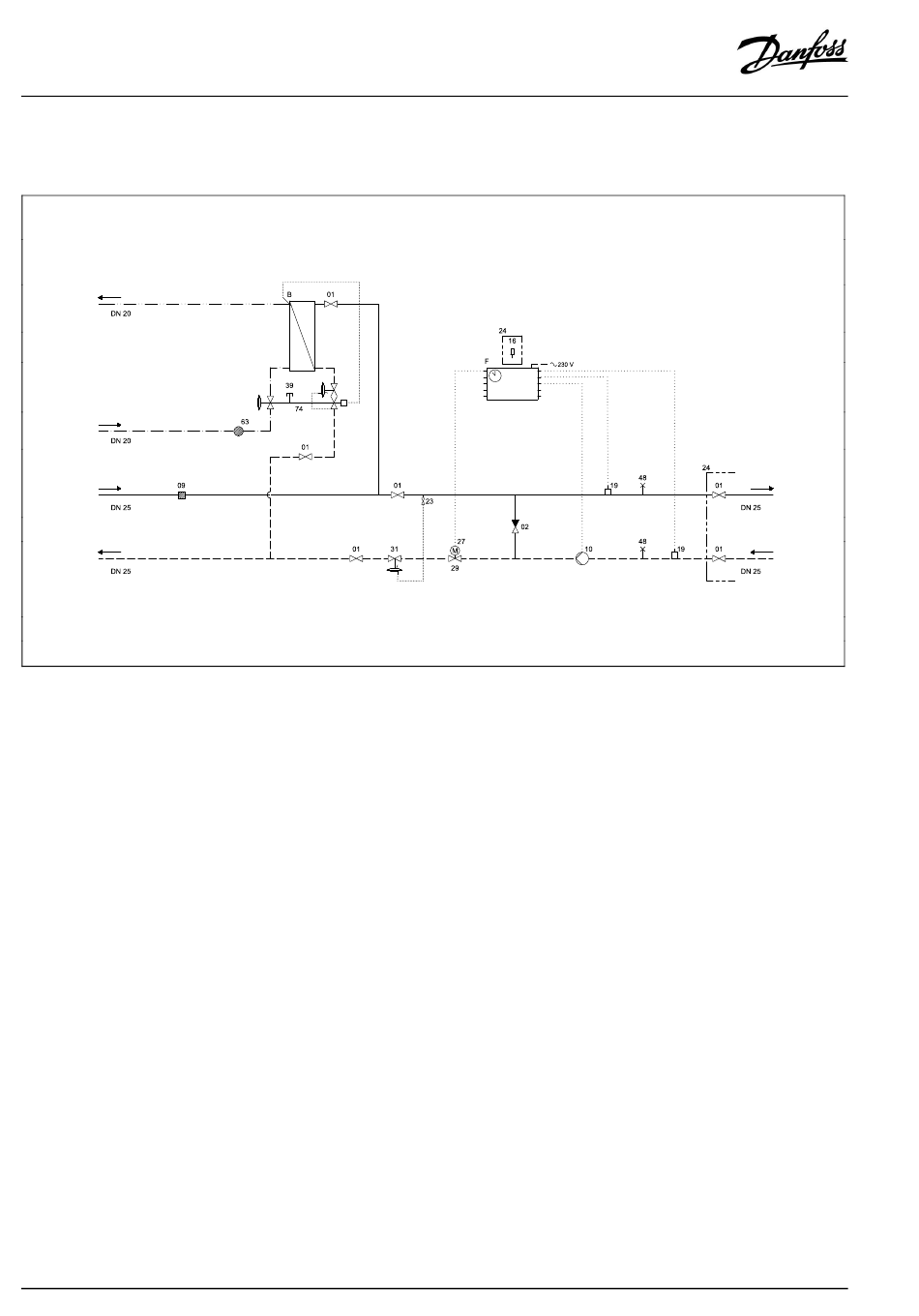

5.2 Schematic diagram
5.2.1 Schematic diagram Termix Compact 28 MS VMTD
DHW
DCW
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description
B Heat exchanger DHW
F Electronic controller
1
Isolation valve
2
Singlecheck valve
9
Strainer
10 Circulator pump
DH Supply: District Heating Supply
District Heating Return
DH Return:
Heating Supply
HE Supply:
HE Return: Heating Return
DHW: Domestic hot water
DCW: Domestic cold water
5.2.2 Technical parameters
Nominal pressure:
Max. DH supply temperature:
Brazing material (HEX):
Heat exchangers test pressure:
Sound level:
14 | © Danfoss | 2024.08
16 Outdoor sensor
19 Surface sensor
23 Ball valve
24 Delivered loose with unit
27 Actuator
29 2–way motorized valve
PN 16
110 °C
Copper
30 bar
≤ 55 dB
31 Differential pressure controller
39 Connection closed
48 Air vent, manual
63 Sieve
74 IHPT
AQ461051191125en-000202 / LUK53534
