Operating Guide Termix Compact 28 MST VMTD
5.0 Design
5.1 Design
Your substation might look different than the substation shown.

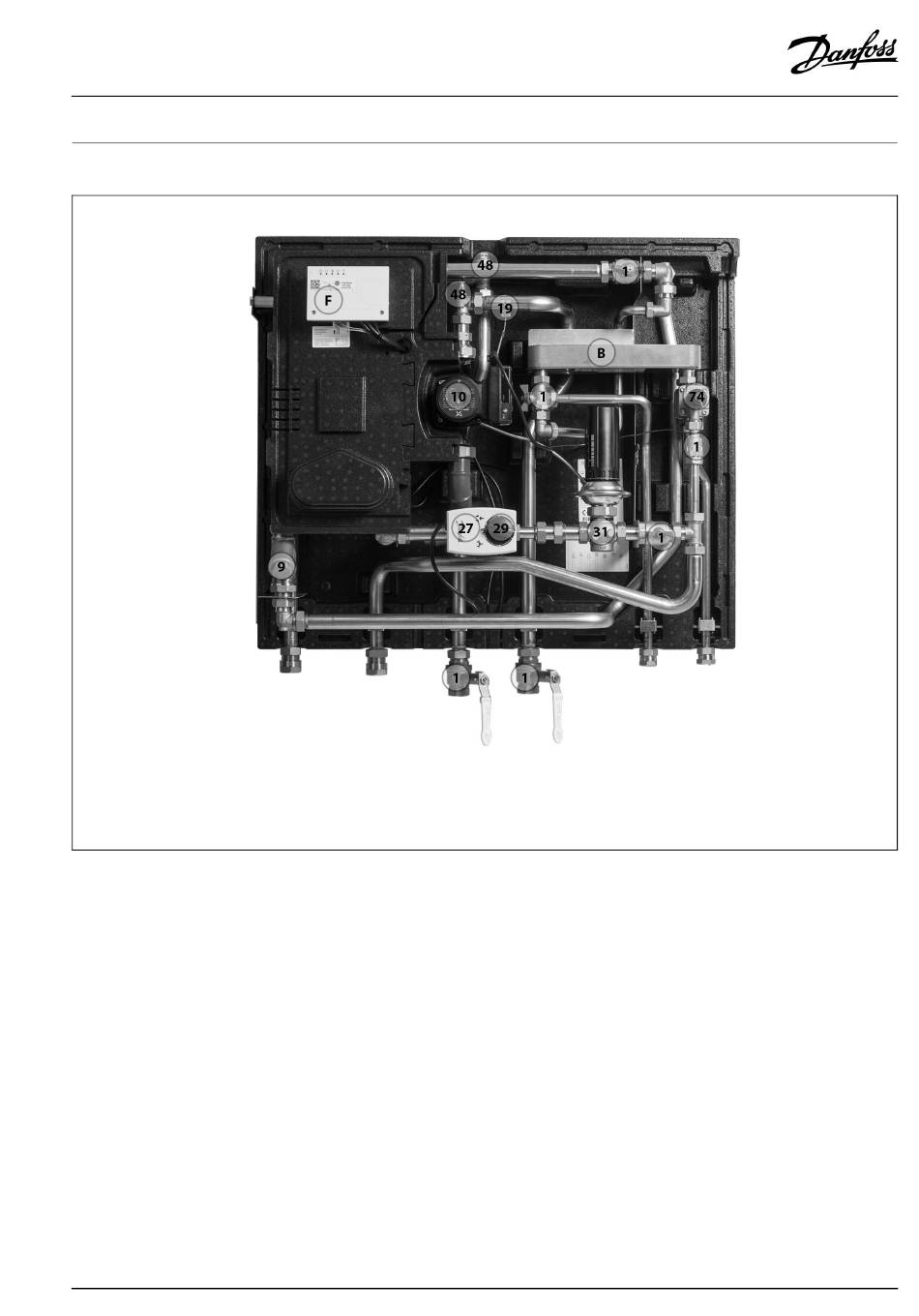

Design description
B Heat exchanger DHW
F Electronic controller
1
Isolation valve
9
Strainer
AQ461051191125en-000202 / LUK53534
10 Circulator pump
19 Surface sensor
27 Actuator
29 2–way motorized valve
31 Differential pressure controller
48
Air vent, manual
74
IHPT
