Geutebruck G-Cam HSD-1510 Quick Manual

This guide is for quick installing and connecting the G-Cam/HSD-1510 H.265 Network PTZ Camera.
For more details, please refer to the User's Manual. shop.geutebrueck.com
Installation Notices
• This camera must be installed by qualified personnel and the installation should conform to all local codes.
• Do not replace batteries of the camera. Risk of explosion may occur if the battery is replaced by an incorrect
type.
• To use an external power supply, please contact the camera manufacturer to confirm that the power supply
uses the same power specifications as the camera. The power supply must comply with the LPS requirements.

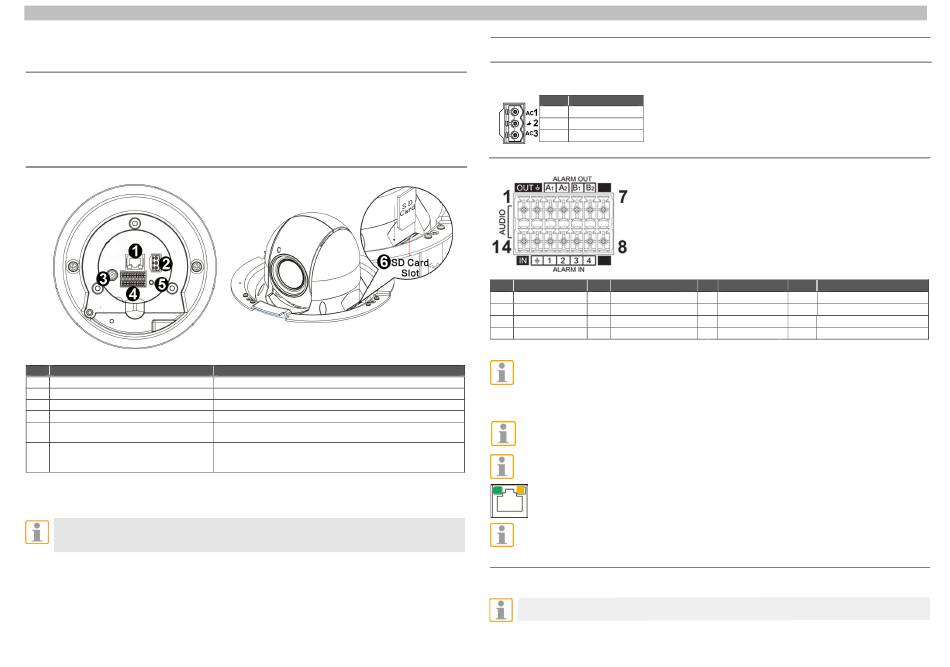

Camera's Connectors
No. Connector
1
RJ-45 Port
2
Power Connector (AC24V)
3
BNC
Audio/Alarm I/O & RS-485 Connector*
4
5
Reset Button
6
SD Card Slot
*Do NOT connect external power supply to the alarm I/O connector of the camera.
NOTE: It is not recommended to record with the microSD card for 24/7 continuously, as it may not be
able to support long term continuous data read/write. Please contact the manufacturer of the
microSD card for information regarding the reliability and the life expectancy.
G-Cam/HSD-1510 H.265 IP Network PTZ Camera Quick Guide
Definition
For network and PoE+ connections
AC24V power connection
For analog video output
Audio/Alarm I/O & RS-485 connection
Press the button for at least 1 second to restore the camera's
factory settings.
Open the dome cover and insert the SD card into the card slot to
store videos and snapshots. Do not remove the SD card when
the camera is powered on.
Camera Cabling
Please follow the instructions below for cable connections.
Power Connection
To power up the camera, connect the AC24V power adaptor to the power connector of the camera and the power
outlet. Refer to the diagram and pin definition below for AC24V power connection.
Pin Definition
Or PoE supply of the camera with the following requirements for
AC24V
1 the Power Source Equipment (PSE): PoE+ IEEE802.3at, class 4,
max 17.14 W
2 GND
AC24V
3
Audio/AIarm I/O & RS-485 Connection
Please refer to the diagram and pin definition tables below for audio/alarm I/O & RS-485 connection.
Pin Definition Pin Definition
1 Audio Out 5 Alarm Out B1
2 GND (Audio I/O) 6 Alarm Out B2
RS-485 D+(Optional) 11
3 Alarm Out A1 7
RS-485 D- (Optional)
4 Alarm Out A2 8
NOTE: If the device is powered over Ethernet, make sure the PSE is connected to the network.
Connect one end of the Ethernet cable to the RJ-45 connector of the camera and plug the other end of the cable to
the network switch or PC.
NOTE: In some cases, Ethernet crossover cable might be needed when connecting the camera
directly to the PC.
NOTE: Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check
the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
IMPORTANT: We recommend operating IP cameras only in isolated networks or behind suitable
firewalls.
Initial login to the IP camera
The first time you access the IP camera, you will be asked to change your password. You must perform this
step in order to continue.
NOTE: Passwords must be at least 12 characters long, with an uppercase letter, a lowercase
letter, a numeric character and a special character ~@#$%^&*_-+=:;<>
For more information, refer to the user manual of the IP camera.
Pin Definition Pin Definition
13 GND (Alarm I/O and RS-485)
9 Alarm In 4
10 Alarm In 3 14 Audio In
Alarm In 2
12 Alarm In 1
