Martec Impact DC Smart Series Installation Manual

I m p a c t DC S m a r t S e r i e s In s t a l l a t i o n G u i d e

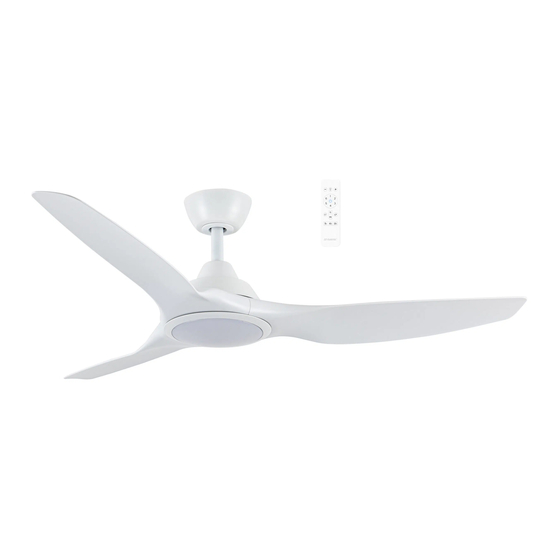

Thanks for choosing our Impact DC Smart Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan and LED Light):
MIDC1333 W Impact DC 1320mm 3 ABS Blade WIFI & Remote Control Ceiling Fan with Variable Dim 24w CCT LED Light Matt White
MIDC1333 M Impact DC 1320mm 3 ABS Blade WIFI & Remote Control Ceiling Fan with Variable Dim 24w CCT LED Light Matt Black
MIDC1333 M WN Impact DC 1320mm 3 ABS Blade WIFI & Remote Control Ceiling Fan with Variable Dim 24w CCT LED Light Matt Black/Walnut
Part List:
Qty 1x Motor assembly
Qty 1x Instruction manual
Qty 1x Mounting bracket
Qty 1x Ball/downrod assembly
Qty 1x Canopy Qty 1x
Application
Flat Surface / Ceiling
How to Assemble
Fg.1
Secure the bracket to the ceiling using screws and provided.
Ensure screws are tightened on the bracket.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
Decorative motor collar cover
Slope Ceiling up to 15°
Qty 1x
Qty 1x Screw kit
Qty 1x
Qty 3x Blades
Qty 1x Remote & Receiver
Corrugated Ceiling
Fg.2
LED light kit pan
Acrylic lampshad
Apex Ceiling
Wire to main as illustrated.
