- Page 1 Bell-206 Scale Helicopter User Manual E186...

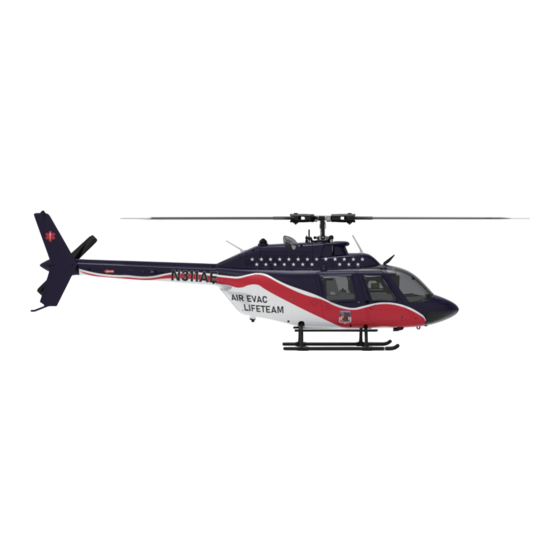

- Page 3 This model is a 1:27 scale replica of the Bell-206 helicopter, featureing highly realistic detailed appearance, cool lighting effects, andequipped with intelli- gent flight control, Optical fow positioning module,and altitude hold module. With its dual brushless motor drive, it isespecially suitable for beginners. lt can also serve as an excellentstatic display model.
- Page 4 385 mm 125 mm 290 g 375 mm 70 mm 7.4V 1200mah 25C 10-12Min 2511 1204...
- Page 5 Motors Unlock Motors Lock Power Switch(Press for seconds to power on) Turn on the remote control at the same time Accelertor/Direction joysticks Ailerons/Elevation joystick Screw Pitch Lower Visual Mode (Not available in flight) Motors Lock One-button Landing Toggle the button to the left to turn on the power (MODE2/MODE1 Toggle the rudder buttons to the left conversion)
- Page 6 Switch up to unlock Switch Down to Lock E186 How to stop the motor after it starts spinning: After the vehicle lands, the throttle rocker is in the lowest position and held for more than 3 seconds, the motor stops spinning.
- Page 7 Up-dial optical flow mode Down dial manual mode Pressing the manual mode button will turn off the optical flow flight mode, at this time the aircraft status indicator light is red and long light to lift the aircraft altitude restriction, the fastest flight speed can be up to 10 meters per second, please pay close attention to the aircraft to operate carefully.
- Page 8 Switch locked down Rudder Rudder Push button up for 2 seconds Rudder Tick to enter pitch setting 1 Power on the aircraft and bind it to the remote controller. 2 First, dial the throttle lock switch to the locked state, and then long press the pitch setting button to make two drops to enter the pitch setting.
