Summary of Contents for Eachine E130

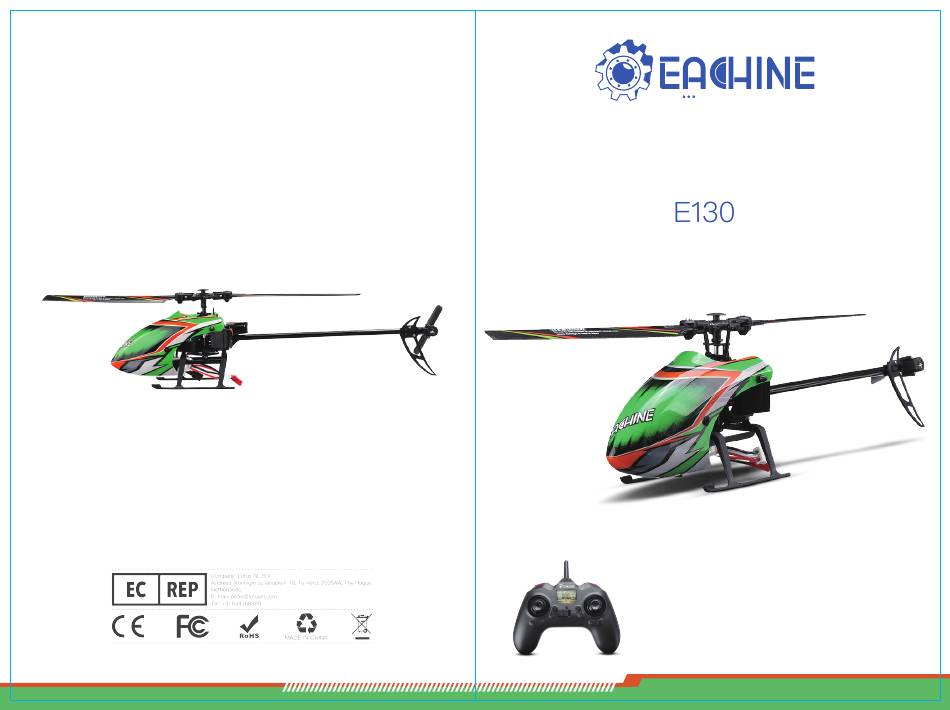

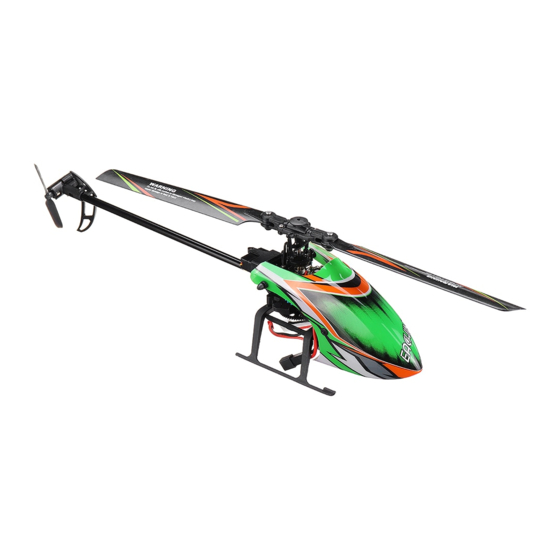

- Page 1 User Manual 4CH Single-Rotor Flybarless Helicopter 6-Axis Electronic Gyroscope To Keep Fly Stably Adopting 2.4Ghz communcation protpcol...
- Page 2 ENGLISH ITEM LIST PARTS QUANTITY PVC packaging User Manual Helicopter Transmitter Charger Battery 7.4v 700mah 20C Cross Screwdriver/Hex Wrench Main Propellerl Tail Propeller 1Set - 1 -...
-
Page 3: Table Of Contents
NOTICE TABLE OF CONTENTS All instructions, warranties and other collateral documents are subject to change ltem List at the sole discretion of our company. For up-to-date product literature, please visit Notice www.jjrc.com Warning WARNING Additional Safety Precautions and Warnings Introduction Read the ENTIRE user manual to become familiar with the features of the product before Table of Contents operating. -
Page 4: Helicopter Parameters
HELICOPTER PARAMETERS Warning 1. To ensure safety, please charge under the supervision of someone. 2. Children cannot charge alone, they should charge with the assistance of an adult. Length 345 MM 3. Please use the original standard charger of this product for charging. The charger of Height 108 MM unknown origin may cause a fre and explosion accident. - Page 5 MATCHING FOR RECEIVER AND TRANSMITTER INITIAL FLIGHT 1. Make sure the throttle joysticks is in the bottom position. Turn on the remote control. lf you are not familiar with the control of the Mo3 , take a few minutes to get familiar with The remote control will sound a long Di and the power indicator will flash.
-
Page 6: About Remote Controller
ABOUT REMOTE CONTROLLER FLIGHT BATTERY INSTALLMENT 1. Put the throttle joystick to the bottom position. 2. Turn on the transmitter. 3. Install the battery into the rack and connect it properly with the receiving power. 4. Once the battery is connected, the signal starts to blink. Keep it still and wait until the Antenna signal light stops blinking,which means the receiver has completed self-inspection and Rudder Switch... -
Page 7: Exploded View
EXPLODED VIEW Problem Cause Solution Helicopter vibrates or Damaged rotor blades Change the main rotor shakes in flight. and lateral axis blades，and lateral axis blade grips too tight Loosen the blade grips causing the movement properly. of the main rotor isn't smooth. -
Page 8: Accessory List
ACCESSORY LIST PARA NAME QUANTITY Rotor Head Set Horizontal Axis Group Rotor Clip Set Paddle Group Link Group Swash Plate Group Lower Link Group Rudder Unit Spindle Group Servo Pressure Plate Group Main Motor Unit Bearing Set Main Rack Group Big Gear Set Flight Control Motherboard Governor Group...
