Kidde NC Series Quick Installation Manual

NC Series Conventional Fire
Alarm Control Panel
Installation Guide

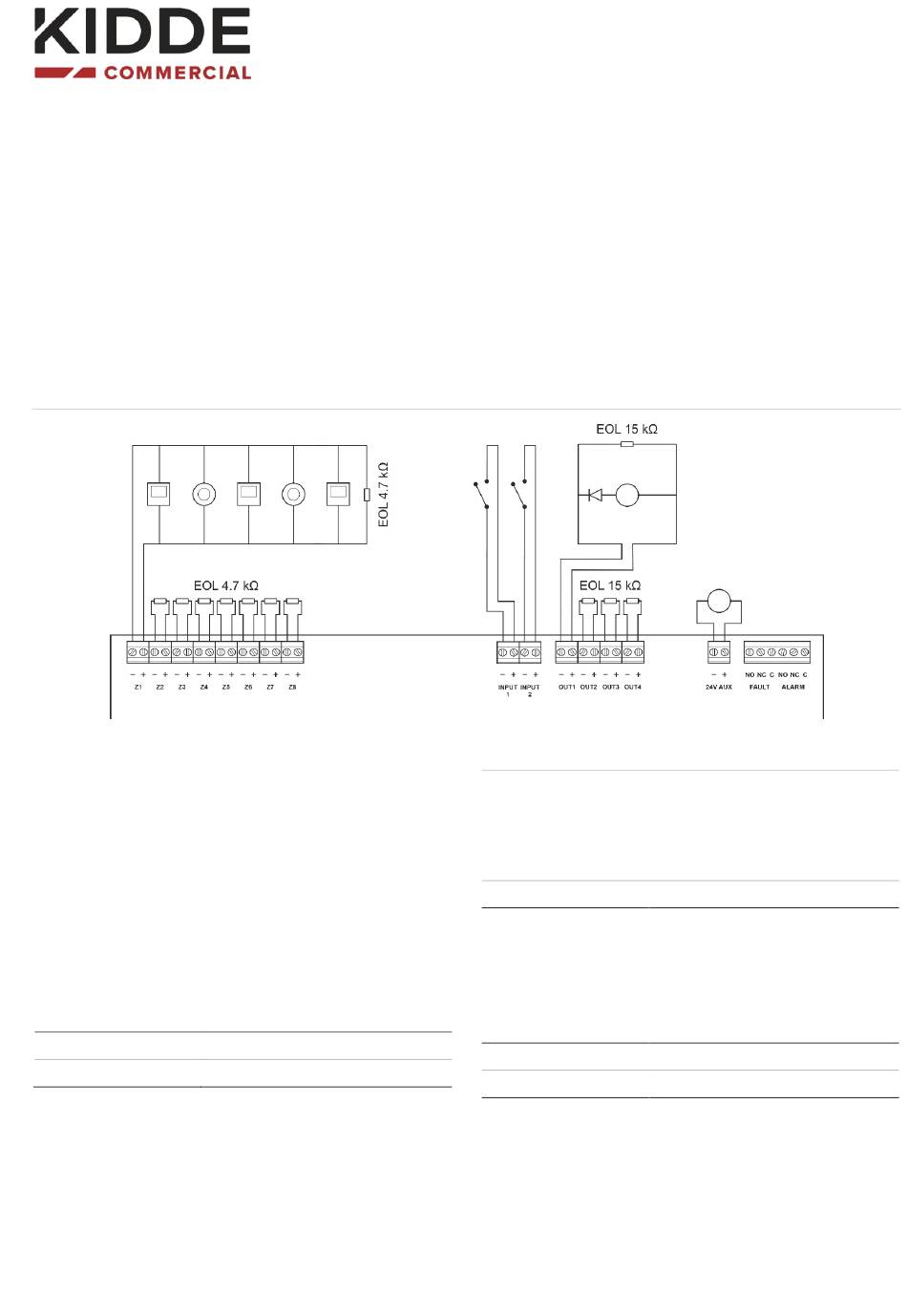

Figure 1: Zone and device connections
Overview
This document provides quick installation information for
your NC Series Conventional Fire Alarm Control Panel.
For detailed installation information, including EN 54-13,
intrinsically safe, and BS 5839-1 operating mode
requirements, see the installation manual.
Zones and zone devices
Connect zone wires and devices as shown in Figure 1.
Line resistance
Mixed zones
Automatic / manual zones
© 2024 Carrier. All rights reserved.
40 Ω max.
55 Ω max.
Quick
Detectors and manual call points per zone
Detectors [1]
NC Series
Aritech 700 Series
Kilsen KL700 Series
Ziton Z600 Series
Other detectors
Manual call points
[1] Or as defined by local standards. Maximum of 30 detectors for
NBN S 21-100 installations.
[2] Systems using these detectors are not EN 54-13 compliant.
[3] Provided that the detectors meet the zone specifications included in
the installation manual.
Manual call point resistance [1]
Mixed zone
Manual zone
[1] Resistance must be rated at 1 W min.
1 / 3 P/N BCN-xxxxxxx-EN • REV 001 • ISS 10JUN24
32 max.
20 max. [2]
20 max. [2]
32 max. [2]
32 max. [2][3]
32 max.
100 Ω
100 to 680 Ω
