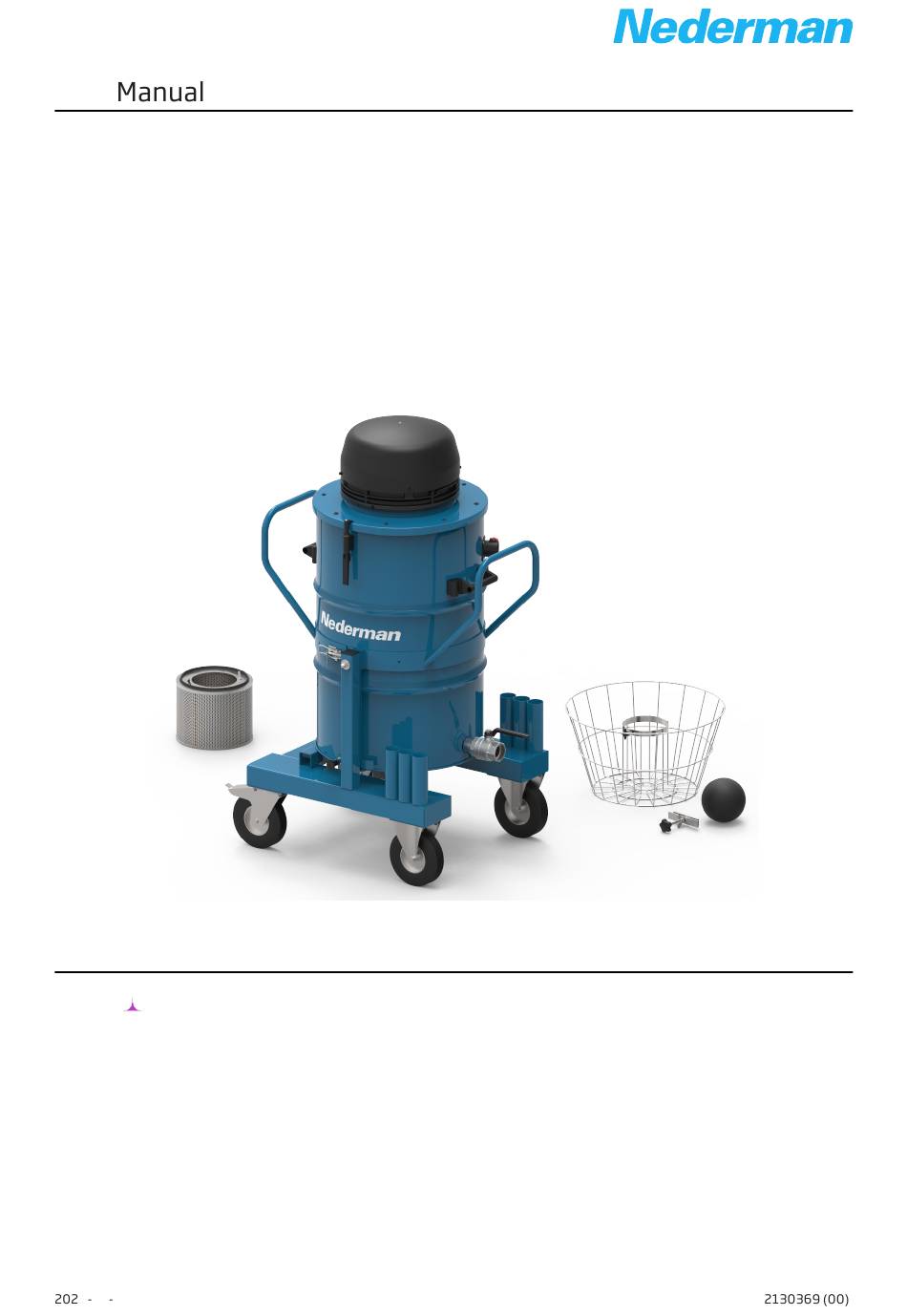

- Page 1 User Portable, Mobile & Compact Extractions Units Industrial Vacuum Cleaners 510E Original Instruction Manual 4 07 12...
- Page 2 Electrical vacuum cleaners...
- Page 3 Electrical vacuum cleaners Declaration of Conformity English Declaration of conformity Directives Standards...
- Page 4 Electrical vacuum cleaners Figures S200...
- Page 5 Electrical vacuum cleaners 30mm 30mm 30mm...
- Page 6 Electrical vacuum cleaners NEL3...
- Page 7 Electrical vacuum cleaners...
- Page 8 Electrical vacuum cleaners...
- Page 9 Electrical vacuum cleaners Match up orientation...
- Page 10 Electrical vacuum cleaners < 75 kg > 75 kg...
- Page 11 510E Table of contents...
- Page 12 WARNING! Risk of personal injury CAUTION! Risk of equipment damage NOTE! nical service and obtaining spare parts. If there are any damaged or missing parts when the product is de- livered, notify the carrier and the local Nederman rep- resentative immediately.
- Page 13 Electrical vacuum cleaners 2.1 General safety instructions WARNING! Explosion risk Table 2.1 Explanation of sign and sticker symbols used on vacuum cleaner components or with doc- umentation. Sign Description Sign Description 120psi 104F (4 Max 8 bar MAX 40˚C...
- Page 14 Electrical vacuum cleaners 3 Description 3.1 Intended use NOTE! 3.2 Technical data Table 3.1 Vacuum cleaner 14F to 105F / 32 to 140F / Table 3.2 Electric vacuum unit data, see also Figure 1 Max. air Noise Vacuum IP class Power Voltage Fre-...
- Page 15 Electrical vacuum cleaners Table 3.3 Cartridge filter data . See Figure 2 Part num- Area Dia- Length Material Filter class Max. Wash- meter (accord- temp. able ing to EN 60335-2-69/ [m2] [mm] [mm] EN 1822) [°C]...
- Page 16 Electrical vacuum cleaners Table 3.4 Filter bags , see also Figure 3 Part number Area (A) Material Filter class Max. temp. (according to EN ft2 [m2] [°C] 60335-2-69) (S50) 3.75 / . (S50) 3.75 / 0.35 (S50) 3.75 / 0.35 (S200) 6.35 / .
- Page 17 Electrical vacuum cleaners 6 Maintenance CAUTION! Risk of equipment damage WARNING! Risk of personal injury CAUTION! Risk of equipment damage 6.1 Clean the cartridge filter/filter bag NOTE!
- Page 18 Electrical vacuum cleaners 6.2 Replace the cartridge filter 6.3 Replace the filter bag NOTE! NOTE! 6.4 Clean the float ball NOTE! 6.5 Routine inspection and service Items to inspect What to look for Service VACUUM OFF VACUUM ON...
- Page 19 Electrical vacuum cleaners Items to inspect What to look for Service VACUUM ON (TOP COVER REMOVED) WARNING! Risk of personal injury VACUUM OFF (TOP AND SECONDARY COVERS REMOVED) WARNING! Risk of personal injury...
- Page 20 Electrical vacuum cleaners 7 Troubleshooting Problem Fault Solution...
- Page 21 Electrical vacuum cleaners 8 Spare Parts CAUTION! Risk of equipment damage 8.1 Ordering spare parts 9 Recycling...
- Page 22 Electrical vacuum cleaners 10 Appendix A: Service form NOTE! Items to inspect Result Repaired Replaced Replaced part number VACUUM OFF VACUUM ON VACUUM ON (TOP COVER REMOVED)
- Page 23 Electrical vacuum cleaners Items to inspect Result Repaired Replaced Replaced part number VACUUM OFF (TOP AND SECONDARY COVERS RE- MOVED) OTHER ITEMS (SPECIFY)
