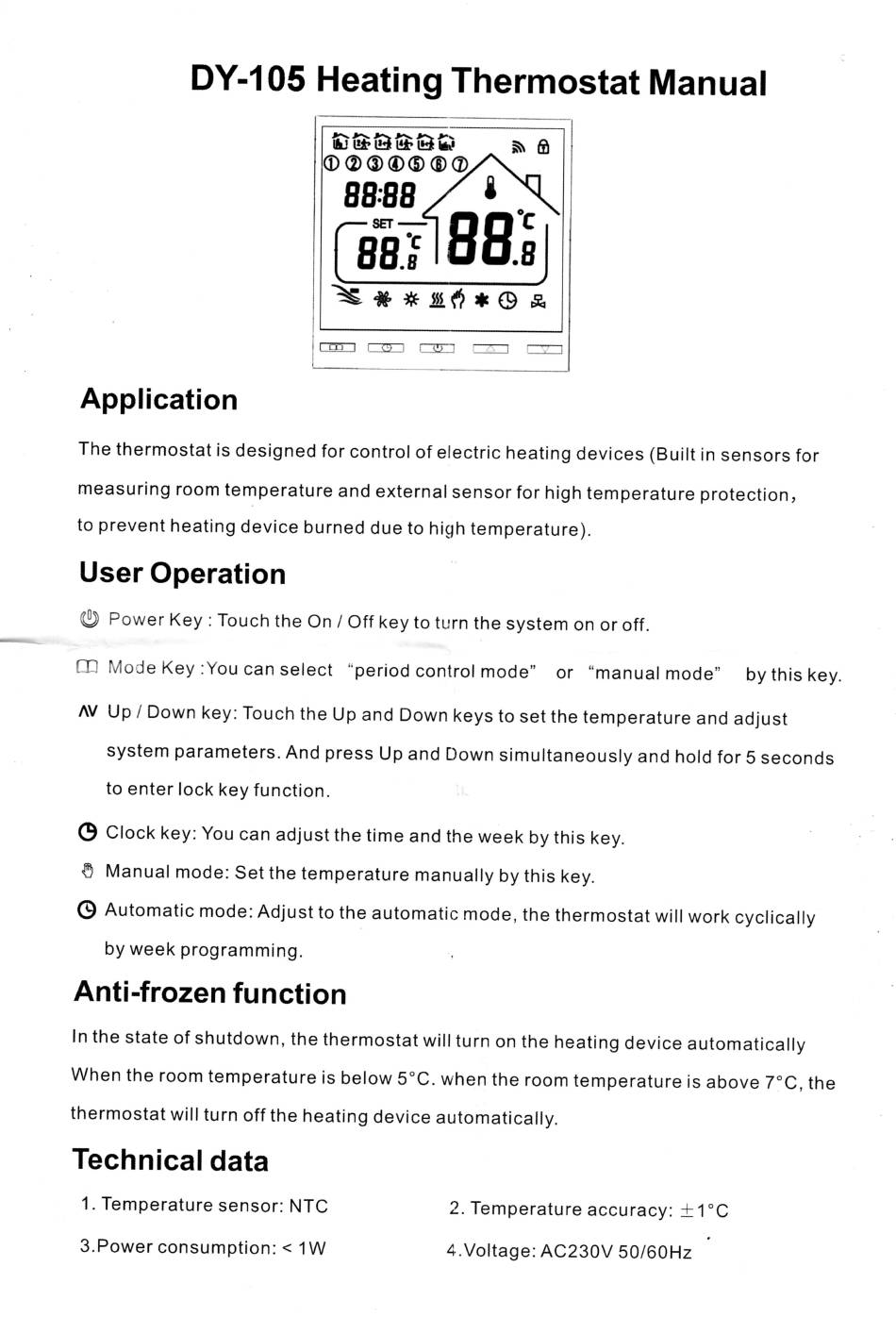

TUYA DY-105 Manual

@(Do@@o
8888
DY-I
05 Heating Thermostat Manual
4s.h h,
'\,.h,
r-\
lf,J l3F Lrs
t3ts
t!{
hr
r--rrj
r--cD--I
Application
The thermostat
is
designed
for control
of electric heating devices (Built
in sensors for
measuring
room temperature
and
external
sensor for high temperature protection,
to
prevent heating device
burned due to high
temperature).

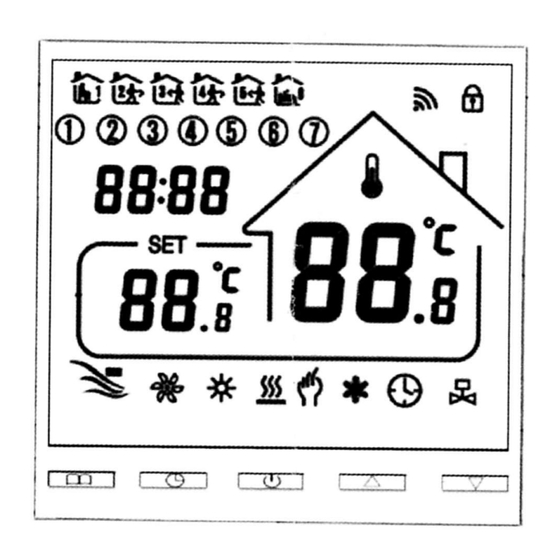

User Operation
(S
Power Key
:
Touch the
On /
Off
key to turn the system on or off.
c[J
Mode Key
:You can
select
"period control
mode"
or
"manual
mode,,
by
this
key.
Av up
/ Down key: Touch the
up
and Down keys to
setthe
temperature
and adjust
system parameters. And press
Up
and
Down
simultaneously
and hold for
s
seconds
to
enter
lock key
function.
@
Clock
key:
You can
adjust
the time
and the week
by
this
key.
0
Manual
mode: Set the
temperature manually
by
this
key.
@
Automatic mode:Adjust
to
the automatic
mode, the
thermostat will work cyclically
by
week programming
Anti-frozen function
ln
the state
of
shutdown,
the
thermostat will turn
on
the
heating device automatically
when the
room
temperature
is below
s"c.
when the
room temperature
is
above
7.c,
the
thermostat will turn
off the heating device automatically.
Technical data
1.
Temperature sensor:
NTC
3.Power consumption: <
1W
2.Temperature accuracy: +
1"C
4.Voltage: AC230V 50/G0Hz'
