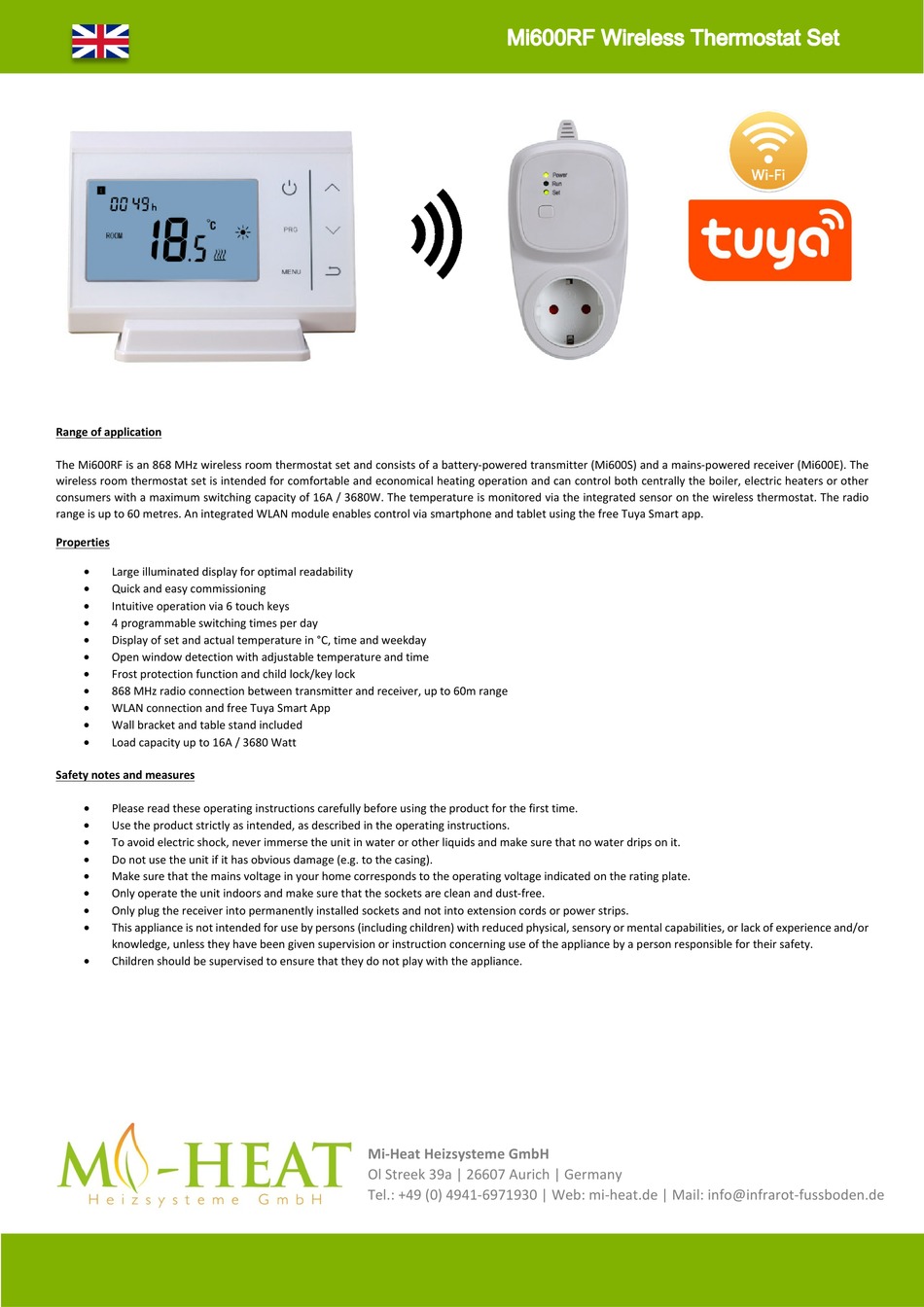

TUYA Mi600RF Quick Start Manual

Range of application

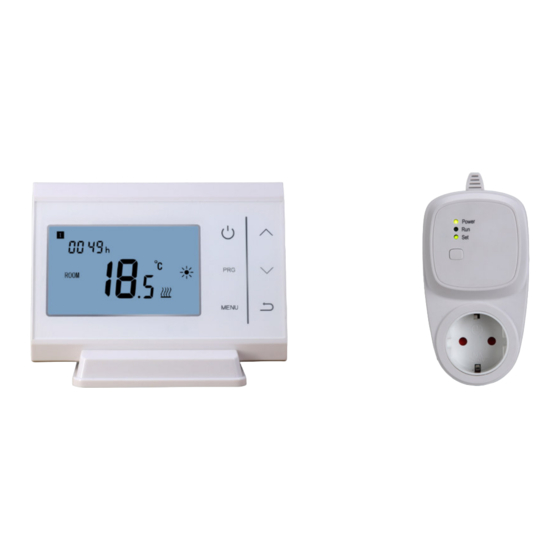

The Mi600RF is an 868 MHz wireless room thermostat set and consists of a battery-powered transmitter (Mi600S) and a mains-powered receiver (Mi600E). The
wireless room thermostat set is intended for comfortable and economical heating operation and can control both centrally the boiler, electric heaters or other
consumers with a maximum switching capacity of 16A / 3680W. The temperature is monitored via the integrated sensor on the wireless thermostat. The radio
range is up to 60 metres. An integrated WLAN module enables control via smartphone and tablet using the free Tuya Smart app.

Properties

Large illuminated display for optimal readability

Quick and easy commissioning

Intuitive operation via 6 touch keys

4 programmable switching times per day

Display of set and actual temperature in °C, time and weekday

Open window detection with adjustable temperature and time

Frost protection function and child lock/key lock

868 MHz radio connection between transmitter and receiver, up to 60m range

WLAN connection and free Tuya Smart App

Wall bracket and table stand included

Load capacity up to 16A / 3680 Watt


Safety notes and measures

Please read these operating instructions carefully before using the product for the first time.

Use the product strictly as intended, as described in the operating instructions.

To avoid electric shock, never immerse the unit in water or other liquids and make sure that no water drips on it.

Do not use the unit if it has obvious damage (e.g. to the casing).

Make sure that the mains voltage in your home corresponds to the operating voltage indicated on the rating plate.

Only operate the unit indoors and make sure that the sockets are clean and dust-free.

Only plug the receiver into permanently installed sockets and not into extension cords or power strips.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or

knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Mi-Heat Heizsysteme GmbH
Ol Streek 39a | 26607 Aurich | Germany
Tel.: +49 (0) 4941-6971930 | Web: mi-heat.de | Mail: info@infrarot-fussboden.de
