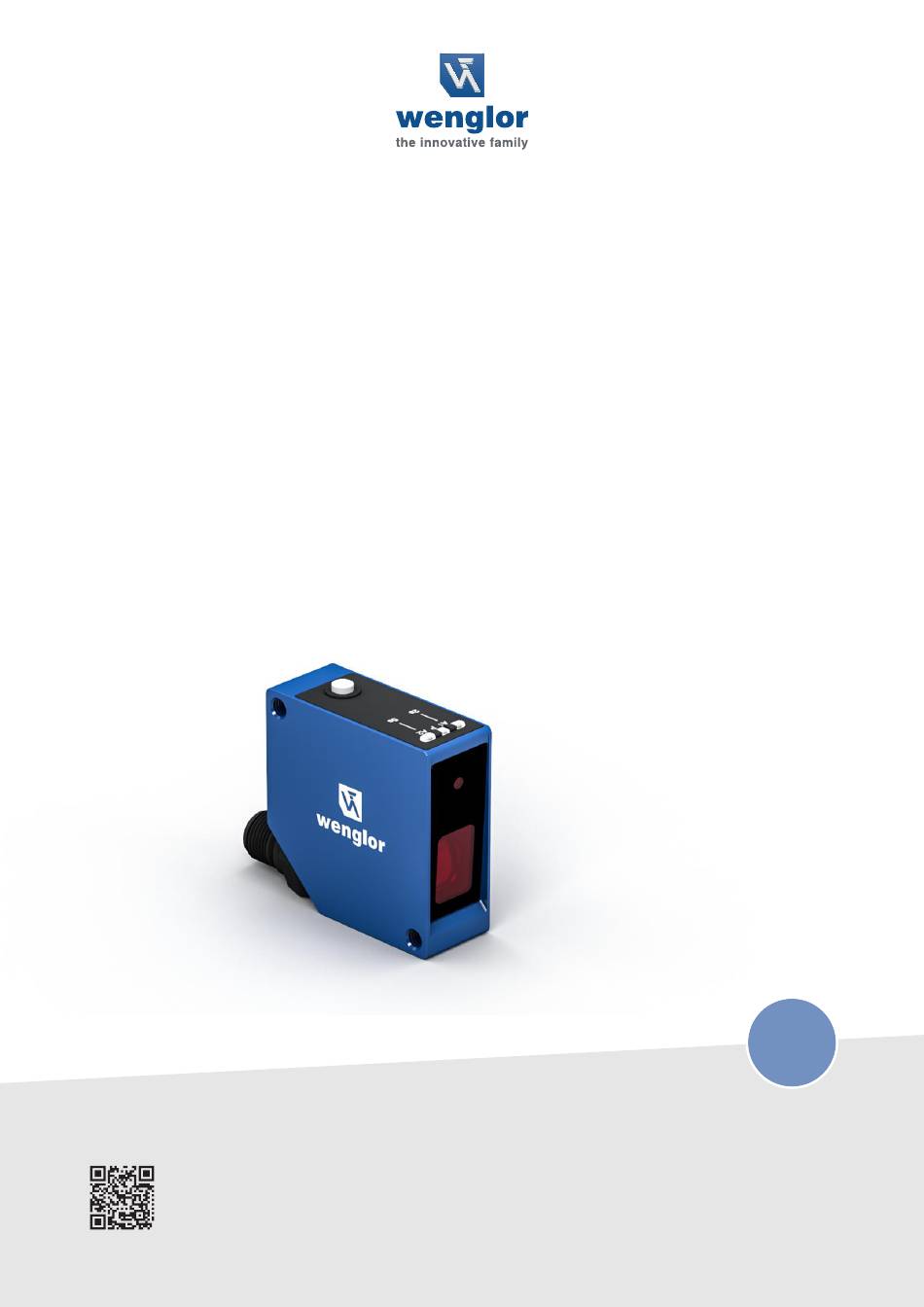

- Page 1 Operating Instructions P3PC301 Laser Distance Sensor Triangulation Translation of the original operating instructions Subject to change without notice Available as PDF file only Version 2.0 www.wenglor.com...
-
Page 2: Table Of Contents
7.4 Output Functions .................................. 24 7.5 Input Functions..................................24 7.6 Switching Point Functions (SSC1/SSC2)......................... 25 7.7 Differential and Thickness Measurement ......................... 28 7.8 Condition Monitoring Functions ............................31 7.8.1 Status Message Function ............................31 Table of Contents | P3PC301 ‒ Laser Distance Sensor Triangulation... - Page 3 9.1.1 Laser Class 2 Licensing ............................36 9.1.2 Calling Up the Calibration Protocol ........................37 10 Maintenance Instructions ............................. 38 11 Proper Disposal ................................39 12 Declarations of Conformity............................40 Table of Contents | P3PC301 ‒ Laser Distance Sensor Triangulation...
-
Page 4: General
The safety precautions and warnings are laid out in accordance with the following principle: SIGNAL WORD Type and source of danger! Possible consequences in the event that the hazard is disregarded. à Measures for averting the hazard. 1 ‒ General | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 5: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating in- structions unless wenglor was verifiably aware of such errors at the point in time at which the operat- ing instructions were prepared. -
Page 6: Copyrights
• All rights are reserved by wenglor. • Commercial reproduction or any other commercial use of the provided content and information, in particular graphics and images, is not permitted without previous written consent from wenglor. 1 ‒ General | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 7: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may be used only with accessories supplied or approved by wenglor, or in combination with approved products. A list of approved accessories and combination products can be found at www.wenglor.com on the product detail page. -
Page 8: Personnel Qualifications
Read the operating instructions carefully before using the product. Protect the sensor against contamination and mechanical influences. Laser Warnings Laser Class 1 (EN 60825-1) LASER CLASS 1 Applicable standards and safety regulations must EN 60825-1:2014 be observed. 2 ‒ For Your Safety | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 9: Approvals And Protection Class
Approvals and Protection Class IND. CONT. EQ 72HL / E189727 For use in class 2 circuits 2 ‒ For Your Safety | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 10: Technical Data
Aluminum, anodised Plastic, ABS Optic Cover Plastic, PMMA Degree of Protection IP67 Connection M12 × 1; 4/5-pin Output Functions Output Technical Safety Data MTTFd (EN ISO 13849-1) 720.35 a 3 ‒ Technical Data | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 11: Light Spot Diameter
Housing Dimensions ① = emitted light ② = receiver diode M4 screw = 1 Nm M5 screw = 2 Nm Dimensions specified in mm (1 mm = 0.03937") 3 ‒ Technical Data | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 12: Control Panel
68 = supply voltage indicator Complementary Products wenglor offers you the right connection and mounting technology as well as other accessories for your product. You can find this at www.wenglor.com on the product details page at the bottom. Scope of Delivery •... -
Page 13: Transport And Storage
• Protect the product against exposure to direct sunlight. NOTICE Risk of property damage in case of improper storage! The product may be damaged. à Storage instructions must be complied with. 4 ‒ Transport and Storage | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 14: Installation And Electrical Connection
à Comply with installation instructions. CAUTION Risk of personal injury or property damage during installation! Personal injury and damage to the product may occur. à Ensure a safe installation environment. 5 ‒ Installation and Electrical Connection | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 15: Adjustment
With holes, blind holes and edges in the surface of moving parts, the sensor must be positioned so that the edge does not obscure the laser dot. 5 ‒ Installation and Electrical Connection | P3PC301 ‒ Laser Distance Sensor Triangulation... - Page 16 Measuring Objects with Evenly Positioned, Colored Edges When oriented correctly, the influence on measuring accuracy is minimal. When oriented incorrectly, the different reflectivity of the various colors will result in deviations. 5 ‒ Installation and Electrical Connection | P3PC301 ‒ Laser Distance Sensor Triangulation...
-
Page 17: Electrical Connection
Risk of personal injury or property damage due to electric current. Voltage-conducting parts may cause personal injury or damage to equipment. à The electric device may be connected by appropriately qualified personnel only. 5 ‒ Installation and Electrical Connection | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 18: Diagnosis
O are not working properly Switching status indica- Switching outputs active tor A1, A2 Switching outputs not active Localization Localization function active = Not lit = Permanently lit = Flashing 5 ‒ Installation and Electrical Connection | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 19: Troubleshooting
Risk of personal injury or property damage in case of non-compliance! The system’s safety function is disabled. Personal injury and damage to equipment may occur. à Required action as specified in case of fault. 5 ‒ Installation and Electrical Connection | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 20: Settings
If there is an error during teach-in preventing it from being carried out, this is indicated by a red LED. 6 ‒ Settings | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 21: Function Description
This function can be used to suppress interfering signals, such as those produced by a glass disk, for instance. Min. distance: working range Max. distance: working range Note! 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 22: Laser Class 2 Activation
When detecting very dark objects at fast speeds or in a harsh environment, it can be helpful to increase the laser output, which then means that the sensor is laser class 2. For security rea- sons, licensing is required for this. 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 23: Input/Output Functions (E/A)
The warning output switches if one of the assigned warnings occurs; see table Status messages [} 32]. Laser-off input See E3 for an explanation Teach-in input See E3 for an explanation 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 24: Output Functions
Function Possible settings Default Input mode Supply Voltage Active Supply voltage ac- tive Function is triggered as soon as supply voltage is applied to the input. Supply Voltage Inactive 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 25: Switching Point Functions (Ssc1/Ssc2)
Switching point Object Far switching point Jump Detection In this mode, there is no switch to an absolute measured value, but rather to a measured value jump occurring between 2 measurements. 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... - Page 26 A small hysteresis is recommended so that flat objects can be detected against a background. A larger hysteresis is recommended to ensure stable detection when conditions are variable. 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation...
- Page 27 1…256 cycles Jump pulse duration In teach-in mode, jump detection 0 = hold The output remains active until the next jump in the opposite direction has been detected. 1…10,000 ms 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation...
-
Page 28: Differential And Thickness Measurement
In addition, the calculated difference or thickness output as absolute value via IO-Link. Mechanical Layout Differential Measurement Sensor Sensor alignment offset Sensor Main Secondary Reference object Reference thickness Thickness Measurement Sensor distance Sensor Sensor Ref. object Secondary Main Reference thickness 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... - Page 29 The connections of the adapter can be extended with connection cables. Please note that 5-pin connec- tion cables must be used for the connections of the sensors. Direct Wiring 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation...
- Page 30 Teach-in key, press and hold this key for 10 seconds until both LEDs begin to flash. Then release the button. The LEDs flash twice briefly as confirmation. The sensors are now referenced. 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation...
-
Page 31: Condition Monitoring Functions
The sensor provides various status messages. Due to the process data structure, four status messages can be transmitted as individual process data. These parameters can be used to set the status messages that are transmitted via the process data. 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 32: Warning/Error Output Function
If a measured value is specified, the sensor behaves as if the specified measured value corresponds to the actual measured value. This means that the behavior of the outputs and status messages is simulated according to the specified measured value. 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation... - Page 33 INFORMATION Output A1 is used for IO-Link communication in this function and cannot be simulated. Simulation mode ends automatically as soon as the power supply is interrupted. 7 ‒ Function Description | P3PC301 ‒ Laser Distance Sensor Triangulation...
-
Page 34: Io-Link
The process data transmit cyclical data and condition moni- toring. To this end, the sensor is connected to a suitable IO-Link master (see product detail page/complementary products). The interface protocol and the IODD can be found at www.wenglor.com in the download area for the respective product. Parameters The parameters that can be configured via IO-Link are given in the functional description in the section Function description [} 21]. - Page 35 Device temperature too high: Remove heat source 0x4210 Warning IO-Link Device temperature too low: Isolate device 0x4220 Warning IO-Link Temperature error: Overload 0x4000 Error IO-Link Supply voltage too low – check tolerances 0x5111 Warning IO-Link 8 ‒ IO-Link | P3PC301 ‒ Laser Distance Sensor Triangulation...
-
Page 36: Wteach2 Configuration Software
.3pk is saved. This file must be sent when ordering the license. wenglor will then provide the license key. This is sent in the form of a corresponding file with the exten- sion .p3l. To carry out the licensing, the “Read in License key” button must be pressed in the dialog window. -
Page 37: Calling Up The Calibration Protocol
Document was created electronically and thus valid without signature Inspector: wenglor Data: 06.04.2023 A window opens to select the location for saving the PDF document. After selection and confirmation, the document is saved accordingly. 9 ‒ wTeach2 Configuration Software | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 38: Maintenance Instructions
Cleaning and inspection of the plug connections at regular intervals are advisable. Do not clean the product with solvents or cleaning agents that could damage the product. The product must be protected against contamination during initial start-up. 10 ‒ Maintenance Instructions | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 39: Proper Disposal
Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 11 ‒ Proper Disposal | P3PC301 ‒ Laser Distance Sensor Triangulation... -
Page 40: Declarations Of Conformity
Declarations of Conformity Declarations of conformity can be found on our website at www.wenglor.com in the product’s separate download area. 12 ‒ Declarations of Conformity | P3PC301 ‒ Laser Distance Sensor Triangulation...
